TRASSIR PC Server 8800R/128

Technical specifications

Number of HDD:

8

Bitrate (Mb/sec):

720

Power supply:

AC 220 V

Net Weight (kg):

13.5

Dimensions (mm):

437 x 647 x 89

Power consumption, Watt:

800

Working temperature, C°:

10...30ºС

Network interfaces:

2
Overview

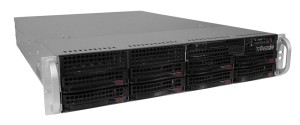

TRASSIR PC Server 8800R / 128-A5-S INT

Rack (2 U, 19 "rack) IP-video recorder is designed for up to 128 IP cameras. Equipped with two RJ-45 Gigabit network ports,  D-SUB (VGA) video outputs, DVI-D, DisplayPort, 8 SATA interfaces for HDD 3.5 " of any capacity, five USB 3.0, one USB 3.1 on the rear panel, PS / 2 for mouse and keyboard, audio in, audio out. Supports H.265, H.265 +, H.264, MPEG4, MJPEG codecs (depending on the IP camera).


Equipment:


  • Video recorder (assembled and packaged).

  • Keyboard (PS / 2)

  • Mouse (USB)

  • Power cord

  • Video recorder rack mounting rails kit

  • Product data sheet

  • Warranty card


Basics:

PC Server series IP video recorders support video analytic modules based on neural networks. The use of neural network technologies has significantly reduced the number of false positives.
