TR-D2223WDIR7 2.7-13.5

Technical specifications

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

RWDR 120 dB

Resolution:

2MP

Form factor:

Bullet

Wi-Fi:

-

Maximum video output resolution:

1920x1080

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

8

Power supply:

12V DC

Lens (mm):

2.7 - 13.5

Sensitivity(Lux):

0,002

Local storage:

microSD up to 128 GB

Ingress protection:

IP67

Lightning protection:

TVS 4000V

Dimensions (mm):

233.4×77.5×80.0

Power consumption, Watt:

10.5

Working temperature, C°:

-40°C ... +60°C

Day/Night Mode:

Mechanic IR-filter

Network interfaces:

RJ-45

Class PoE :

802.3af/at

Video compression:

H.265, H.265+, H.264
Overview

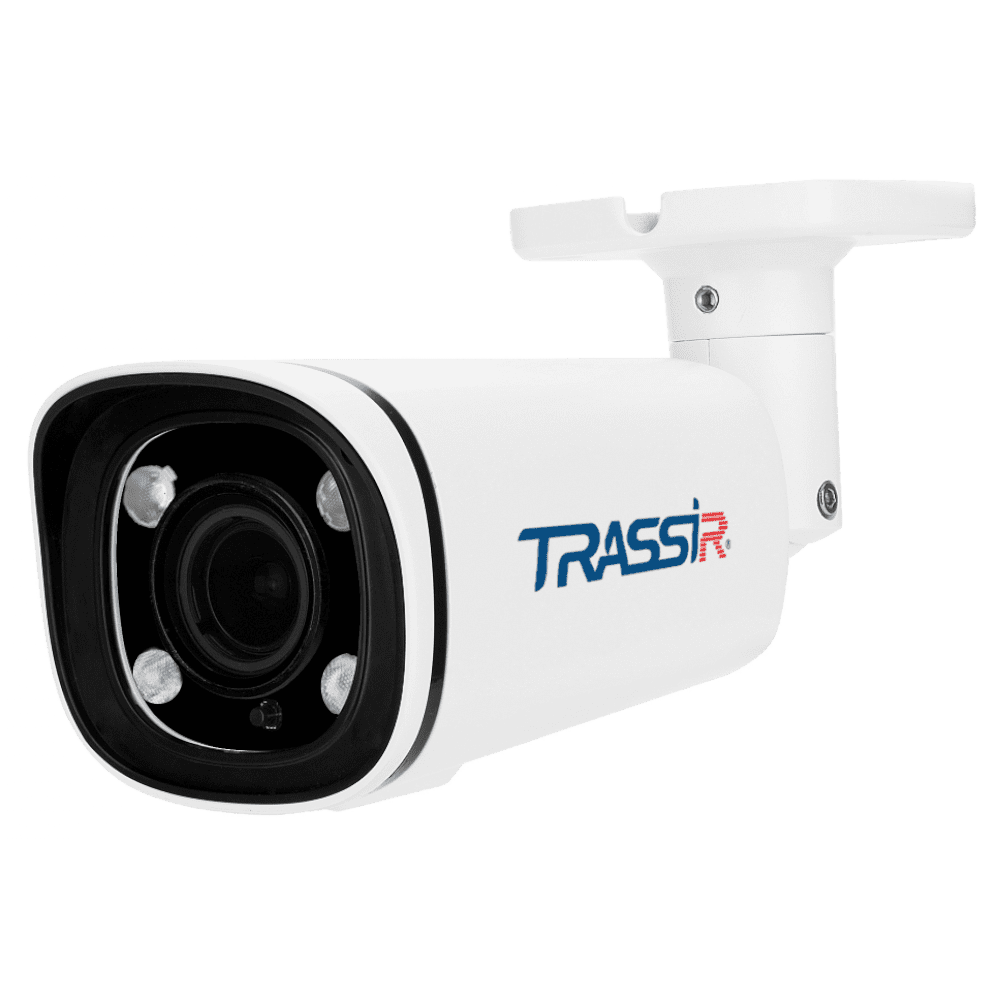

TRASSIR TR-D2223WDIR7

2 megapixel (1920 × 1080) IP-camera is designed taking into account the conditions of round-the-clock and year-round outdoor operation: the housing meets the requirements of the IP67 protection against moisture and dust, IK08 against mechanical stress, the operating temperature range is -40 ° C ... +60 ° C , lightning protection TVS 4000V, range of integrated IR illumination - 70 m.



Functionality:

WDR 120 dB - reducing the influence of difficult light conditions on image quality by double scanning with different shutter speeds (within 120 dB) and then combining the two frames into the final balanced in terms of brightness.
3D DNR - noise reduction, including spatial noise
BLC - Backlight Compensation.
HLC - local exposure masking.
Defog - neutralization of blur introduced by fog, smoke, dusting of the scene by increasing the contrast.


Basics:

TRASSIR TR-D2223WDIR7 supports day / night with ICR, compresses video with H.265, H.265 + and H.264 codecs, broadcasts data at 25 fps simultaneously with two streams - to reduce the load on the network / server. Equipped with a 2.7 ~ 13.5 mm variable focal length lens, horizontal viewing angles - 107-36 °, vertical - 56-20 °.

Interfaces: RJ-45 with PoE support, audio output and built-in microphone, power supply connector (not included), microSD card slot up to 128 GB. Power supply - DC 12V / PoE. Power - no more than 10.5 W. Dimensions - 233.4 × 77.5 × 80.0 mm, net weight - 636 g.
