TR-D3223WDZIR3 2.7-13.5
Technical specifications
Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
RWDR 120 dBFrame rate:
25IR range:
30mResolution:
2MPForm factor:
DomeWi-Fi:
-Maximum video output resolution:
1920x1080Image sensor:
1/2.8" CMOSBitrate (Mb/sec):
8Power supply:
12V DCLens (mm):
2.7 - 13.5Sensitivity(Lux):
0,003Local storage:
microSD up to 128 GBIngress protection:
IP67IR:
YesCase material:
MetalLightning protection:
TVS 4000VDimensions (mm):
116.00×90.91Power consumption, Watt:
8.8Working temperature, C°:
-40°C ... +60°CDay/Night Mode:
Mechanic IR-filterNetwork interfaces:
RJ-45Class PoE :
802.3af/atVideo compression:
H.265, H.265+, H.264Overview

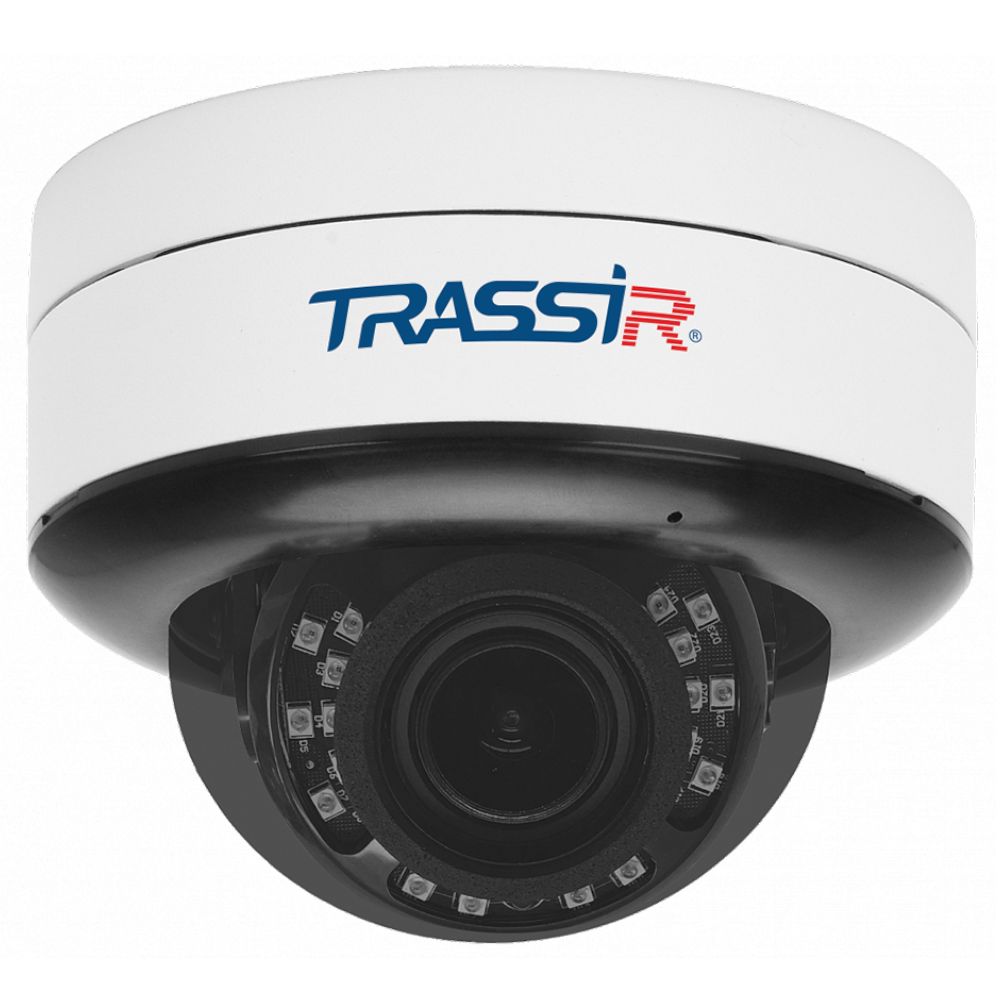

TRASSIR TR-D3223WDZIR3
2 megapixel (1920 × 1080) IP-camera is supplied in a housing that meets the requirements of the standard for protection of the enclosure against dust and moisture IP66, against mechanical influences - according to IK10, which in combination with an operating temperature range of -40 ° C ... +60 °C, lightning protection TVS 4000V and built-in IR with a range of 30 m ensures stable operation of the device on the street, regardless of the time of the year, day and entry into the visibility zone of the guard. Equipped with a 2.7 ~ 13.5mm motorized lens - for near-instant image scaling. Viewing angles: horizontal - 96.6 ° ~ 29 °, vertical - 52.2 ° ~ 16.3 °.
Functionality:
Basics:
TRASSIR TR-D3223WDZIR3 supports day / night mode with ICR, compresses video with H.265, H.265 + and H.264 codecs, broadcasts data at 25 fps simultaneously with two streams - to reduce the load on the network / server.
The interfaces are represented by an RJ-45 network port with support for power over twisted pair, audio in / out and a built-in microphone, a connector for a power supply (not included in the package), a slot for a microSD card with a capacity of up to 128 GB. Power supply - DC 12V / PoE. In the maximum load mode, the power of the camera does not exceed 8.8 W. Dimensions - Ø116.00 × 90.91 mm, net weight - 520 g.
2 megapixel (1920 × 1080) IP-camera is supplied in a housing that meets the requirements of the standard for protection of the enclosure against dust and moisture IP66, against mechanical influences - according to IK10, which in combination with an operating temperature range of -40 ° C ... +60 °C, lightning protection TVS 4000V and built-in IR with a range of 30 m ensures stable operation of the device on the street, regardless of the time of the year, day and entry into the visibility zone of the guard. Equipped with a 2.7 ~ 13.5mm motorized lens - for near-instant image scaling. Viewing angles: horizontal - 96.6 ° ~ 29 °, vertical - 52.2 ° ~ 16.3 °.
Functionality:
- - WDR 120 dB - double scanning with different shutter speeds (within 120 dB) and subsequent convergence of two frames into one balanced in terms of brightness, to minimize the effect of changes in the level of illumination on the picture quality.
- - 3D DNR - noise reduction.
- - BLC - backlight compensation.
- - HLC - local exposure masking.
Basics:
TRASSIR TR-D3223WDZIR3 supports day / night mode with ICR, compresses video with H.265, H.265 + and H.264 codecs, broadcasts data at 25 fps simultaneously with two streams - to reduce the load on the network / server.
The interfaces are represented by an RJ-45 network port with support for power over twisted pair, audio in / out and a built-in microphone, a connector for a power supply (not included in the package), a slot for a microSD card with a capacity of up to 128 GB. Power supply - DC 12V / PoE. In the maximum load mode, the power of the camera does not exceed 8.8 W. Dimensions - Ø116.00 × 90.91 mm, net weight - 520 g.
Documentation
TR-D3223WDZIR3_passport_en.pdf
