TR-D4B6 v2 2.7-13.5

Book A Demo How To Buy

Technical specifications

WDR:

DWDR 105 dB

IR range:

35m

Corridor mode:

Yes

Resolution:

4MP

Form factor:

Bullet

Wi-Fi:

Maximum video output resolution:

2560x1440

Image sensor:

1/3" CMOS

Bitrate (Mb/sec):

Power supply:

DC 12 V, PoE

Lens (mm):

2.7 - 13.5

Net Weight (kg):

0.56

Sensitivity(Lux):

0,003

Ingress protection:

IP67

Dimensions (mm):

243.6x86.4x92

Power consumption, Watt:

Working temperature, C°:

-40…+60

Day/Night Mode:

Mechanic IR-filter

Network interfaces:

RJ-45

Overview

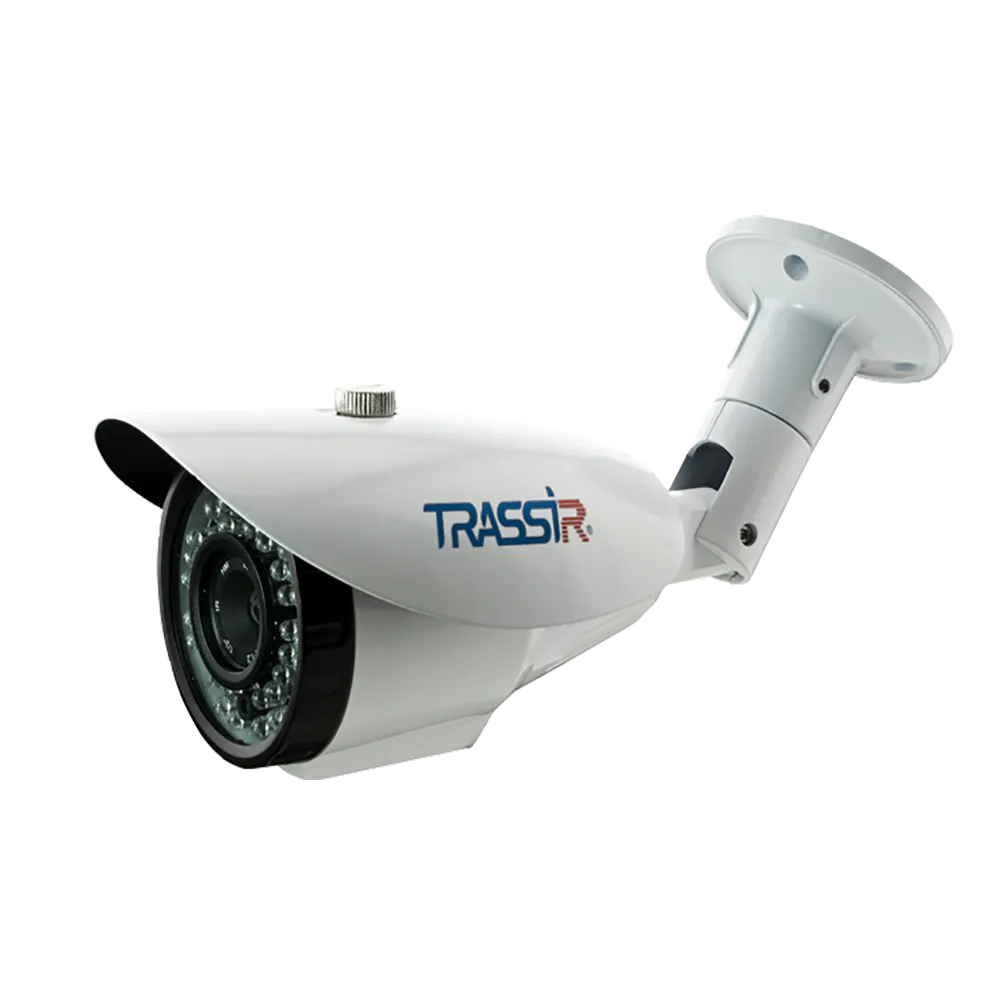

TRASSIR TR-D4B6 v2 (2.7-13.5 mm)

4 MP (2560 × 1440) IP-camera adapted for outdoor use at any time of the year - under the direct influence of precipitation: the metal case is protected from dust and moisture according to the IP67 standard, the operating temperature range is –40 ° C ... +60 ° C, provided lightning protection TVS 4000 V.

Functionality:

- Detection of people, movement, crossing of virtual lines, intrusion into prohibited areas and exiting from the area.
- WDR 105 dB - Eliminates the effect of changes in the level of illumination on the picture quality.
- 3D DNR - Noise Reduction.
- Corridor mode (shooting in vertical resolution).
- Defog - elimination of blur caused by fog or smoke in the scene.
- BLC - backlight correction.
- Day / night mode with mechanical IR cut filter.

Basics:

TR-D4B6 v2 (2.7-13.5 mm) is built on a 1/3 "progressive scan CMOS sensor, 0.003 lux sensitivity at F / 1.3. Equipped with a 2.7 ~ 13.5 mm variable focal length lens, 93 ° ~ horizontal field of view 28 °, vertical - 50 ° ~ 16 °. For compression, H.265 +, H.265 and H.264 codecs are provided, for night time surveillance - IR illumination with a range of 35 m. Broadcast speed - 25 fps. Bit rate - 8 Mbps / sec. Power supply - DC 12 V or PoE. Maximum power consumption - 6.2 W. Size - 243.6 × 92.0 × 86.4 mm. Weight - 560 g. Case material - metal.

Documentation

TR-D4B6v2 passport (eng).pdf
