TR-D4D5 v2 3.6

Book A Demo How To Buy

Technical specifications

WDR:

DWDR 105 dB

IR range:

15m

Corridor mode:

Yes

Resolution:

4MP

Form factor:

Dome

Wi-Fi:

Maximum video output resolution:

2560x1440

Image sensor:

1/2.7" CMOS

Bitrate (Mb/sec):

Power supply:

DC 12 V, PoE

Lens (mm):

3.6

Net Weight (kg):

0.295

Sensitivity(Lux):

0,005

Ingress protection:

IP66

Dimensions (mm):

Ø95x63

Power consumption, Watt:

6.8

Working temperature, C°:

-40…+60

Day/Night Mode:

Mechanic IR-filter

Network interfaces:

RJ-45

Overview

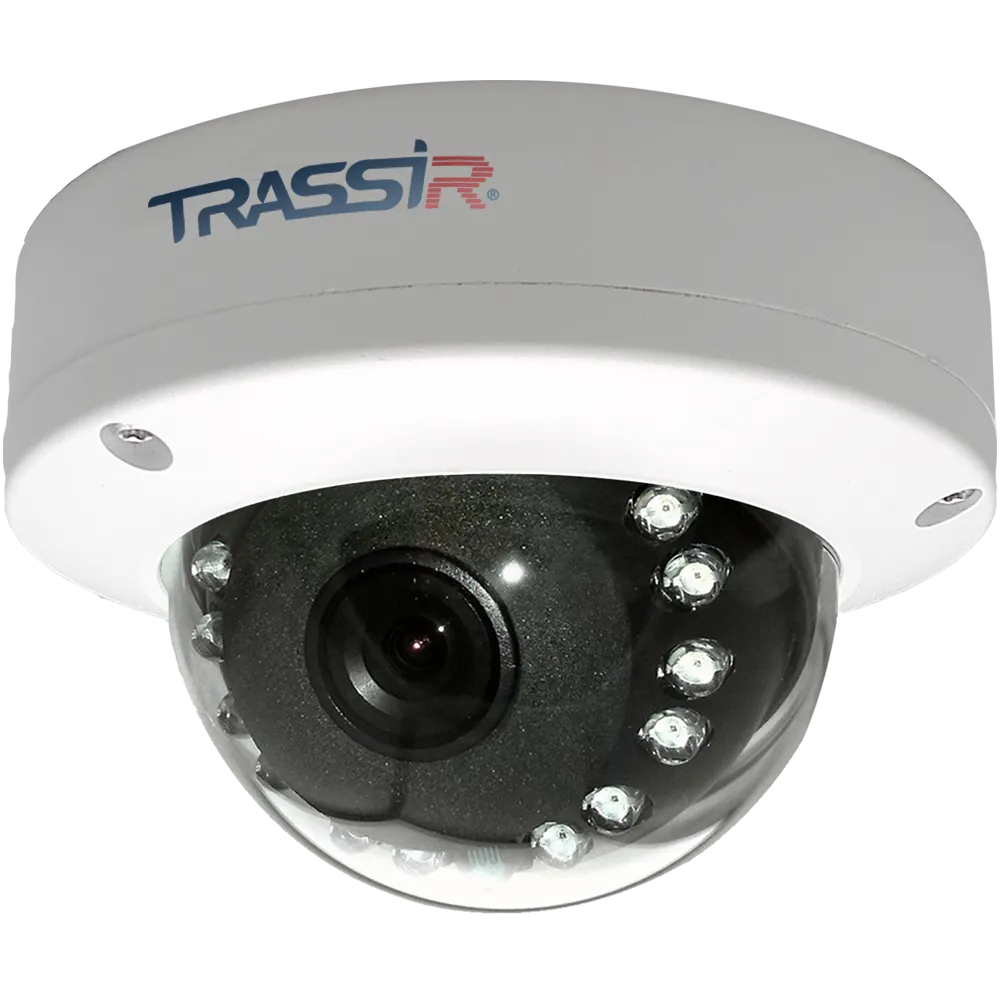

TRASSIR TR-D4D5 v2 (3.6 mm)

4 MP (2560 × 1440) IP-camera adapted for outdoor use, including places of direct access, at any time of the year: supplied in a housing protected from dust and moisture according to IP66, from mechanical impact - IK10, operating temperatures from -40 ° C ... +60 ° C, lightning protection - TVS 4000 V.

Functionality:

- Detection of people, movement, crossing of virtual lines, intrusion into prohibited areas and exiting from the area.
- IR illumination with a range of 15 m.
- WDR 105 dB - Eliminates the effect of fluctuations in the level of illumination on the picture quality.
- 3D DNR - Noise Reduction.
- Corridor mode (vertically oriented video).
- Defog - contrast enhancement to neutralize the effect of fog and smoke.
- BLC - Backlight Compensation.
- Day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor to increase its sensitivity.
- Compression of H.265 +, H.265 and H.264.
- Broadcast speed - 25 fps. Bitrate - 8 Mbps.

Basics:

TR-D4D5 v2 (3.6 mm) is built on a 1/3 "CMOS sensor, 0.005 lux sensitivity. Equipped with a 3.6 mm fixed focal length lens, horizontal field of view 94 °, vertical field of view - 50 °. Power supply - DC 12V or PoE Maximum power consumption - 2.9 W. Size - Ø95 × 63 mm Weight - 295 g Case material - metal.

Documentation

TR-D4D5v2 passport (eng).pdf
