TR-D2123IR6 v6 2.7-13.5

Technical Specifications

Audio:

audio in/out 1/1

WDR:

WDR (120 dB)

Maximum video output resolution:

1920x1080

Image sensor:

1/2.7" CMOS

Bitrate (Mb/sec):

8

Power supply:

DC 12 V, PoE

Lens (mm):

2.7-13.5

Weight Net (kg):

0.635

Sensitivity:

0,003

Ingress protection:

IP67

Dimensions (mm):

234.2x77.3x73.2

Power consumption, Watt:

5.8

Working temperature, C°:

-40…+60

Day/Night Mode:

Mechanic IR-filter

Network interfaces:

RJ-45
Overview

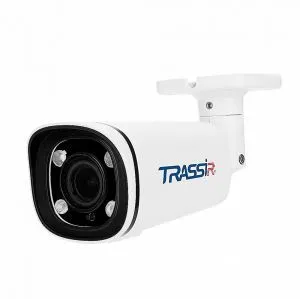

TRASSIR TR-D2123IR6 v6 (2.7-13.5 mm)

Impact-resistant 2 Mp (1920 × 1080) IP-camera for outdoor use at any time of the year is supplied in a metal case, protected from moisture and dust according to IP67, from mechanical influences - IK08, stably operates in the temperature range -40 ° C ... +60 ° C. Lightning protection TVS 4000 V is provided.


Functionality:

  • - Software detection of movement and people.
  • - Detection of crossing the virtual line.
  • - Area control (detection of intrusion / exit from the zone).
  • - IR illumination with a range of 60 m.
  • - WDR 120 dB - minimizes the effect of different contrast lighting on image quality.
  • - 3D DNR - spatial noise reduction.
  • - Support for shooting in vertical resolution (corridor mode) with an aspect ratio of 9:16.
  • - Defog - Increases the contrast to eliminate the effect of fog or smoke in the scene.
  • - BLC - Backlight Compensation.
  • - Day / night mode with ICR, with sufficient illumination blocking IR rays (in the dark it is shifted to increase the sensitivity of the matrix and the backlight).

Basics:

TR-D2123IR6 v6 (2.7-13.5 mm) is equipped with a 2.7 ~ 13.5 mm variable focal length lens, horizontal field of view 100 ° ~ 28 °, vertical field of view - 56 ° ~ 15 °. Equipped with an RJ-45 network port, a microSD slot with a capacity of up to 128 MB, a power connector. Power Supply - 12V DC or PoE. The maximum power consumption is 5.8 W. Dimensions - 234.2 × 77.3 × 73.2 mm. Weight - 635 g.
