TR-D2B5-noPOE v2 3.6

Technical Specifications

WDR:

WDR (105 dB)

Maximum video output resolution:

1920x1080

Image sensor:

1/2.9" CMOS

Bitrate (Mb/sec):

8

Power supply:

DC 12 V

Lens (mm):

3.6

Weight Net (kg):

0.33

Sensitivity:

0,005

Ingress protection:

IP67

Dimensions (mm):

207.6x76.5x86

Power consumption, Watt:

3.3

Working temperature, C°:

-40…+60

Day/Night Mode:

Mechanic IR-filter

Network interfaces:

RJ-45
Overview

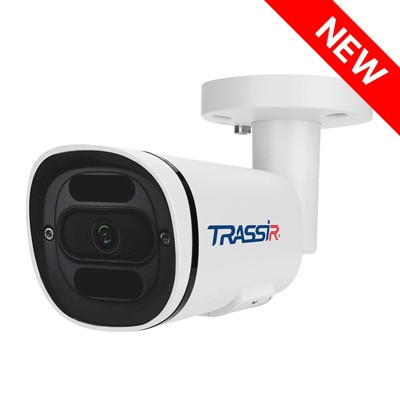

TRASSIR TR-D2B5-noPOE v2 (3.6 mm)

2 MP (1920 × 1080) IP-camera is adapted for outdoor use at any time of the year or day - under the direct influence of precipitation: protection of the case against dust and moisture corresponds to IP67, operating temperatures - –40 ° C ... +60 ° C, lightning protection - TVS 4000 V, integrated IR illumination range - 30 m.


Functionality:

  • - WDR 105 dB - the selection of the optimal exposure for light conditions to minimize the disadvantages caused by different contrast lighting.
  • - 3D DNR - spatial noise reduction.
  • - Day / night mode with ICR: in sufficient light, the filter cuts off IR rays, normalizing color rendition, and in the dark it is mechanically shifted away from the matrix to increase its sensitivity and backlight operation.
  • - Broadcast speed - 25 frames per second.
  • - Compression of H.265 + and H.264 +, H.265 and H.264.
  • - Corridor mode - shooting in vertically oriented resolution.
  • - Defog - enhances the contrast to eliminate the effect of fog or smoke in the scene.
  • - BLC - Back Light Compensation.
  • - Video analytics: motion and people detection, virtual line crossing detection, zone intrusion.

Basics:

TR-D2B5-noPOE v2 (3.6 mm) is equipped with a 3.6 mm fixed focal length lens, 81 ° horizontal field of view, 44 ° vertical field, F / 1.8 aperture. Supplied in a metal case with a swivel arm for easy adjustment of the monitoring direction. Power supply - DC 12 V. Maximum power consumption - 3.3 W. Dimensions - 207.6 × 76.5 × 86.0 mm. Weight - 330 g.
