TR-D3153IR2 2.7-13.5

Technical specifications

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

RWDR 120 dB

Resolution:

5MP

Form factor:

Dome

Wi-Fi:

-

Maximum video output resolution:

2592x1920

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

8

Power supply:

DC 12 V, PoE

Lens (mm):

2.7 - 13.5

Net Weight (kg):

0.52

Sensitivity(Lux):

0,002

Ingress protection:

IP66

Dimensions (mm):

Ø116.1x90.9

Power consumption, Watt:

7.2

Working temperature, C°:

-40…+60

Day/Night Mode:

Mechanic IR-filter

Network interfaces:

RJ-45
Overview

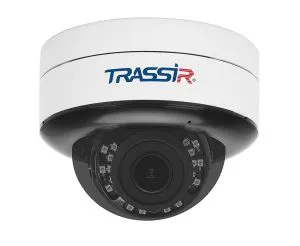

TRASSIR TR-D3153IR2

5 MP (2592 × 1944) IP-camera for year-round outdoor use is supplied in a metal case, protected from moisture and dust according to IP66 standard, from mechanical impacts - IK10, stably operates in the temperature range –40 ° C ... +60 ° C. Lightning protection TVS 4000 V is provided. For compression, H.265 +, H.265 and H.264 codecs are intended, for organizing audio communication with the installation site of the camera - audio input and output, for audio control - a built-in microphone, for night video surveillance - IR illumination with a range 25 m.


Functionality:

  • - Software detection of movement and people.
  • - Detection of crossing the virtual line.
  • - Control of the area.
  • - WDR 120 dB - minimizes the effect of different contrast lighting on image quality.
  • - 3D DNR - spatial noise reduction.
  • - Support for shooting in vertical resolution (corridor mode) with an aspect ratio of 9:16.
  • - Defog - increase the contrast to eliminate the effects of fog or smoke in the scene.
  • - ROI - the function of freezing on the selected area and simultaneously reducing the resolution in small parts of the frame to optimize the bitrate.
  • - BLC - Backlight Compensation.
  • - HLC - local exposure masking.
  • - Day / night mode with ICR, with sufficient illumination blocking IR rays (in the dark it is shifted to increase the sensitivity of the matrix and the backlight).
  • - Broadcast speed: 5 megapixels - 15 frames per second, 4 megapixels - 20 frames per second, 3 megapixels and below - 25 frames per second.

Basics:

TR-D3153IR2 is equipped with a 2.7 ~ 13.5mm zoom lens, 98 ° ~ 38 ° horizontal field of view, 73 ° ~ 30 ° vertical field, F / 1.8 aperture. Equipped with an RJ-45 network port, a microSD slot with a capacity of up to 128 GB, a power connector. Power Supply - 12V DC or PoE. The maximum power consumption is 7.2 W. Dimensions - Ø116.1 × 90.9 mm. Weight - 520 g.
