TR-D2153ZDL6 v7 2.7-13.5

Book A Demo How To Buy

Technical specifications

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/12 500 s

IR range:

up to 60 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

5MP

Form factor:

Bullet

Maximum video output resolution:

2560x1920

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

3.6

Net Weight (kg):

0.635 / 0.830

Sensitivity(Lux):

0.0015 Lux (F1.6)

Local storage:

MicroSD up to 512GB

Ingress protection:

IP67, IK08

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 4000V

Power PoE:

9.1 W

Dimensions (mm):

234.3 x 77.5 x 73.4

Power consumption, Watt:

DC: 7.8W PoE: 9.1 W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR / FTC

Field of view:

H90.6°- 28.5°±5°, V63.4°- 21.4°±5°

Class PoE :

802.3af/at

Video compression:

Н.265+ / Н.265 / H.264 / MJPEG

Overview

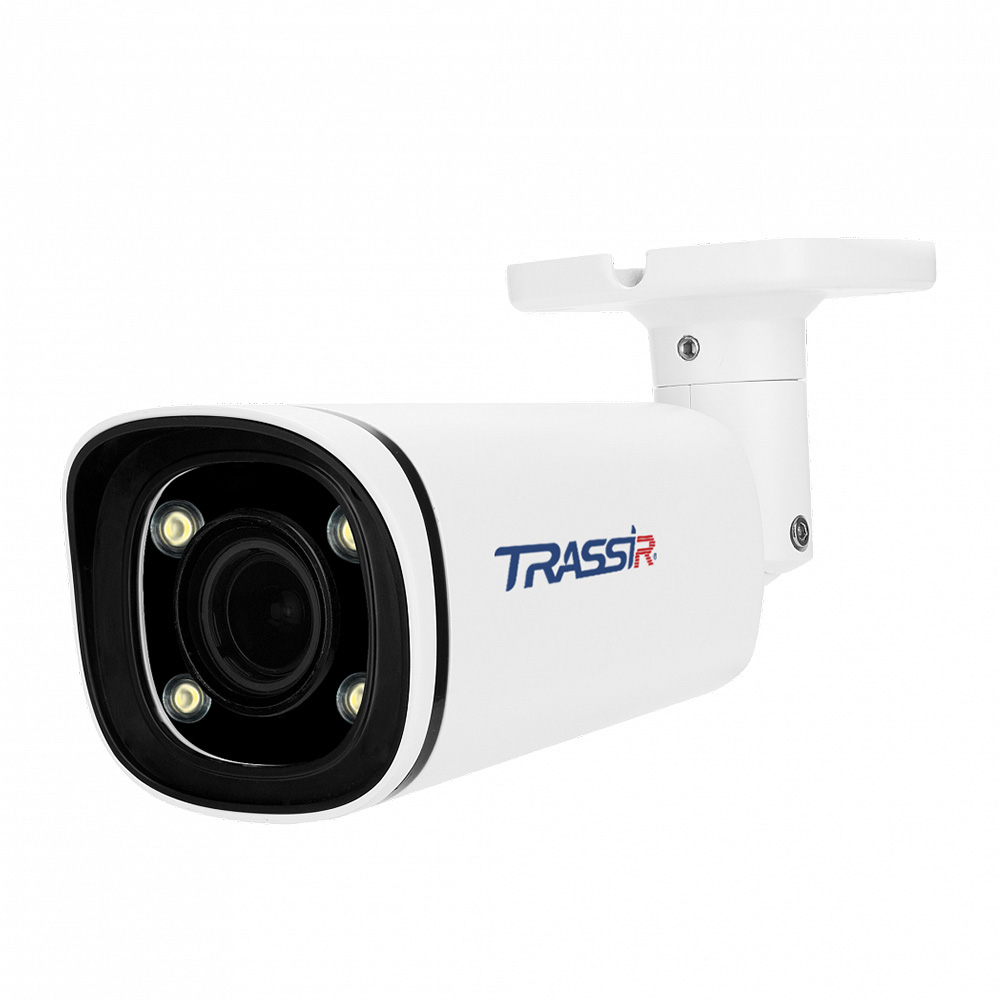

TRASSIR TR-D2153ZDL6 v7 (2.7–13.5 mm)

TRASSIR TR-D2153ZDL6 v7 2.7–13.5 is an outdoor bullet camera with dual intelligent illumination designed for 24/7 video surveillance. Equipped with a 1/2.8" CMOS sensor, the camera delivers images at a maximum resolution of 5 MP (2560 × 1920). The camera features a motorized 2.7–13.5 mm lens with horizontal viewing angles of 90.6°–28.5° ± 5° and vertical viewing angles of 63.4°–21.4° ± 5°, allowing the viewing angle to be adjusted to suit different surveillance tasks. Real WDR (120 dB) and 3D DNR help maintain image quality in challenging lighting conditions. The camera features IR illumination with a range of up to 60 m and neutral-white LED illumination with a range of up to 60 m, providing clear video in low-light and nighttime conditions. Built-in hardware analytics include human detection, line-crossing detection, area monitoring, and vehicle detection.

For efficient video transmission, the camera supports H.265+, H.265, H.264, and MJPEG codecs with a maximum bitrate of 8 Mbps. A MicroSD card slot supports local recording with storage capacities of up to 512 GB. The camera can be powered via 802.3af PoE or 12 V DC. IP67 and IK08 protection ratings, an operating temperature range of -40°C to +60°C, and TVS 4000 V lightning protection provide reliable operation in demanding outdoor environments. The camera supports a range of network protocols, including ONVIF.
