TR-D2181IR5 v7 2.8
Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/3 ~ 1/100,000 sIR range:
up to 50 mDigital noise Reduction:
3D DNRCorridor mode:
NoResolution:
8MPForm factor:
BulletMaximum video output resolution:
3840x2160Image sensor:
1/2.8" CMOS 2MPBitrate (Mb/sec):
up to 16MbpsPower supply:
PoE (802.3af) / 12V DCLens (mm):
2.8Net Weight (kg):
0.400 / 0.465Sensitivity(Lux):
0.006Lux (F1.6)Local storage:
MicroSD up to 512GBIngress protection:
IP67IR:
YesCase material:
MetalVideo input:
NoLightning protection:
TVS 6000VPower PoE:
6.6WDimensions (mm):
Ø68 x 172.3Power consumption, Watt:
DC: 6.0W PoE: 6.6WWorking temperature, C°:
-40°C … +60°CDay/Night Mode:
Mechanical ICR / FTCField of view:
H110°, V59°Class PoE :
802.3af/atVideo compression:
Н.265+ / Н.265 / H.264+ / H.264

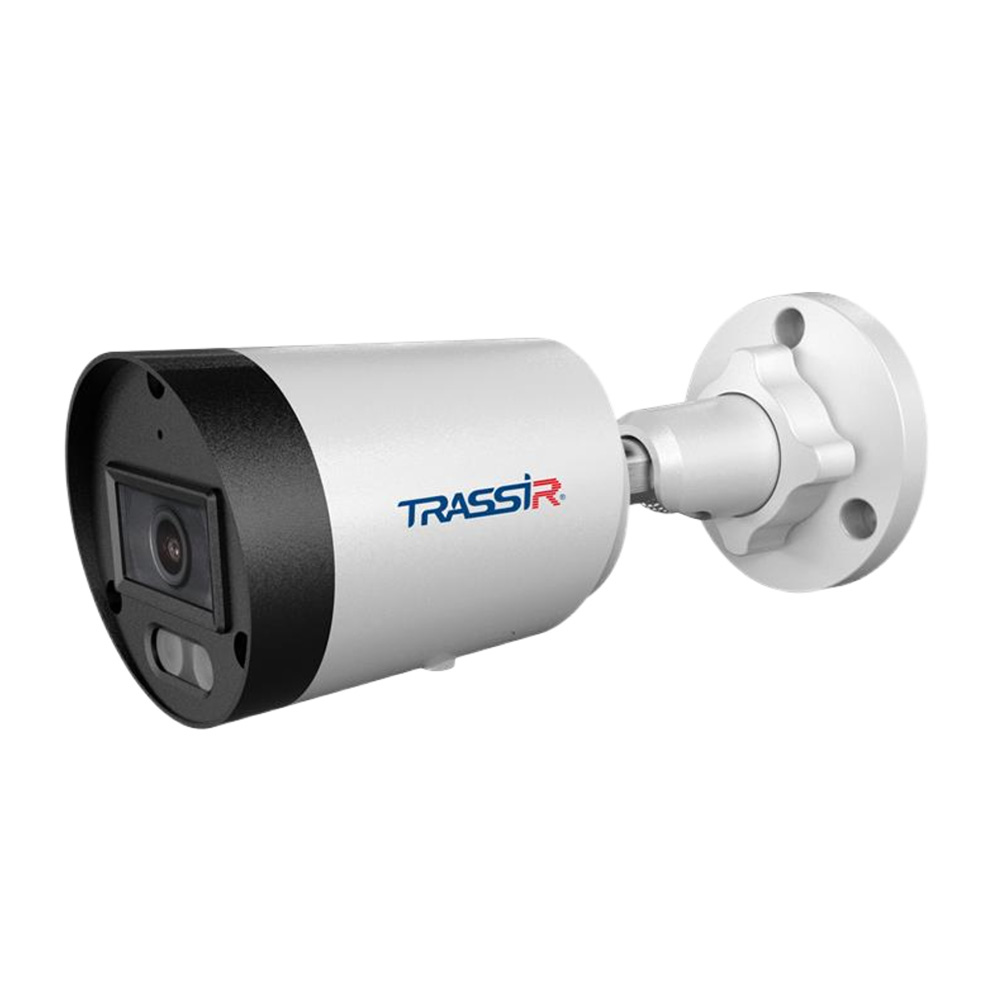

TRASSIR TR-D2181IR5 v7 2.8 is a bullet camera designed for 24/7 outdoor surveillance. Equipped with a 1/2.7" CMOS sensor, it delivers detailed images at a maximum resolution of 8 MP (3840 × 2160). The camera features a 2.8 mm fixed-focal-length lens. 120 dB WDR and 3D DNR help maintain high-quality video in challenging lighting conditions, while the mechanical IR filter and sensitivity of 0.006 lux (F1.6) enhance low-light and nighttime surveillance. IR illumination reaches up to 50 m. Built-in analytics include line-crossing detection, area monitoring, and smart motion detection with object-type filtering.
The camera supports three streams and H.265+, H.265, H.264+, and H.264 video codecs, with a maximum bitrate of 16 Mbps. A HotSwap-enabled MicroSD card slot supports local storage capacities of up to 512 GB. Two-way audio communication is supported via the built-in microphone and line-in/line-out interfaces.
The camera's metal housing, IP67 protection rating, operating temperature range of -40°C to +60°C, and TVS 2000 V lightning protection ensure reliable operation in demanding outdoor environments. Power can be supplied via 12 V DC or PoE (802.3af). ONVIF and other network protocols enable integration with the TRASSIR system and third-party solutions.
TR-D2181IR5 v7 2.8.pdf
