TR-D2251WDDL4 v3 4.0

Book A Demo How To Buy

Technical specifications

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/1 000 s

IR range:

up to 40 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

5MP

Form factor:

Bullet

Maximum video output resolution:

2592x1920

Image sensor:

1/1.8" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

4.0

Net Weight (kg):

0.48 / 0.58

Sensitivity(Lux):

0 Lux (F1.0)

Local storage:

MicroSD up to 256GB

Ingress protection:

IP67, IK08

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 4000V

Power PoE:

10W

Dimensions (mm):

184.67 x 66.5 x 63.05

Power consumption, Watt:

DC: 4.7W PoE: 10W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

FTC

Network interfaces:

RJ-45

Field of view:

H88.5°±5°, V45.8°±5°

Video compression:

Н.265+ / Н.265 / H.264 / MJPEG

Overview

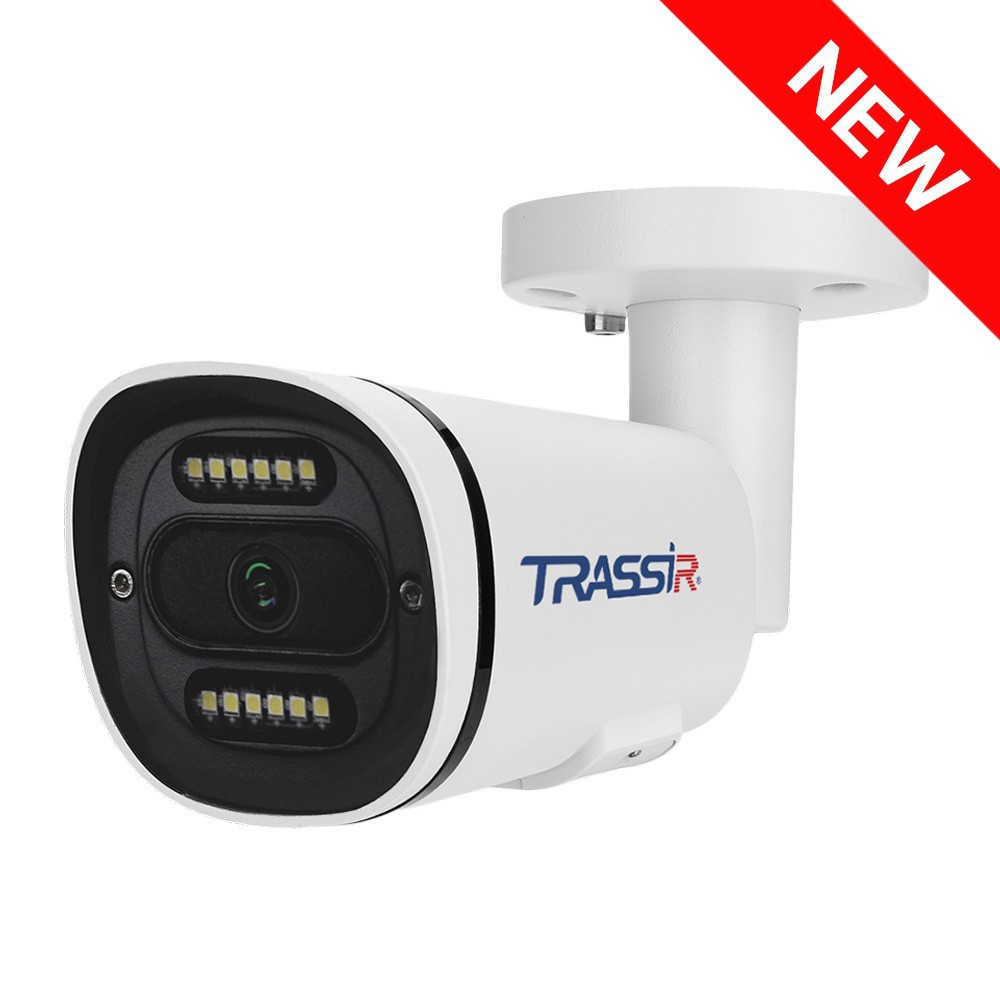

TRASSIR TR-D2251WDDL4 v3 (4.0 mm)

The shockproof (IK08) 5 MP (2592×1920) IP camera TRASSIR TR-D2251WDDL4 v3 4.0 is housed in a metal casing and protected against dust and moisture according to the IP67 standard. Combined with an operating temperature range of –40 °C to +60 °C and lightning protection (TVS 4000 V), this ensures reliable outdoor performance throughout the year.

Parameters:

Detection of faces, people, vehicles; line crossing; zone entry/exit; loitering; people counting

WDR 120 dB – reduces the impact of high-contrast lighting on image quality

3D DNR – spatial noise reduction

24/7 color video recording

Corridor mode – vertically oriented video for narrow areas

1/1.8" CMOS sensor

Fixed focal length lens (4 mm) with an aperture of F/1.0

Horizontal viewing angle: 88.5°

Vertical viewing angle: 45.8°

Alarm input and output

Video compression: H.265+, H.265, H.264, MJPEG
