TR-D3251WDIR3 v2 2.8
Technical specifications
Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
RWDR 120 dBFrame rate:
25Electronic shutter speed:
1/2 ~ 1/1 000 sIR range:
30mDigital noise Reduction:
3D DNRCorridor mode:
YesResolution:
5MPForm factor:
DomeWi-Fi:
-Maximum video output resolution:
2592x1920Image sensor:
1/2.8" CMOSBitrate (Mb/sec):
8Power supply:
12V DCLens (mm):
2.8Net Weight (kg):
0.450Sensitivity(Lux):
0,005Local storage:
microSD up to 128 GBIngress protection:
IP66IR:
YesCase material:
MetalLightning protection:
TVS 4000VDimensions (mm):
Ø116.10 x 96.51Power consumption, Watt:
5.1Working temperature, C°:
-40°C ... +60°CDay/Night Mode:
Mechanic IR-filterVideo compression:
Н.265+ / Н.265 / H.264+ / H.264Overview

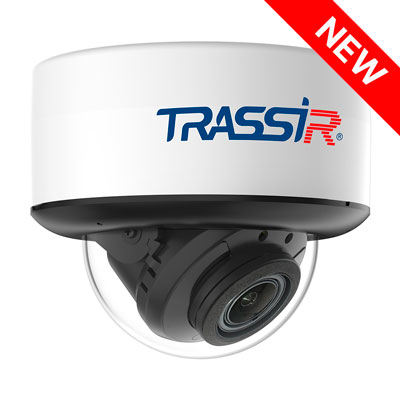

5 MP (2592×1920) IP-camera TRASSIR TR-D3251WDIR3 v2 2.8 is adapted for year-round outdoor use in places of direct access: the case meets the standard of protection against moisture and dust IP66, against mechanical influences - IK10, operating temperatures from -40 °C... +60 °C, lightning protection - TVS 4000 V.
Functionality
Motion detection, faces (optional), cars, people counting.
Detection of virtual line crossing, area intrusion, area exit, loitering.
WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
3D DNR - spatial noise reduction.
Corridor mode - hardware support for vertical resolution.
Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
BLC - backlight compensation.
IR illumination with a range of 30 m.
Compression H.265+, H.265, H.264+, H.264.
Basics
TR-D3251WDIR3 v2 2.8 is equipped with a lens with a fixed focal length of 2.8 mm, a horizontal angle of view of 91°, a vertical angle of 66°, aperture of F/1.8. Equipped with RJ-45 network port, audio input, audio output and integrated microphone, alarm input and alarm output, microSD slot up to 128 MB. Power Supply – 12V DC or PoE. The maximum power consumption is 5.8 W. Size - Ø116.10×96.51 mm. Weight - 450 g.
Functionality
Motion detection, faces (optional), cars, people counting.
Detection of virtual line crossing, area intrusion, area exit, loitering.
WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
3D DNR - spatial noise reduction.
Corridor mode - hardware support for vertical resolution.
Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
BLC - backlight compensation.
IR illumination with a range of 30 m.
Compression H.265+, H.265, H.264+, H.264.
Basics
TR-D3251WDIR3 v2 2.8 is equipped with a lens with a fixed focal length of 2.8 mm, a horizontal angle of view of 91°, a vertical angle of 66°, aperture of F/1.8. Equipped with RJ-45 network port, audio input, audio output and integrated microphone, alarm input and alarm output, microSD slot up to 128 MB. Power Supply – 12V DC or PoE. The maximum power consumption is 5.8 W. Size - Ø116.10×96.51 mm. Weight - 450 g.
Documentation
TR-D3251WDIR3v2_passport_en.pdf
