TR-D3253WDZIR4 v3 2.7-13.5

Book A Demo How To Buy

Technical specifications

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/12 500 s

IR range:

up to 40 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

5MP

Form factor:

Dome

Maximum video output resolution:

2592x1920

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

2.7 - 13.5 (motorzoom)

Net Weight (kg):

0.52 / 0.65

Sensitivity(Lux):

0.002Lux (F1.6)

Local storage:

MicroSD up to 512GB

Ingress protection:

IP66, IK10

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 4000V

Power PoE:

7.4W

Dimensions (mm):

Ø116.10 x 96.51

Power consumption, Watt:

DC: 5.4W PoE: 7.4W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR

Network interfaces:

RJ-45

Field of view:

H92°-29°±5°, V68°-20°±5°

Class PoE :

802.3af/at

Video compression:

Н.265+ / Н.265 / H.264

Overview

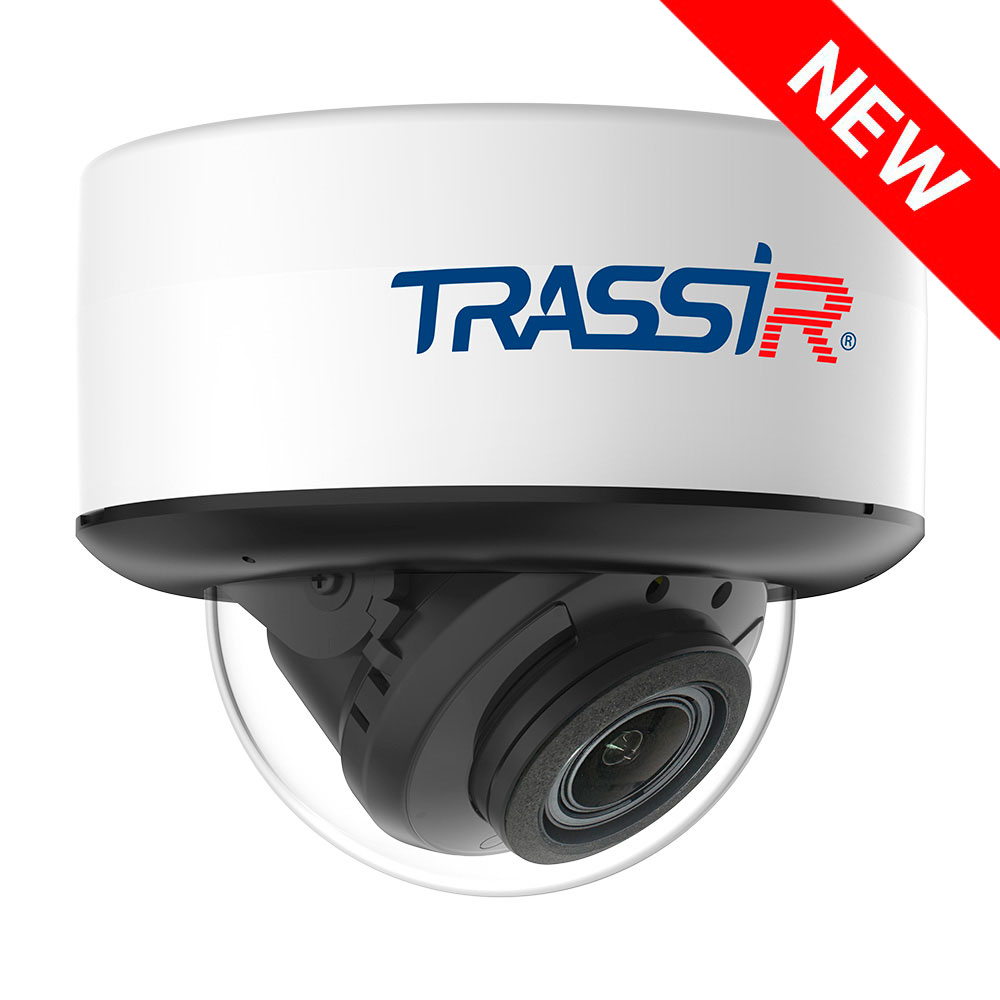

TRASSIR TR-D3253WDZIR4 v3 (2.7-13.5 mm)

TRASSIR TR-D3253WDZIR4 v3 2.7–13.5 is an outdoor dome IP camera from the PRO line, featuring a 1/2.8" CMOS 5 MP sensor with a resolution of 2592 × 1920. A motorized 2.7–13.5 mm varifocal lens (motorized zoom) simplifies precise scene adjustment, while IR illumination with a range of up to 40 meters ensures clear images in low-light and nighttime conditions.

The camera supports Day/Night mode with a mechanical IR cut filter, a high sensitivity of 0.002 lux (F1.3), and a Real WDR dynamic range of 120 dB for scenes with challenging lighting. For efficient bandwidth and storage usage, it supports H.265+ / H.265 / H.264 video compression with a maximum bitrate of up to 8 Mbps.

Built-in video analytics, including people detection, line crossing, and area intrusion detection, as well as support for ONVIF and common network protocols (RTSP, HTTP, etc.), make integration into existing video surveillance systems straightforward. Power can be supplied via PoE (802.3af) or 12 V DC. The camera is equipped with an RJ45 port, a reset button, 1/1 alarm inputs/outputs, and a microSD card slot supporting cards of up to 512 GB for local recording.

The metal enclosure is rated IP66 for dust and water protection and IK10 for impact resistance. An operating temperature range of −40 °C to +60 °C and a built-in 4000 V TVS surge suppressor ensure reliable outdoor operation. The product is backed by a 5-year warranty.
