TR-D3361WDDL4 2.8
Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
WDR (130 dB)Frame rate:
25Electronic shutter speed:
1 ~ 1/100,000 sIR range:
up to 40 mDigital noise Reduction:
3D DNRCorridor mode:
NoResolution:
6MPForm factor:
DomeMaximum video output resolution:
3200x1800Image sensor:
1/1.8" CMOSBitrate (Mb/sec):
up to 16MbpsPower supply:
PoE (802.3af) / 12V DCLens (mm):
2.8Net Weight (kg):
0.63 / 0.88Sensitivity(Lux):
0.0005Lux (F1.0)Local storage:
MicroSD up to 512GBIngress protection:
IP67, IK10IR:
YesCase material:
MetalVideo input:
NoLightning protection:
TVS 4000VPower PoE:
11.5 WDimensions (mm):
Ø121.5 x 97.6Power consumption, Watt:
DC: 10.2 W PoE: 11.5 WWorking temperature, C°:
-40°C … +60°CDay/Night Mode:
Mechanical ICRNetwork interfaces:
RJ-45Field of view:
H108.8°±5°, V56.4°±5°Class PoE :
802.3af/atVideo compression:
Н.265+ / Н.265 / H.264+ / H.264 / MJPEG

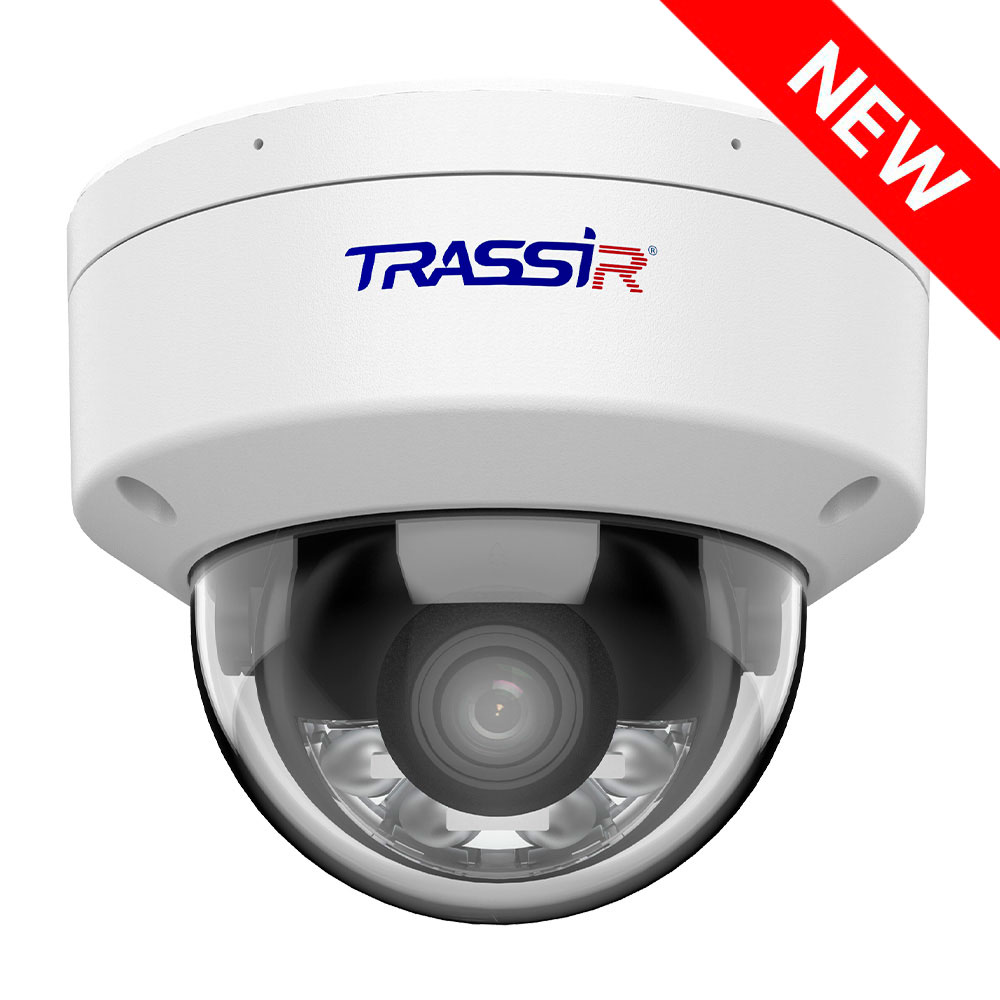

TRASSIR TR-D3361WDDL4 2.8 is a dome-style outdoor IP camera with dual intelligent illumination for 24/7 video monitoring. It features a 1/1.8" CMOS sensor and delivers images at a maximum resolution of 6 MP (3200 × 1800).
For poor lighting conditions, it provides Real WDR with a 130 dB dynamic range and 3D DNR noise reduction. The camera is equipped with IR illumination with a range of up to 40 meters and warm-white LED illumination with a range of up to 40 meters, enabling clear and informative video capture in complete darkness.
The camera supports H.265+ / H.265 / H.264+ / H.264 / MJPEG compression with bitrates of up to 16 Mbps, simplifying video storage and transmission. It supports Edge Storage for local recording to a microSD card with a capacity of up to 512 GB and HotSwap support.
Built-in hardware analytics include people and face detection, line crossing detection, area intrusion monitoring, people counting, and vehicle detection. The camera is equipped with a built-in microphone, as well as audio input and output.
The camera is designed for outdoor installation and features an IP67- and IK10-rated enclosure, built-in 4000 V TVS surge protection, and an operating temperature range of −40 °C to +60 °C. Power can be supplied via PoE (802.3af, Class 3) or 12 V DC.
TR-D3361WDDL4 2.8.pdf
