Technical specifications

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/3 ~ 1/100,000 s

IR range:

up to 30 m

Digital noise Reduction:

3D DNR

Corridor mode:

Resolution:

2MP

Form factor:

Sphere

Maximum video output resolution:

1920x1080

Image sensor:

1/2.9" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

2.8

Net Weight (kg):

0.82 / 0.98

Sensitivity(Lux):

0.005Lux(F1.6)

Local storage:

MicroSD up to 512GB

Ingress protection:

IP67

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 4000V

Power PoE:

5.3W

Dimensions (mm):

Ø103.5 x 82.4

Power consumption, Watt:

DC: 4.7W PoE: 5.3W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR / FTC

Field of view:

H102.5˚, V55˚

Class PoE :

802.3af/at

Video compression:

Н.265+ / Н.265 / H.264+ / H.264

Overview

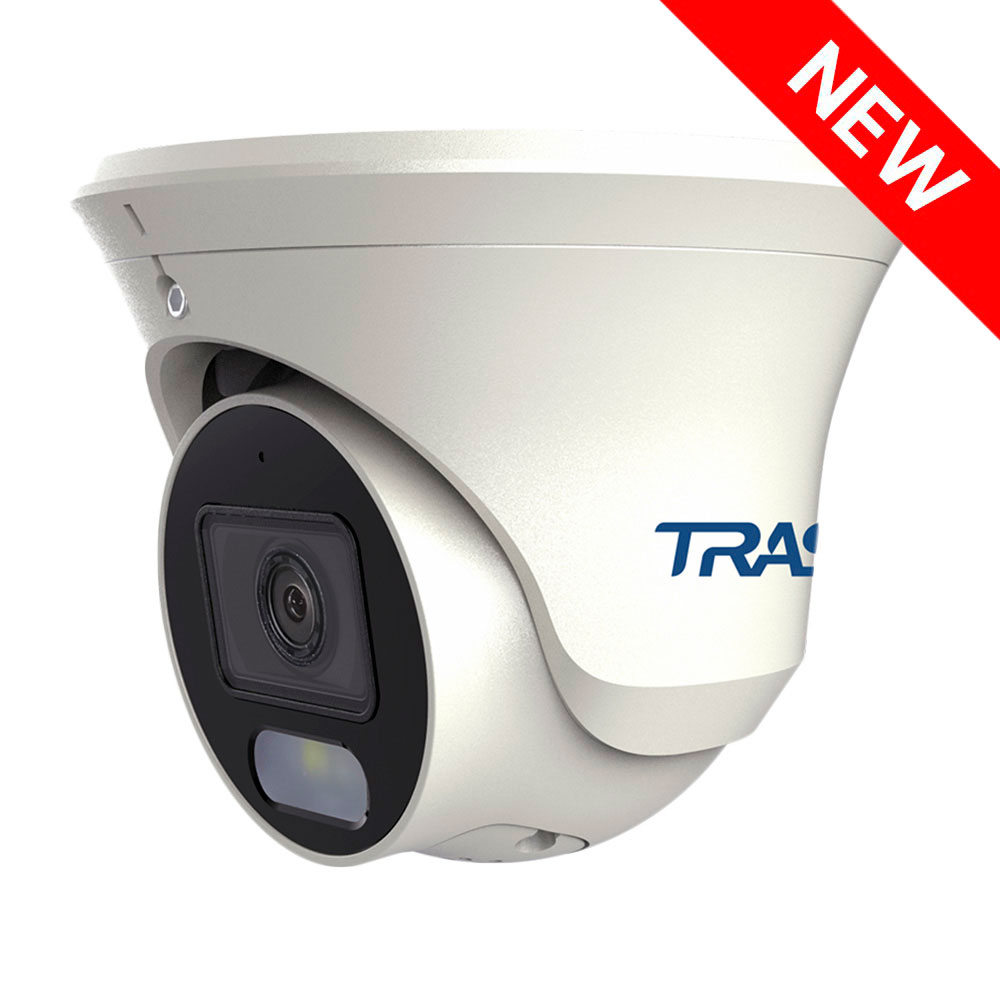

TRASSIR TR-D8121DL2 v7 (2.8 mm)

TRASSIR TR-D8121DL2 v7 2.8 is an outdoor camera with dual intelligent illumination for 24/7 video surveillance. Equipped with a 1/2.9" CMOS sensor, it captures crisp 2 MP images (1920×1080). Real WDR (120 dB) and 3D DNR noise reduction ensure clear video even in challenging lighting conditions.

The camera features IR and warm white LED illumination, each with a range of up to 30 meters, enabling detailed video capture in complete darkness. It supports hardware analytics, including people detection, line crossing detection, area monitoring, and vehicle detection.

For efficient video streaming, it supports H.265+ and H.264+ codecs with a maximum bitrate of 8 Mbps. Local recording is available via a microSD card of up to 512 GB. Power can be supplied through 802.3af PoE or 12V DC.

Built for durability, the IP67-rated enclosure operates from -40°C to +60°C and includes 6000V TVS protection. The camera is compatible with multiple network protocols, including Onvif.

Documentation

TR_D8121DL2v7_passport_en.pdf
