TR-D8151IR3 v7 2.8
Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/50,000 sIR range:
up to 35 mDigital noise Reduction:
3D DNRCorridor mode:
YesResolution:
5MPForm factor:
SphereMaximum video output resolution:
2560x1920Image sensor:
1/2.8" CMOSBitrate (Mb/sec):
up to 8MbpsPower supply:
PoE (802.3af) / 12V DCLens (mm):
2.8Net Weight (kg):
0.38 / 0.48Sensitivity(Lux):
0.003Lux (F1.6)Local storage:
MicroSD up to 256GBIngress protection:
IP66, IK10IR:
YesCase material:
MetalVideo input:
NoLightning protection:
TVS 4000VPower PoE:
7.6WDimensions (mm):
Ø93 x 92.2Power consumption, Watt:
DC: 4.3W PoE: 7.6WWorking temperature, C°:
-40°C … +60°CDay/Night Mode:
Mechanical ICRNetwork interfaces:
RJ-45Field of view:
H98°, V71°Video compression:
Н.265+ / Н.265 / H.264

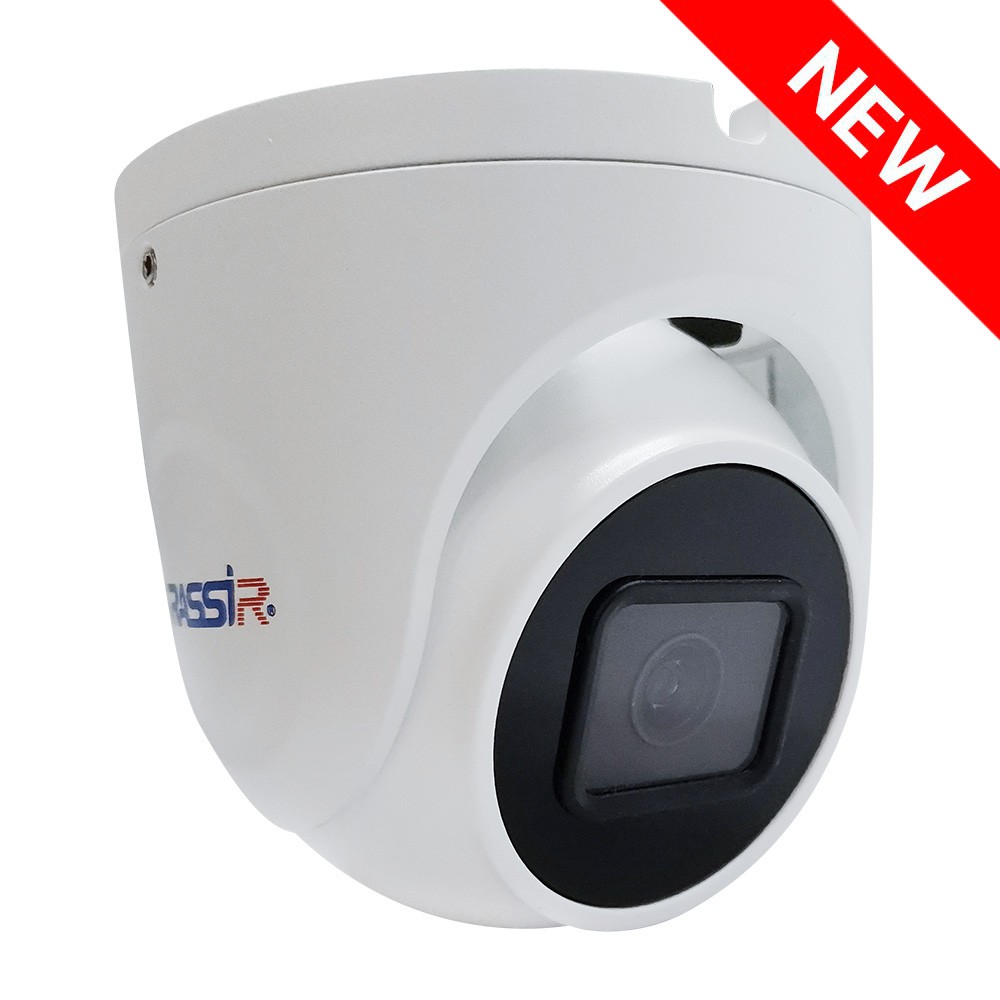

The TRASSIR TR-D8151IR3 v7 2.8 is a 5 MP (2560×1920) IP camera designed for year-round outdoor use in areas with direct public access. It features a robust metal housing rated IK10 for impact resistance and IP66 for protection against dust and moisture. The camera operates reliably in temperatures ranging from –40 °C to +60 °C and includes 4000 V TVS lightning protection.
Parameters:
- Blackface IR illumination technology
- Detection of people, vehicles, line crossing, and area entry/exit
- WDR 120 dB – enhances image quality in scenes with varying illumination
- 3D DNR – spatial noise reduction for improved image clarity
- Corridor mode – optimized for vertically oriented video
- 1/2.8" CMOS sensor with 0.003 lx sensitivity
- Fixed focal length lens (2.8 mm), horizontal viewing angle: 98°, vertical viewing angle: 71°, aperture: F/1.6
- Mechanical IR-cut filter for accurate image reproduction under sufficient lighting
- Video compression formats: H.265+, H.265, H.264
- Built-in microphone
- IR illumination range: up to 35 meters for night surveillance
- SD card slot supporting up to 256 GB (hot-swappable)
- Interfaces: network port, audio input, audio output
- Power supply: DC 12 V or PoE
- Maximum power consumption: 7.6 W
- Dimensions: Ø93.0 × 92.2 mm
- Weight: 380 g
