TR-D8221WDDL4 v3 2.8
Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/3 ~ 1/100,000 sIR range:
up to 40 mDigital noise Reduction:
3D DNRCorridor mode:
NoResolution:
2MPForm factor:
SphereMaximum video output resolution:
1920x1080Image sensor:
1/2.8" CMOS 2MPBitrate (Mb/sec):
up to 8MbpsPower supply:
PoE (802.3af) / 12V DCLens (mm):
2.8Net Weight (kg):
0.528 / 0.723Sensitivity(Lux):
0.005Lux(F1.6)Local storage:
MicroSD up to 512GBIngress protection:
IP67IR:
YesCase material:
MetalVideo input:
NoLightning protection:
TVS 6000VPower PoE:
5.2WDimensions (mm):
172.3 x 68 x 68Power consumption, Watt:
DC: 4.5W PoE: 5.2WWorking temperature, C°:
-40°C … +60°CDay/Night Mode:
Mechanical ICR / FTCField of view:
H102.5˚, V55˚Class PoE :
802.3af/atVideo compression:
Н.265+ / Н.265 / H.264+ / H.264

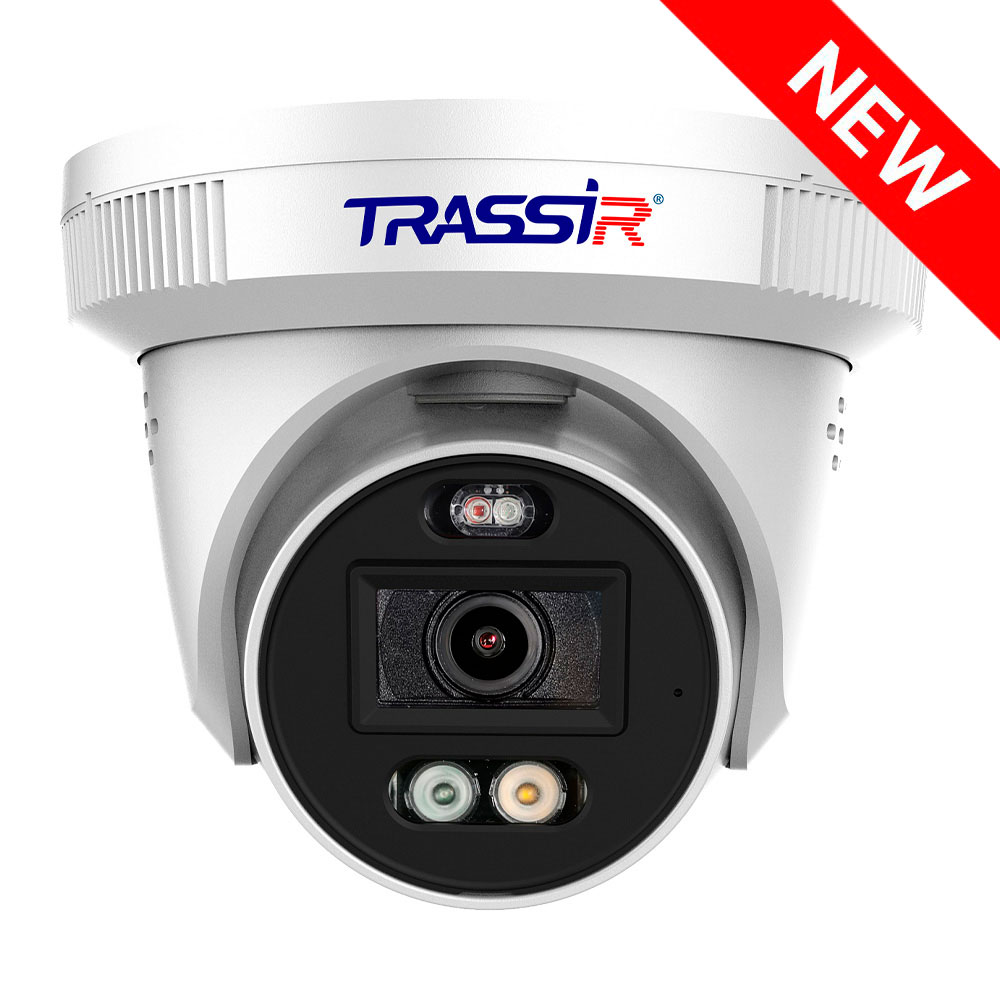

TRASSIR TR-D8221WDDL4 v3 2.8 is an outdoor spherical camera featuring dual intelligent illumination for 24/7 video monitoring. With a 1/2.8" CMOS sensor, it captures images at a maximum resolution of 2 MP (1920×1080). Real WDR (120 dB) and 3D DNR noise reduction ensure clear video even in challenging lighting conditions. The camera offers IR and warm white LED illumination, each with a range of up to 40 meters, enabling detailed video capture in the dark.
It supports H.265+, H.265, H.264+, and H.264 compression with a maximum bitrate of 8 Mbps for efficient storage and transmission of video streams. Local recording is supported via built-in Edge Storage, with MicroSD cards up to 512 GB and hot-swappable (HotSwap) capability.
Advanced hardware analytics include people and face detection, line crossing detection, loitering detection, area monitoring, people counting, and vehicle detection. Two-way audio is also supported.
Designed for outdoor installation, the camera features an IP67-rated enclosure, 6000V TVS surge protection, and operates in temperatures from -40°C to +60°C. Power can be supplied via PoE (802.3af, Class 0) or 12V DC.
TR-D8221WDDL4 v3 2.8.pdf
