TR-D2221WDDL4 v3 3.6
Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/3 ~ 1/100,000 sIR range:
up to 40 mDigital noise Reduction:
3D DNRCorridor mode:
NoResolution:
2MPForm factor:
BulletMaximum video output resolution:
1920x1080Image sensor:
1/2.8" CMOS 2MPBitrate (Mb/sec):
up to 8MbpsPower supply:
PoE (802.3af) / 12V DCLens (mm):
3.6Net Weight (kg):
0.400 / 0.465Sensitivity(Lux):
0.005Lux(F1.6)Local storage:
MicroSD up to 512GBIngress protection:
IP67IR:
YesCase material:
MetalVideo input:
NoLightning protection:
TVS 6000VPower PoE:
5.2WDimensions (mm):
172.3 x 68 x 68Power consumption, Watt:
DC: 4.5W PoE: 5.2WWorking temperature, C°:
-40°C … +60°CDay/Night Mode:
Mechanical ICR / FTCField of view:
H85.5˚, V44˚Class PoE :
802.3af/atVideo compression:
Н.265+ / Н.265 / H.264+ / H.264

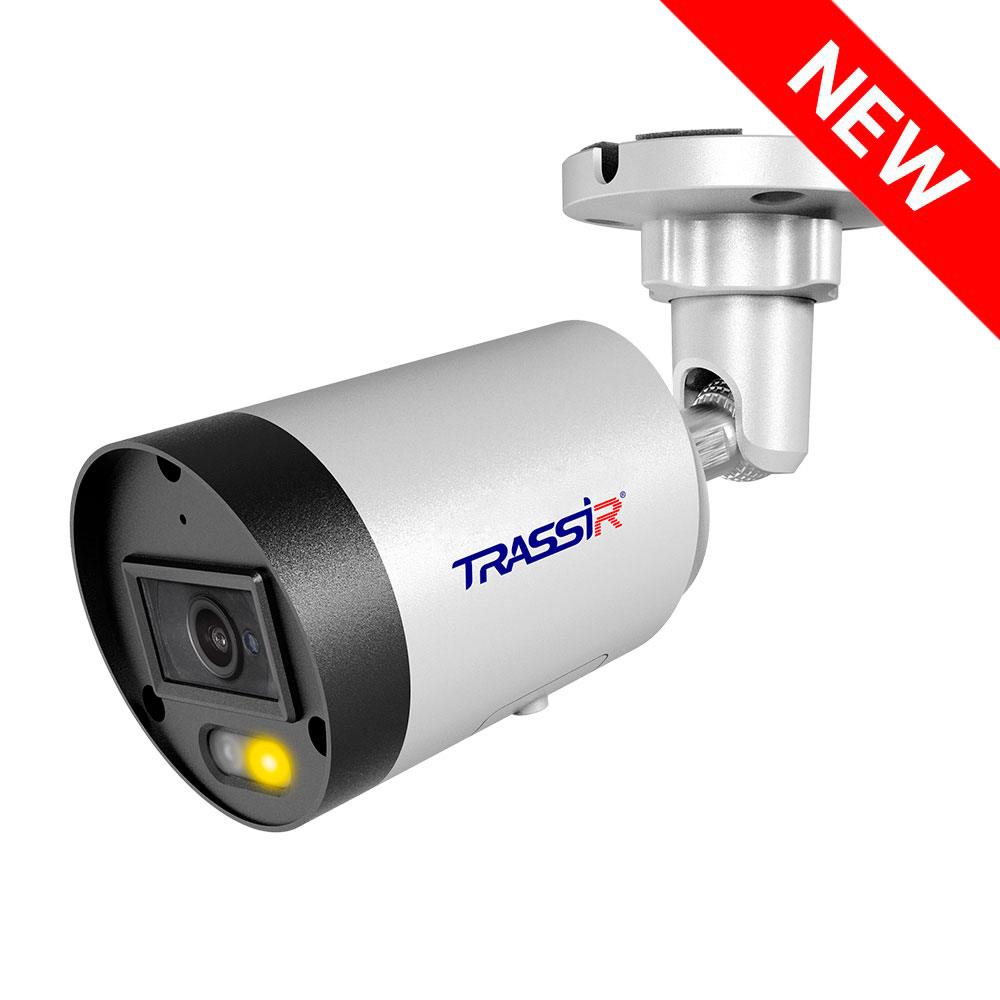

TRASSIR TR-D2221WDDL4 v3 3.6 is an outdoor bullet camera featuring dual intelligent illumination for 24/7 video monitoring. With a 1/2.8" CMOS sensor, it captures images at a maximum resolution of 2 MP (1920×1080). Real WDR (120 dB) and 3D DNR noise reduction ensure clear video even in challenging lighting conditions. The camera offers IR and warm white LED illumination, each with a range of up to 40 meters, enabling detailed video capture in complete darkness.
It supports H.265+, H.265, H.264+, and H.264 compression with a maximum bitrate of 8 Mbps, providing efficient storage and transmission of video streams. Local recording is available via built-in Edge Storage, with MicroSD cards up to 512 GB and HotSwap support.
Advanced hardware analytics include human and face detection, loitering detection, line crossing detection, area monitoring, people counting, and vehicle detection. Two-way audio is also supported.
Designed for outdoor installation, the camera features an IP67-rated enclosure, 6000V TVS surge protection, and operates in temperatures from -40°C to +60°C. Power can be supplied via PoE (802.3af, Class 0) or 12V DC.
TR-D2221WDDL4 v3 3.6.pdf
