TR-D2S5 v3 2.8

Technical specifications

WDR:

RWDR 105 dB

IR range:

Up to 25

Resolution:

2MP

Form factor:

Sphere

Wi-Fi:

-

Maximum video output resolution:

1920x1080

Image sensor:

1/2.9" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

2.8

Net Weight (kg):

0.335 / 0.43

Sensitivity(Lux):

0.005Lux (F1.8)

Ingress protection:

IP66

Dimensions (mm):

106x96.9x73.5

Power consumption, Watt:

DC: 3W PoE: 3.8W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR

Video compression:

Н.265+ / Н.265 / H.264
Overview

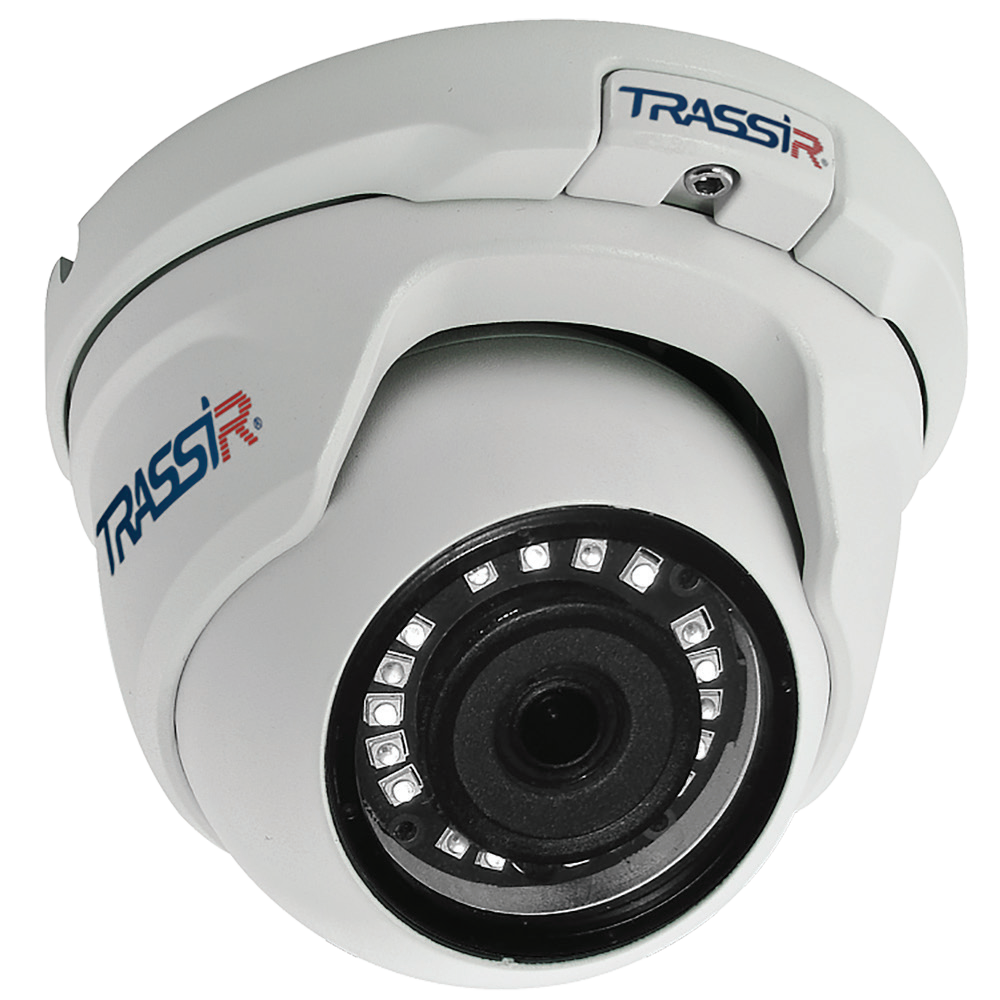

The 2 MP (1920×1080) IP Camera TRASSIR TR-D2S5 v3 2.8 comes enclosed in a housing protected against moisture and dust according to IP66 standards. Together with operational temperatures ranging from –40 °C to +60 °C and surge protection (TVS 4000 V), it ensures stable operation outdoors throughout the year. For compression, it supports codecs H.265+, H.265, and H.264, and for night surveillance, it features IR illumination with a range of 25 meters.


Functionality:

· Detection: motion, people, line crossing, area entry, and exit.

· DWDR: image processing in unfavorable lighting conditions.

· BLC: compensation for backlighting.

· ROI: region of interest.

· Day/Night Mode: with a mechanical filter allowing infrared radiation transmission in sufficient lighting.

· 1/2.9" CMOS sensor with a sensitivity of 0.005 lux.

· Fixed focal length lens of 2.8 mm, providing a horizontal viewing angle of 98° and a vertical viewing angle of 53°, with an aperture of F/1.8.

· Power: DC 12 V, PoE.

· Maximum Power Consumption: 3.4 W.

· Dimensions: Ø105.5×72.0 mm.

· Weight: 335 g.
