TR-D3121IR2 v6 (B) 2.8

Technical specifications

Audio:

Built-in microphone

WDR:

RWDR 120 dB

Resolution:

2MP

Form factor:

Dome

Wi-Fi:

-

Maximum video output resolution:

1920x1080

Image sensor:

1/2.7" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

2.8

Net Weight (kg):

0.45 / 0.58

Sensitivity(Lux):

0.005Lux (F1.8)

Local storage:

MicroSD up to 128Gb

Ingress protection:

IP66

Dimensions (mm):

Ø116.10 x 96.51

Power consumption, Watt:

DC: 3.6W PoE: 3.9W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR

Video compression:

Н.265+ / Н.265 / H.264+ / H.264
Overview

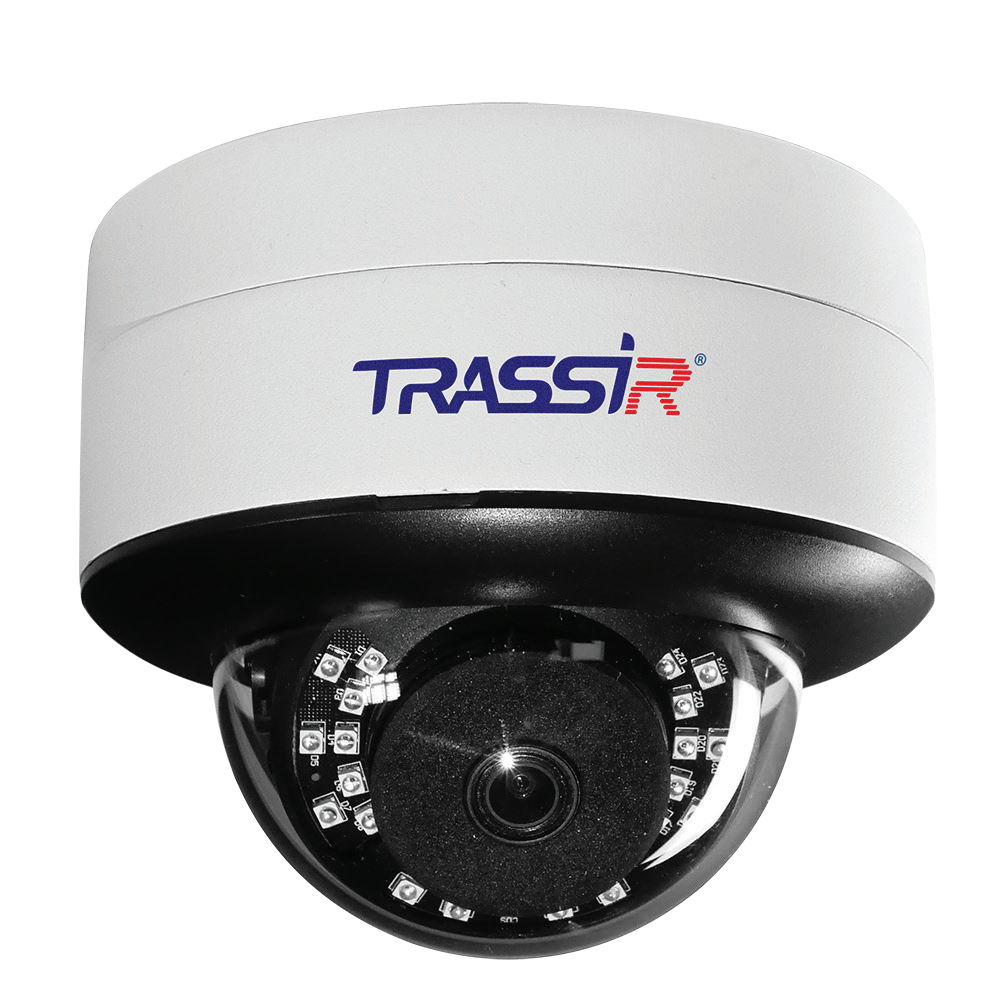

2 MP (1920×1080) IP Camera TRASSIR TR-D3121IR2 v6 (B) 2.8 is designed for outdoor use in areas with direct access throughout the year and at any time of day. It comes in a metal housing, protected against moisture and dust to the IP66 standard, and against mechanical impacts to IK10. It operates stably in a temperature range of –40 °C to +60 °C. It is equipped with TVS 4000 V lightning protection and IR illumination with a range of 25 m.


Functionality

· Software Detection: motion detection, people detection, virtual line crossing, zone intrusion, area exit.

· Built-in Microphone.

· WDR 120 dB: eliminates the impact of varying lighting contrasts on image quality.

· 3D DNR: spatial noise reduction.

· Corridor Mode: shooting in vertical resolution.

· Defog: increases contrast to eliminate blurriness caused by fog or smoke.

· BLC: backlight compensation.

· HLC: local light masking.

· Day/Night Mode with ICR: switches to infrared sensitivity in the dark by moving the IR filter away when illumination is sufficient.

· Compression Formats: H.264, H.265, H.264+, H.265+.


Basics:

The TR-D3121IR2 v6 (B) 2.8 is built on a CMOS sensor with a sensitivity of 0.005 lux. It comes equipped with a fixed focal length lens of 2.8 mm, providing a horizontal viewing angle of 100° and a vertical viewing angle of 54°, with an aperture of F/1.8. The camera includes an RJ-45 network port, a slot for a microSD card with a capacity of up to 128 MB, and a power connector. It can be powered by either a 12V DC source or via PoE (Power over Ethernet). The power consumption is 3.9 watts. The camera's dimensions are Ø116.10×96.51 mm. Weight: 450 g.
