TR-D3281WDIR4 2.8

Technical specifications

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

RWDR 120 dB

Frame rate:

20

Electronic shutter speed:

1/3 ~ 1/10 000 s

IR range:

40m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

8MP

Form factor:

Dome

Wi-Fi:

-

Maximum video output resolution:

3840x2160

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

13

Power supply:

12V DC

Lens (mm):

2.8

Net Weight (kg):

0.795

Sensitivity(Lux):

0,005

Local storage:

microSD up to 128 GB

Ingress protection:

IP67

Case material:

Metal

Dimensions (mm):

112.2x89.7

Power consumption, Watt:

4.5

Working temperature, C°:

-40°C ... +60°C

Day/Night Mode:

Mechanic IR-filter

Class PoE :

802.3af/at

Video compression:

Н.265+ / Н.265 / H.264+ / H.264
Overview

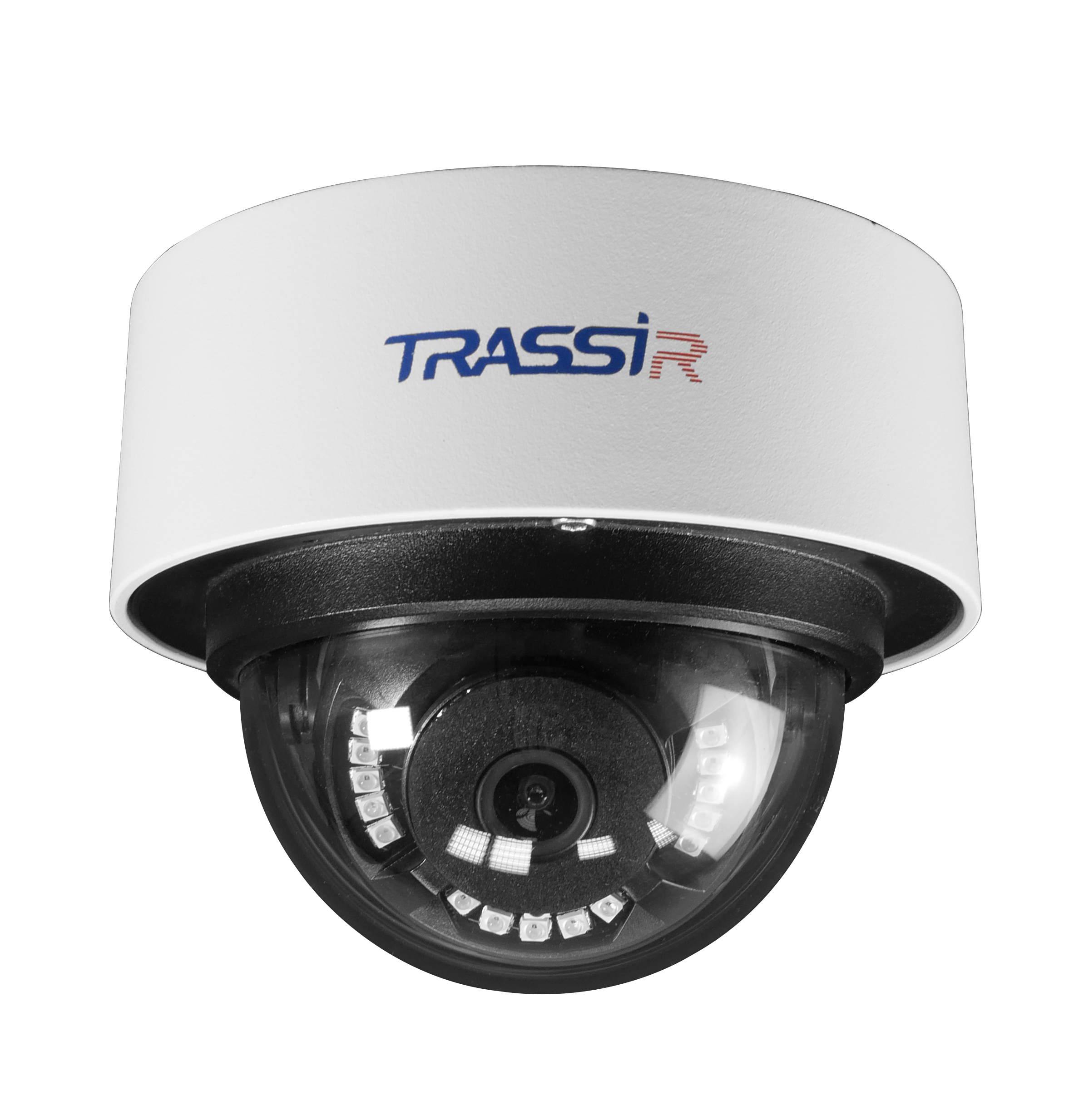

8 MP (3840×2160) TRASSIR TR-D3281WDIR4 2.8 IP camera is adapted for year-round outdoor operation, including places of direct access, under the influence of precipitation: the case is protected from dust and moisture according to the IP67 standard, from mechanical influences — IK10, operating temperatures from – 40 °C… +60 °C, lightning protection - TVS 6000 V.


Functionality

  • Detection of movement, persons, crossing a virtual line, abandoned objects; counting those who crossed the line.
  • Detection of intrusion into the zone, exit from the area (with filtering of people and vehicles).
  • IR illumination with a range of 40 m.
  • Day/Night with ICR that refracts IR rays when there is enough light; in the dark, the filter moves away from the matrix to improve its sensitivity.
  • WDR 120 dB - Reduces the impact of changes in light levels on image quality.
  • 3D DNR - spatial noise reduction.
  • BLC - backlight compensation.
  • Defog - Enhances contrast to reduce the effect caused by fog or smoke.
  • Compression H.264, H.265, H.264+, H.265+.
  • Main stream resolution - 3840x2160, 3200x1800, 3072x1728, 2560x1440, 1920x1080; additional - 1280×720, 704×576, 352×288.
  • The frame rate of the main stream is 15 fps (WDR on 8 MP), 20 fps (WDR off 8 MP, 6 MP), 25 fps (5 MP and below), additional - 20 fps. Bitrate - 13 Mbps.



Basic

The TR-D3281WDIR4 2.8 is based on a highly sensitive (0.005 lx) 1/2.8-inch Sony Starvis CMOS sensor. Equipped with a 2.8 mm fixed focal length lens (F/1.8 aperture, 106° horizontal, 58° vertical), built-in microphone, RJ-45 network port, audio output, audio input, alarm output, alarm input, slot for microSD- cards up to 128 GB. Power supply - DC 12 V, PoE. Power - 4.6W max. Size - Ø112.2 × 89.7 mm, weight - 650 g.
