TR-D4151IR1 v7 3.6
Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/50,000 sIR range:
up to 15 mDigital noise Reduction:
3D DNRCorridor mode:
YesResolution:
5MPForm factor:
DomeMaximum video output resolution:
2560x1920Image sensor:
1/2.8" CMOSBitrate (Mb/sec):
up to 8MbpsPower supply:
PoE (802.3af) / 12V DCLens (mm):
3.6Net Weight (kg):
0.31 / 0.40Sensitivity(Lux):
0.003Lux (F1.6)Local storage:
MicroSD up to 256GBIngress protection:
IP66, IK10IR:
YesCase material:
MetalVideo input:
NoLightning protection:
TVS 4000VPower PoE:
5.5WDimensions (mm):
Ø102.20 x 56.38Power consumption, Watt:
DC: 3.4W PoE: 5.5WWorking temperature, C°:
-40°C … +60°CDay/Night Mode:
Mechanical ICRNetwork interfaces:
RJ-45Field of view:
H84°, V60°Video compression:
Н.265+ / Н.265 / H.264

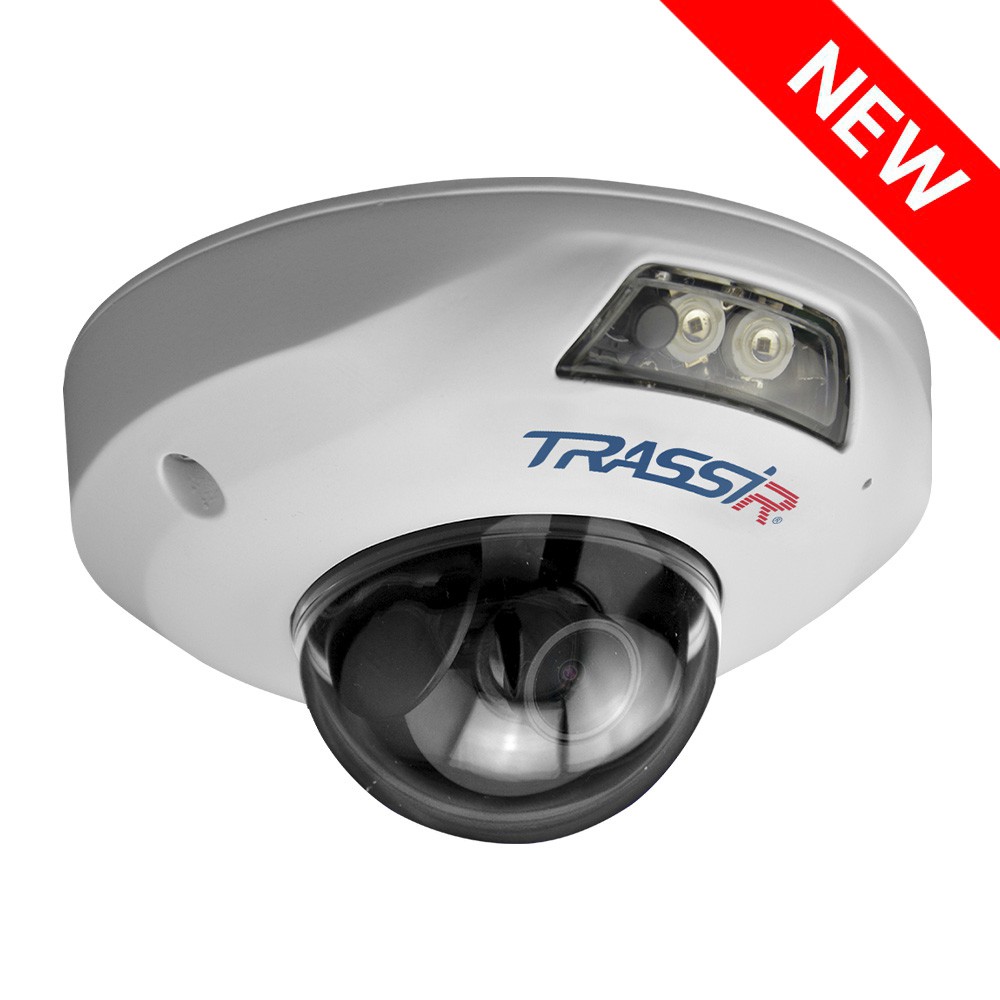

The TRASSIR TR-D4151IR1 v7 3.6 is a 5 MP (2560×1920) IP camera designed for year-round outdoor use in areas with direct public access. Its durable metal housing is rated IK10 for protection against mechanical impact and IP66 for resistance to dust and moisture. The camera operates reliably in temperatures from –40 °C to +60 °C, features 4000 V TVS lightning protection, and includes integrated IR illumination with a range of up to 15 meters.
Parameters:
- Detection of people, vehicles, line crossing, and area entry/exit
- WDR 120 dB – enhances image quality in high-contrast lighting conditions
- 3D DNR – spatial noise reduction for clearer images
- Corridor mode – optimized for vertically oriented video
- 1/2.8" CMOS sensor with 0.003 lx sensitivity
- Fixed focal length lens (3.6 mm), horizontal viewing angle: 84°, vertical viewing angle: 60°, aperture: F/1.6
- Mechanical IR-cut filter for accurate image rendering under changing light conditions
- Video compression formats: H.265+, H.265, H.264
- Built-in microphone
- Two-way audio: audio input and audio output
- SD card slot supporting up to 256 GB (hot-swappable)
- Interfaces: network port, audio input, audio output, reset button
- Power supply: DC 12 V or PoE
- Maximum power consumption: 5.5 W
- Dimensions: Ø102.20 × 56.38 mm
- Weight: 310 g
