TR-D4S1 v2 3.6

Technical Specifications

WDR:

DWDR

Maximum video output resolution:

2560x1440

Image sensor:

1/3" CMOS

Bitrate (Mb/sec):

8

Power supply:

DC 12 V, PoE

Lens (mm):

3.6

Weight Net (kg):

0.205

Sensitivity:

0,005

Dimensions (mm):

Ø110x93.2

Power consumption, Watt:

6.8

Working temperature, C°:

-10…+50

Day/Night Mode:

Mechanic IR-filter

Network interfaces:

RJ-45
Overview

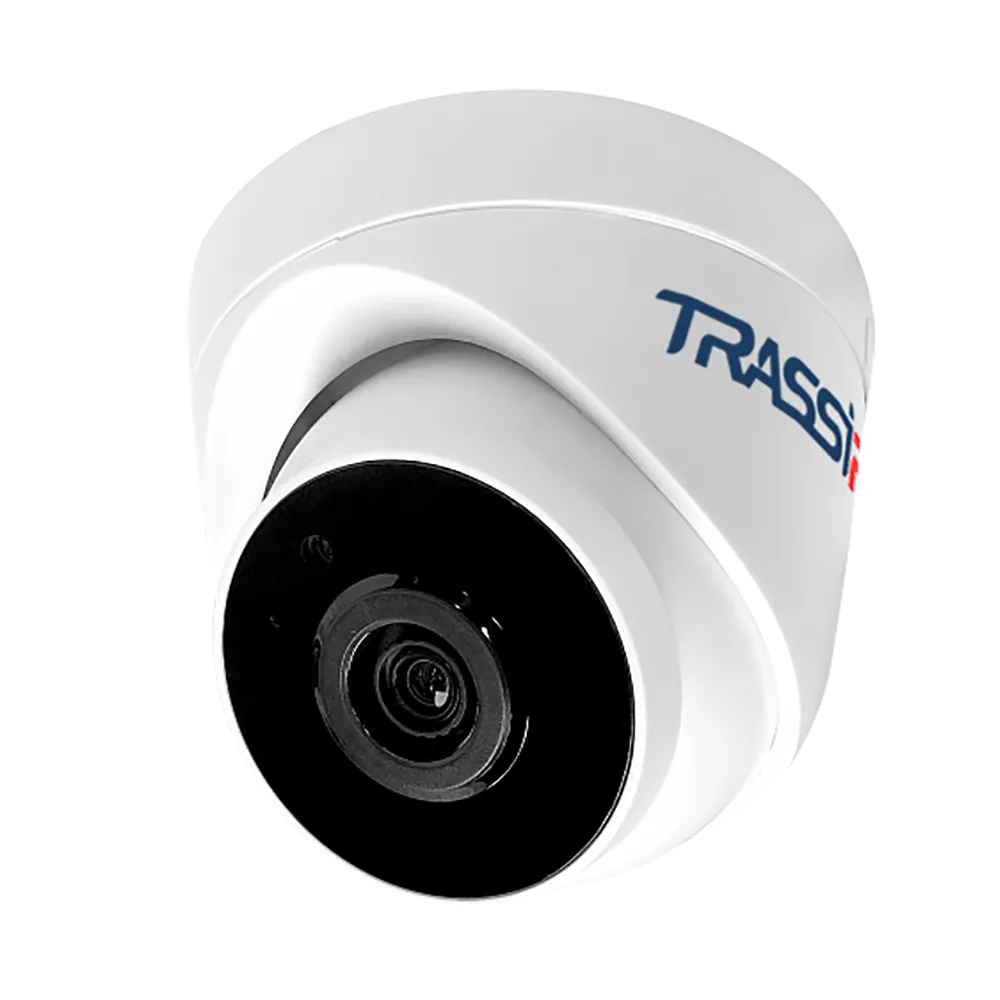

TRASSIR TR-D4S1 v2 (3.6 mm)

Indoor 4MP (2560 × 1440) IP camera suitable for night surveillance - equipped with IR illumination with a range of 20m.Supports detection of people, movement, virtual line crossing, intrusion into the area and exiting the area.


Functionality:

  • - WDR 105 dB - minimizing the effect of changes in the level of illumination on the picture quality.
  • - 3D DNR - spatial noise reduction.
  • - Corridor mode (vertically oriented video).
  • - Defog - Contrast enhancement to neutralize blur caused by fog.
  • - BLC - Back Light Compensation.
  • - Day / night mode with ICR: in sufficient light, the filter refracts IR rays, normalizing color rendition, and in the dark it is mechanically shifted away from the matrix to increase its sensitivity.
  • - Compression of H.265 +, H.265 and H.264.
  • - Broadcast speed - 25 fps. Bitrate - 8 Mbps.


Basics:

TR-D4S1 v2 (3.6 mm) is built on a 1/3 "CMOS sensor with a sensitivity of 0.005 lux. Equipped with a 3.6 mm fixed focal length lens, 77 ° horizontal viewing angle, 42 ° vertical viewing angle. Power supply - DC 12V, PoE . Operating temperatures - –10 ° C ... +50 ° C. Maximum power consumption - 3.4 W. Size - Ø110.0 × 93.2 mm. Weight - 205 g.
