TR-D2223WDZIR7 v3 2.7-13.5

Book A Demo How To Buy

Technical specifications

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/50,000 s

IR range:

up to 70 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

2MP

Form factor:

Bullet

Maximum video output resolution:

1920x1080

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

2.7 - 13.5 (motorzoom)

Net Weight (kg):

0.635 / 0.830

Sensitivity(Lux):

0.002Lux (F1.6)

Local storage:

MicroSD up to 512GB

Ingress protection:

IP67, IK08

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 4000V

Power PoE:

11.2W

Dimensions (mm):

234.3 x 77.5 x 75.3

Power consumption, Watt:

DC: 9.5W PoE: 11.2W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR

Network interfaces:

RJ-45

Field of view:

H100°- 30°±5°, V55°- 19°±5°

Class PoE :

802.3af/at

Video compression:

Н.265+ / Н.265 / H.264

Overview

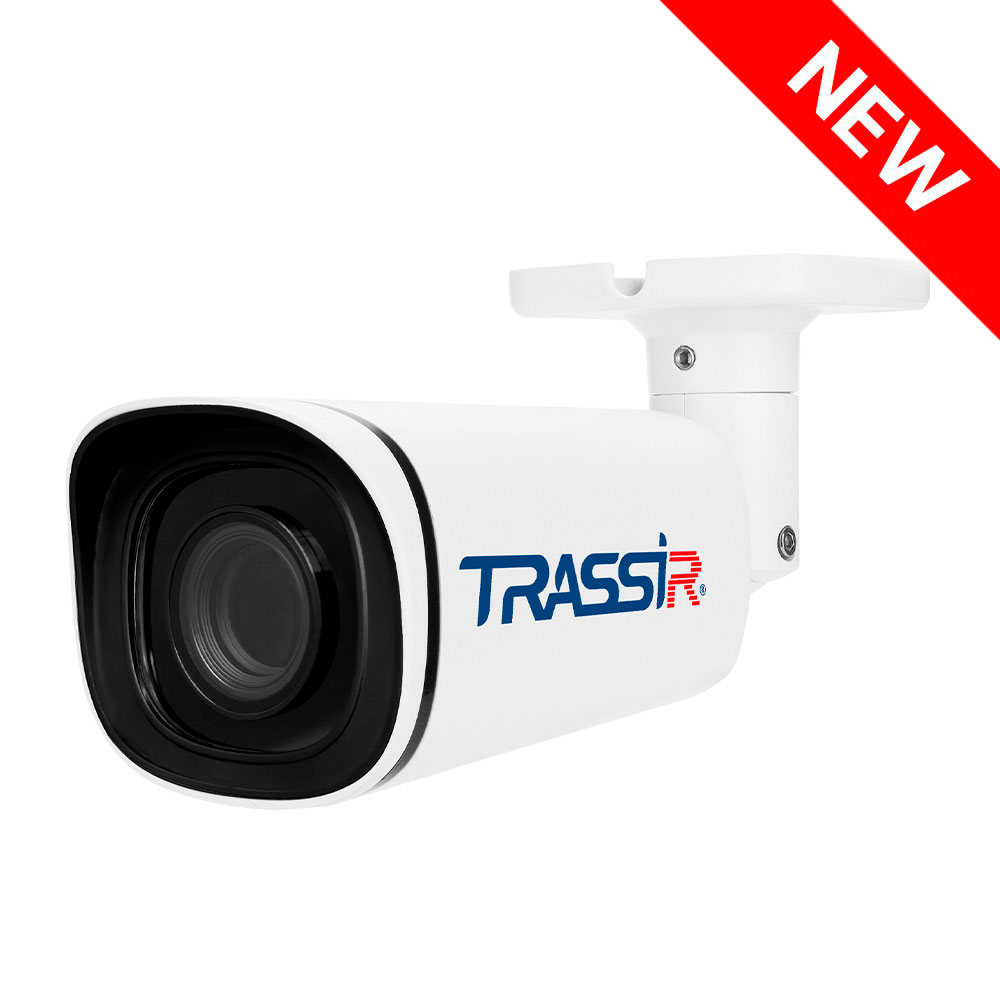

TRASSIR TR-D2223WDZIR7 v3 (2.7-13.5 mm)

TRASSIR TR-D2223WDZIR7 v3 2.7–13.5 is a bullet-style IP camera designed for outdoor video surveillance. It features a metal housing and a 1/2.8" 2 MP CMOS sensor, delivering video at a resolution of 1920 × 1080 with a main stream of up to 25 fps (50 Hz) or 30 fps (60 Hz) and a bitrate of up to 8 Mbps.

For poor lighting conditions, it provides a mechanical IR cut filter (Day/Night), high sensitivity of 0.002 lux (F1.6), Real WDR with a 120 dB dynamic range, 3D DNR noise reduction, and corridor mode. A motorized 2.7–13.5 mm varifocal lens (motorized zoom) allows precise scene adjustment, and IR illumination with a range of up to 70 meters ensures reliable monitoring in the dark.

The camera supports H.265+ / H.265 / H.264 compression standards and common network protocols, including RTSP and ONVIF. It is equipped with a built-in microphone, 1/1 alarm inputs/outputs, and supports local storage via a microSD card of up to 512 GB. Power can be supplied via PoE (802.3af) or 12 V DC.

The housing is rated IP67 for dust and water protection and IK08 for impact resistance. The camera operates in temperatures from −40 °C to +60 °C.

Documentation

TR-D2223WDZIR7 v3 2.7-13.5.pdf
