TR-D2151IR3 v7 3.6
Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/50,000 sIR range:
up to 35 mDigital noise Reduction:
3D DNRCorridor mode:
YesResolution:
5MPForm factor:
BulletMaximum video output resolution:
2560x1920Image sensor:
1/2.8" CMOSBitrate (Mb/sec):
up to 8MbpsPower supply:
PoE (802.3af) / 12V DCLens (mm):
3.6Net Weight (kg):
0.460 / 0.565Sensitivity(Lux):
0.003Lux (F1.6)Local storage:
MicroSD up to 256GBIngress protection:
IP67IR:
YesCase material:
MetalVideo input:
NoLightning protection:
TVS 4000VPower PoE:
6.7WDimensions (mm):
184.7 x 66.5 x 63.05Power consumption, Watt:
DC: 4.6W PoE: 6.7WWorking temperature, C°:
-40°C … +60°CDay/Night Mode:
Mechanical ICRNetwork interfaces:
RJ-45Field of view:
H84°, V60°Video compression:
Н.265+ / Н.265 / H.264

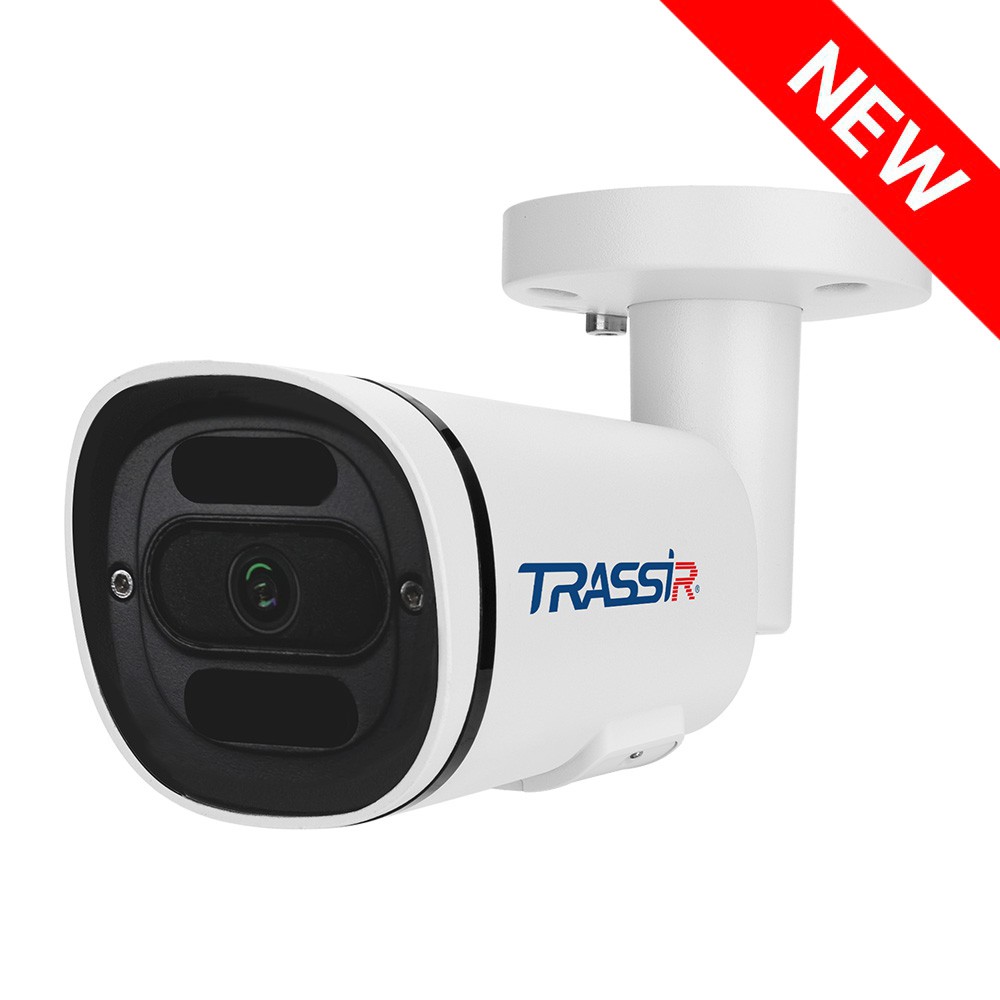

Designed for year-round outdoor use, the 5 MP (2560×1920) IP camera TRASSIR TR-D2151IR3 v7 3.6 features a metal housing protected against moisture and dust according to the IP67 standard. It operates within a temperature range of –40 °C to +60 °C and includes 4000 V TVS lightning protection.
Parameters:
- Blackface IR illumination technology
- Detection of people, vehicles, line crossing, and area entry and exit
- WDR 120 dB to reduce the effects of high-contrast lighting on image quality
- 3D DNR for spatial noise reduction
- Corridor mode for vertically oriented video capture
- 1/2.8" CMOS sensor with 0.003 lx sensitivity
- Fixed focal length lens: 3.6 mm focal length, 84° horizontal viewing angle, 60° vertical viewing angle, F/1.6 aperture
- Video compression codecs: H.265+, H.265, H.264
- Night surveillance with IR illumination up to 35 meters
- Local storage via SD card slot supporting up to 256 GB
- Two-way audio: built-in microphone, audio input, and audio output
- Power supply: DC 12 V or PoE
- Maximum power consumption: 6.7 W
- Dimensions: 184.67 × 66.50 × 63.05 mm
- Weight: 460 g
TR-D2151IR3 v7 3.6.pdf
