Technical specifications

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/50,000 s

IR range:

up to 35 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

5MP

Form factor:

Dome

Maximum video output resolution:

2560x1920

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

3.6

Net Weight (kg):

0.45 / 0.58

Sensitivity(Lux):

0.003Lux (F1.6)

Local storage:

MicroSD up to 256GB

Ingress protection:

IP66, IK10

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 4000V

Power PoE:

6.8W

Dimensions (mm):

Ø116.10 x 96.51

Power consumption, Watt:

DC: 4.1W PoE: 6.8W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR

Network interfaces:

RJ-45

Field of view:

H84°, V60°

Video compression:

Н.265+ / Н.265 / H.264

Overview

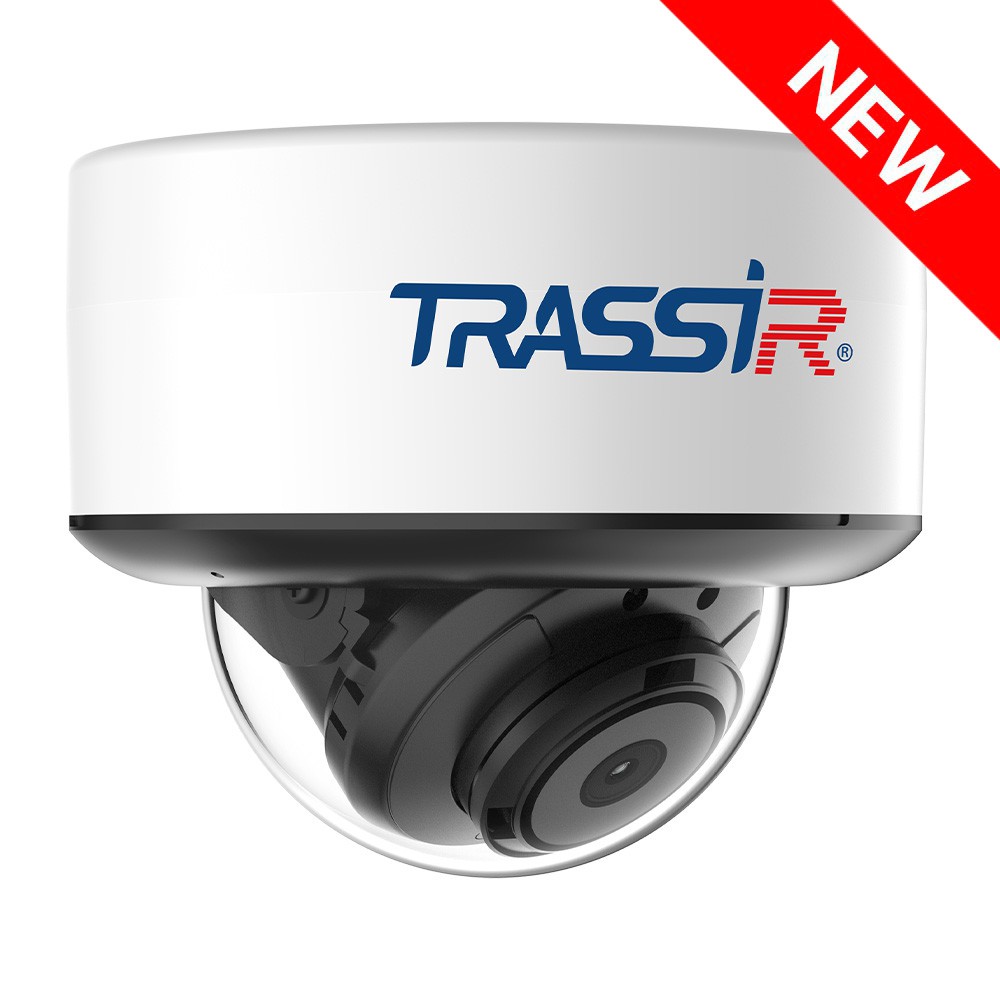

TRASSIR TR-D3151IR3 v7 (3.6 mm)

The TRASSIR TR-D3151IR3 v7 3.6 is a 5 MP (2560×1920) IP camera designed for outdoor use in locations with direct public access. It operates reliably year-round and around the clock, housed in a metal casing that is IK10-rated for protection against mechanical impacts and IP66-rated for resistance to dust and moisture. It supports operating temperatures from –40 °C to +60 °C, features 4000 V TVS lightning protection, and includes integrated IR illumination with a range of up to 35 meters.

Parameters:

Blackface IR illumination technology
Detection of people, vehicles, line crossing, area entry, and exit
WDR 120 dB for enhanced image clarity in high-contrast lighting conditions
3D DNR for spatial noise reduction
Corridor mode for vertically oriented image capture
1/2.8" CMOS sensor with 0.003 lx sensitivity
Fixed 3.6 mm lens with an 84° horizontal and 60° vertical viewing angle, F/1.6 aperture
Mechanical IR-cut filter to block infrared light in sufficient ambient lighting
Video compression formats: H.265+, H.265, H.264
Built-in microphone
Local storage via SD card slot supporting up to 256 GB (hot-swappable)
Interfaces: network port, audio input, audio output, reset button
Power supply: DC 12 V or PoE
Maximum power consumption: 6.8 W
Dimensions: Ø116.10 × 96.51 mm
Weight: 450 g
