TR-W2B5 2.8

Technical Specifications

WDR:

WDR (105 dB)

Maximum video output resolution:

1920x1080

Image sensor:

1/2.9" CMOS

Bitrate (Mb/sec):

8

Power supply:

DC 5 V

Lens (mm):

2.8

Weight Net (kg):

0.31

Sensitivity:

0,005

Local storage:

microSD up to 128 GB

Ingress protection:

IP66

Case material:

Plastic

Power supply, V:

5V DC

Dimensions (mm):

96.60×75.00×86.49

Power consumption, Watt:

5,5

Working temperature, C°:

-40°C ... +60°C

Day/Night Mode:

Mechanic IR-filter
Overview
Verify availability with PM!

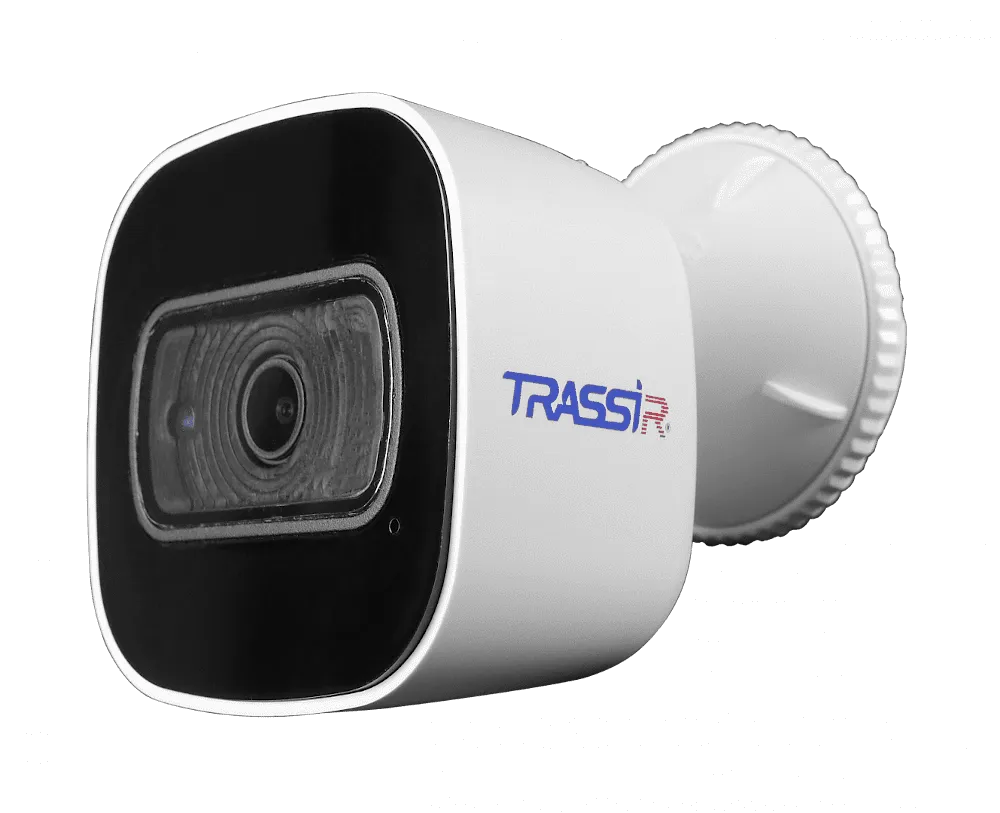

Budget compact 2MP WiFi-camera. 1/2.9" CMOS 2MP sensor, FullHD 1920*1080 resolution @ 25 fps, sensitivity: 0.005Lux (F1.8) / 0Lux (IR on), Day/Night (mechanical ICR), 2.8 mm lens,  H.265 codec, Real WDR (105dB), built-in microphone/speaker, local storage (recording on microSD up to 128 GB),  5V DC (1.5A), -40°C ... +60°C, IP66, IR range up to 20m.
