TR-D2151IR3 v2 3.6

Technical specifications

Audio:

Built-in microphone

WDR:

RWDR 120 dB

Resolution:

5MP

Form factor:

Bullet

Wi-Fi:

-

Maximum video output resolution:

2560x1920

Bitrate (Mb/sec):

8

Power supply:

12V DC

Lens (mm):

3.6

Net Weight (kg):

0.460

Sensitivity(Lux):

0,003

Local storage:

microSD up to 128 GB

Ingress protection:

IP67

IR:

Yes

Case material:

Metal

Lightning protection:

TVS 4000V

Dimensions (mm):

184.67x66.50x63.05

Power consumption, Watt:

4.9

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanic IR-filter

Video compression:

Н.265+ / Н.265 / H.264
Overview

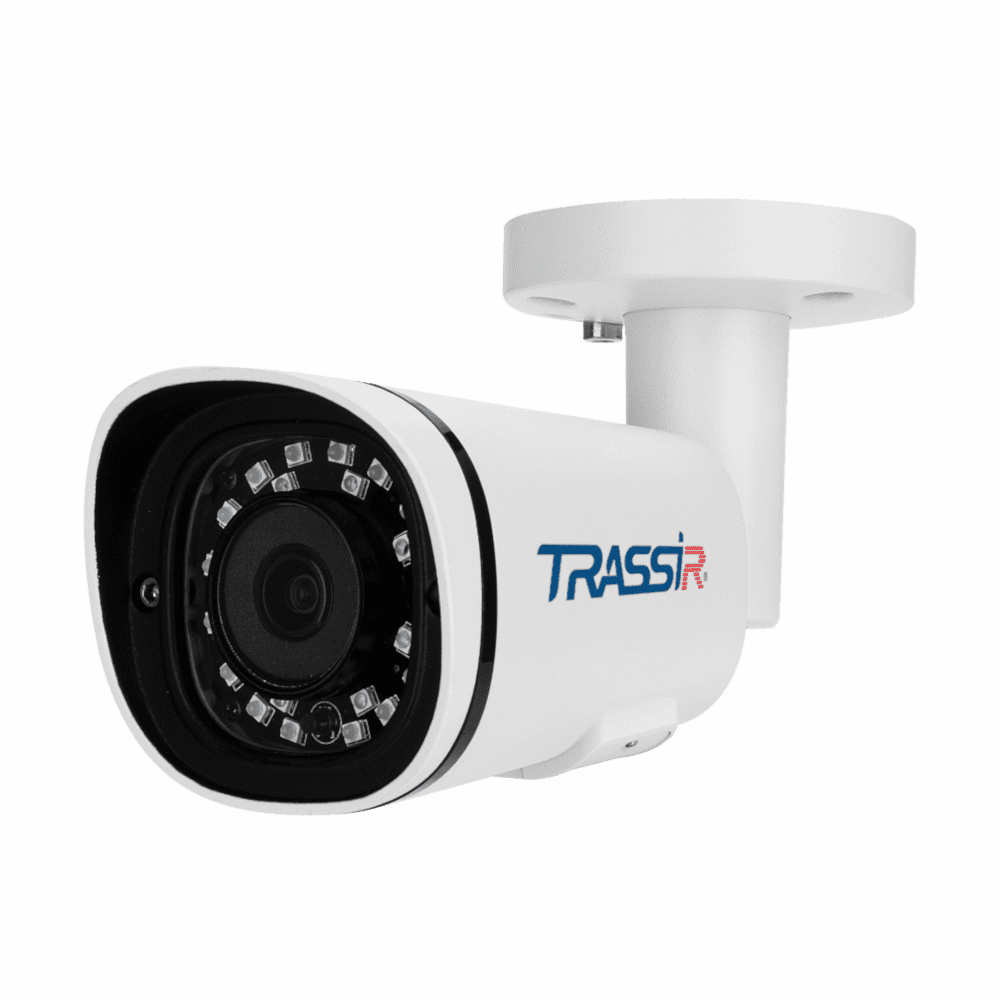

5 MP (2560×1920) TRASSIR TR-D2151IR3 v2 3.6 IP camera is adapted for outdoor use regardless of the season: housing protection against moisture and dust - IP67, operating temperatures from -40 °C ... +60 °C, lightning protection - TVS 4000V.


Functionality


  • Motion detection, people.

  • Detection of crossing of virtual lines, intrusion into prohibited areas and exiting from the area.

  • WDR 120 dB - Reduces the effect of different contrast lighting on image quality.

  • 3D DNR - spatial noise reduction.

  • Corridor mode - shooting in vertically oriented resolution.

  • Defog - increase the contrast to eliminate the effect introduced by fog, smoke.

  • BLC - backlight compensation.

  • IR illumination with a range of 35 m.

  • Compression H.265+, H.265, H.264.



Basics


The TR-D2151IR3 v2 3.6 is built on a 1/2.8-inch CMOS sensor with 0.003 lux sensitivity. Supports day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor to increase its sensitivity. Streams at 25 frames per second. Bitrate - 8 Mbps. Equipped with a fixed lens (focal length - 2.8 mm, horizontal viewing angle - 96°, vertical - 69°, aperture - F / 1.8), RJ-45 network port, integrated microphone, slot for microSD up to 128 GB. Power supply - DC 12 V, PoE. The maximum power consumption is 5.5 W. Size - 184.67 × 66.50 × 63.05 mm. Weight - 460 g.
