TR-D2153ZIR6 v7 2.7–13.5
Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/50,000 sIR range:
up to 60 mDigital noise Reduction:
3D DNRCorridor mode:
YesResolution:
5MPForm factor:
BulletMaximum video output resolution:
2560x1920Image sensor:
1/2.8" CMOSBitrate (Mb/sec):
up to 8MbpsPower supply:
PoE (802.3af) / 12V DCLens (mm):
2.7 - 13.5 (motorzoom)Net Weight (kg):
0.635 / 0.830Sensitivity(Lux):
0.003Lux (F1.6)Local storage:
MicroSD up to 256GBIngress protection:
IP67, IK08IR:
YesCase material:
MetalVideo input:
NoLightning protection:
TVS 4000VPower PoE:
12.5WDimensions (mm):
234.3 x 77.5 x 75.3Power consumption, Watt:
DC: 10.5W PoE: 12.5WWorking temperature, C°:
-40°C … +60°CDay/Night Mode:
Mechanical ICRNetwork interfaces:
RJ-45Field of view:
H93°- 29°, V69°- 22°Video compression:
Н.265+ / Н.265 / H.264

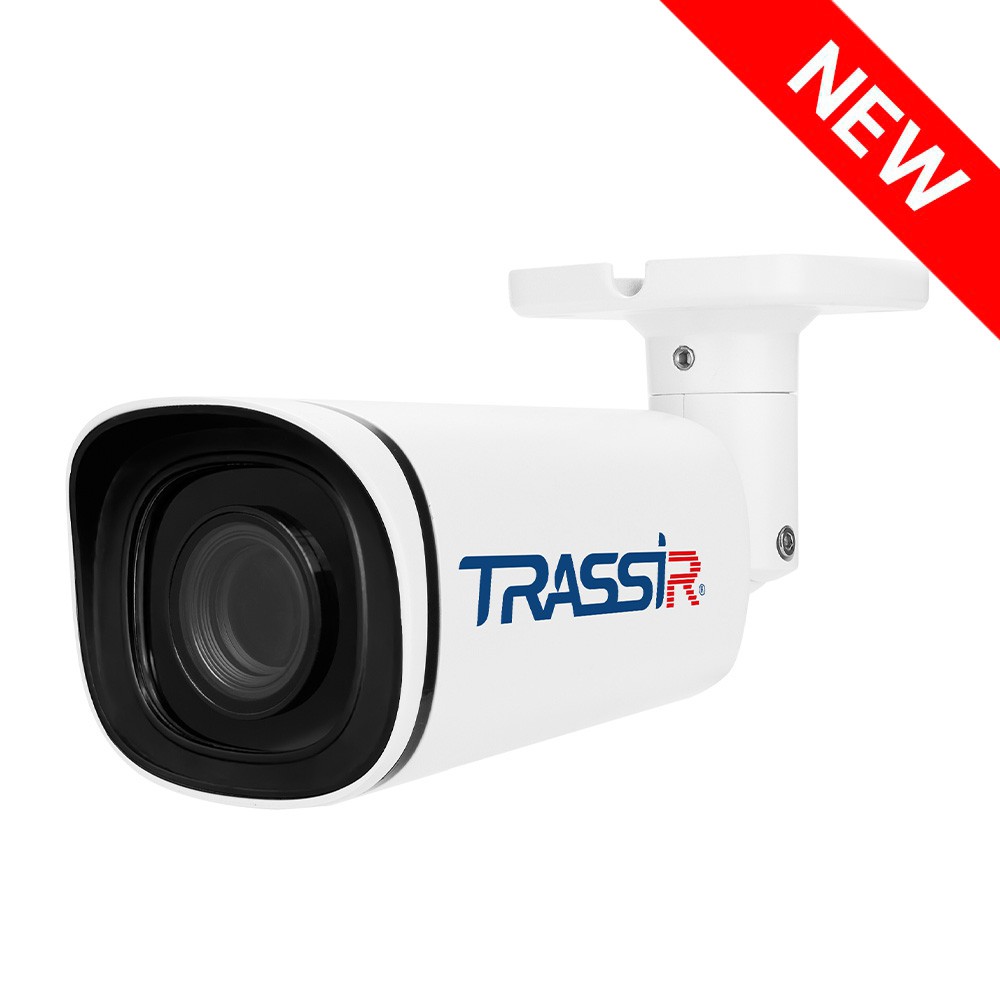

The shockproof (IK08) 5 MP IP camera TRASSIR TR-D2153ZIR6 v7 2.7–13.5 is housed in a metal casing and protected against moisture and dust according to the IP67 standard. Combined with an operating temperature range of –40 °C to +60 °C and 4000 V TVS lightning protection, it ensures reliable outdoor operation all year round.
Parameters:
- Blackface IR illumination technology
- Detection of people, vehicles, line crossing, area entry, and exit
- WDR 120 dB for improved image quality in high-contrast lighting
- 3D DNR for spatial noise reduction
- Corridor mode for vertically oriented video
- 1/2.8" CMOS sensor with 0.003 lx sensitivity
- Motorized varifocal lens (2.7–13.5 mm), horizontal viewing angle: 93°–29°, vertical viewing angle: 69°–22°, aperture: F/1.6
- Video compression: H.265+, H.265, H.264
- IR illumination for night surveillance up to 60 meters
- Local storage: SD card slot supporting up to 256 GB
- Two-way audio: built-in microphone, audio input, and output
- Power supply: DC 12 V or PoE
- Maximum power consumption: 12.5 W
- Dimensions: 234.3 × 77.5 × 75.3 mm
- Weight: 635 g
TR-D2153ZIR6 v7 2.7–13.5.pdf
