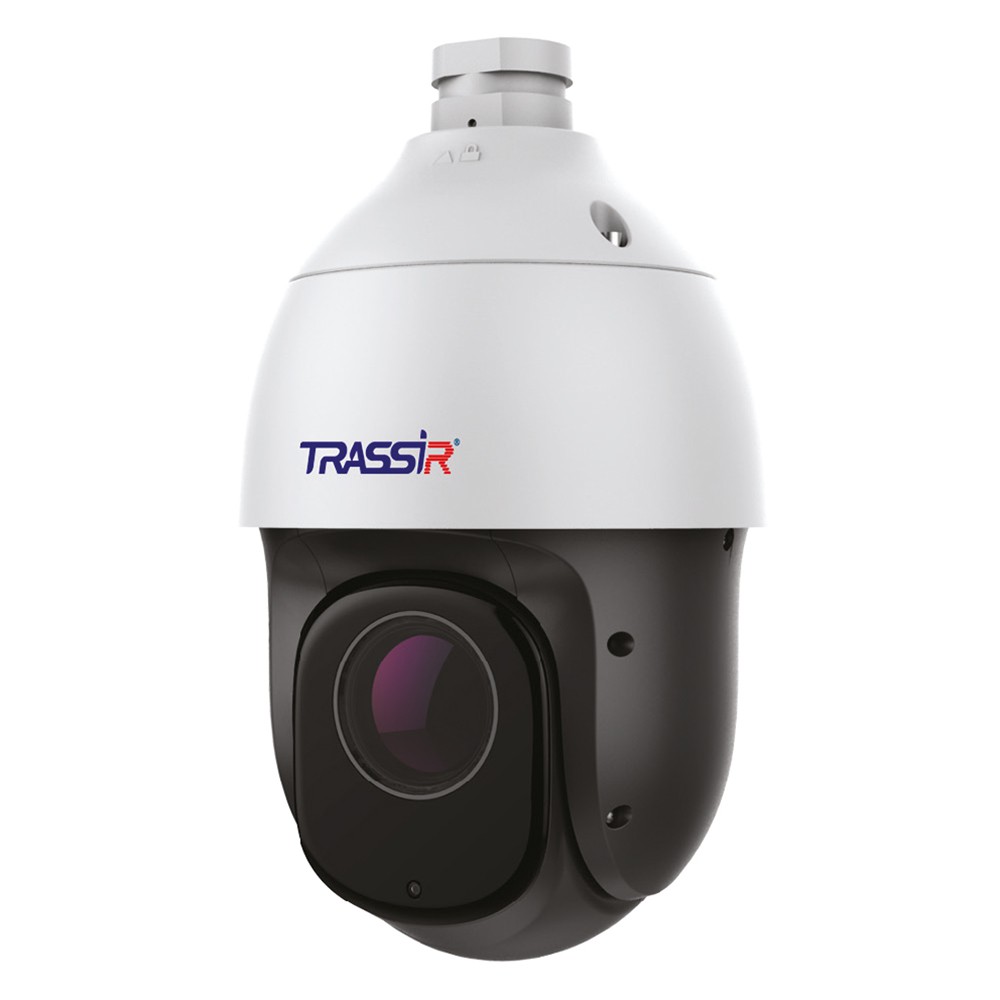

TR-D6224IR15 v3 4.8–120
Technical specifications
Audio:
Audio-inAudio-out
WDR:
WDR (140 dB)Resolution:
2MPForm factor:
PTZ speed domeWi-Fi:
-Maximum video output resolution:
1920x1080Image sensor:
1/2.8" CMOSBitrate (Mb/sec):
16Archive, Tb:
up to 512GBPower supply:
12V DCLens (mm):
4.8 - 120 (motorzoom)Net Weight (kg):
3Local storage:
microSD/SDHC/SDXC up to 256 GBIngress protection:
IP66IR:
YesCase material:
AluminumDimensions (mm):
160×295Power consumption, Watt:
PoE: 22W (IR on), DC: 22W (IR on)Working temperature, C°:
-30°C ... +70°C (IR on)Day/Night Mode:
Mechanical ICRClass PoE :
802.3af/atVideo compression:
H.265+, H.264+, H.265, H.264Overview
Key features
• Wide dynamic range (Real WDR 140dB);
• IR range up to 150 meters;
• Built-in video archive (Edge Storage) – local recording on MicroSD card* up to 512GB*
• IVS: Human detection; Line crossing; Intrusion detection / Abandoned / Missing objects detection; Motor vehicle/Non-motor vehicle detection;
• Two-way audio channel (1 in / 1 out);
• Alarm IN/OUT (1/1);
• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, PPPoE, NTP, UPnP, SMTP, QoS, IPV4, MULTICAST, RTMP, ONVIF protocols;
• IP66 weather-tight case;
• Power supply 12V DC or PoE.
___________________________
* MicroSD card is not included into camera package
• Wide dynamic range (Real WDR 140dB);
• IR range up to 150 meters;
• Built-in video archive (Edge Storage) – local recording on MicroSD card* up to 512GB*
• IVS: Human detection; Line crossing; Intrusion detection / Abandoned / Missing objects detection; Motor vehicle/Non-motor vehicle detection;
• Two-way audio channel (1 in / 1 out);
• Alarm IN/OUT (1/1);
• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, PPPoE, NTP, UPnP, SMTP, QoS, IPV4, MULTICAST, RTMP, ONVIF protocols;
• IP66 weather-tight case;
• Power supply 12V DC or PoE.
___________________________
* MicroSD card is not included into camera package
Documentation
TR-D6224IR15v3_passport_en.pdf
