TR-D2223WDZIR7 v2 2.7-13.5

Technical specifications

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

RWDR 120 dB

Resolution:

2MP

Form factor:

Bullet

Wi-Fi:

-

Maximum video output resolution:

1920x1080

Image sensor:

1/1.8" CMOS

Bitrate (Mb/sec):

8

Power supply:

12V DC

Lens (mm):

2.7 - 13.5

Net Weight (kg):

0.635

Sensitivity(Lux):

0,003

Local storage:

microSD up to 128 GB

Ingress protection:

IP67

Case material:

Metal

Lightning protection:

TVS 4000V

Dimensions (mm):

234.33x77.5x73.4

Power consumption, Watt:

7.8

Working temperature, C°:

-40°C ... +60°C

Day/Night Mode:

Mechanic IR-filter

Video compression:

Н.265+ / Н.265 / H.264
Overview

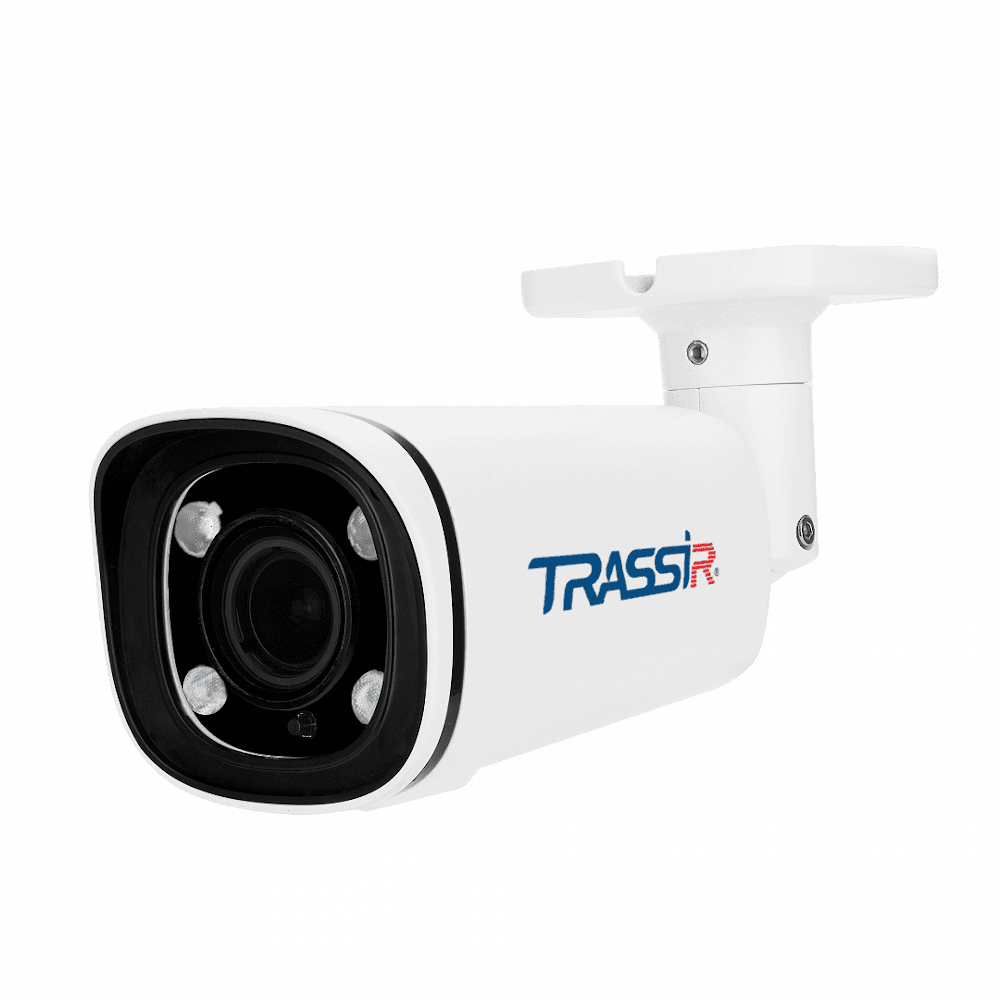

Shock-resistant (IK08) 2 MP (1920×1080) IP camera TRASSIR TR-D2223WDZIR7 v2 2.7–13.5 is adapted for outdoor use at any time of the year — under the direct influence of precipitation: the body is made of metal, protected from moisture and dust according to the IP67 standard, operating temperatures from -40 °C ... +60 °C, lightning protection - TVS 4000 V.


Functionality

  • Built-in microphone.
  • Detect motion, people, line crossing, zone intrusion, loitering, traffic, people counting.
  • WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
  • 3D DNR - spatial noise reduction.
  • Corridor mode - shooting in vertically oriented resolution.
  • Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
  • BLC - backlight compensation.
  • IR illumination with a range of 70 m.
  • Compression H.265+, H.265, H.264. Bitrate - 8 Mbps.
  • The broadcast speed and resolution of the main stream is 25 fps 1920×1080, 1280×960, 1280×720, the secondary stream is 25 fps 704×576, 640×480, 640×360, 352×288.


Basics

TR-D2223WDZIR7 v2 2.7–13.5 is built on a 1/2.8-inch CMOS sensor with 0.003 lux sensitivity. Supports day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor to increase its sensitivity. Equipped with a motorized lens (focal length - 2.7 ~ 13.5 mm, horizontal viewing angle - 101 ° ~ 30 °, vertical - 55 ° ~ 18 °, aperture - F / 1.3), RJ-45 network port, audio input, audio output, alarm input and output, slot for microSD up to 128 GB. Power supply - DC 12 V, PoE. The maximum power consumption is 9.1 W. Size - 234.33 × 77.50 × 73.40 mm. Weight - 635 g.
