TR-D8251WDCL3 4.0

Technical specifications

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

RWDR 120 dB

Frame rate:

20

Electronic shutter speed:

1/2 ~ 1/1 000 s

IR range:

30m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

5MP

Form factor:

Sphere

Wi-Fi:

-

Maximum video output resolution:

2880x1632

Image sensor:

1/2.7" CMOS

Bitrate (Mb/sec):

8

Power supply:

12V DC

Lens (mm):

4

Net Weight (kg):

0.400

Sensitivity(Lux):

0,0015

Local storage:

microSD up to 128 GB

Ingress protection:

IP66

Case material:

Metal

Lightning protection:

TVS 4000V

Dimensions (mm):

Ø93 x 92.2

Power consumption, Watt:

3.6

Working temperature, C°:

-40°C ... +60°C

Day/Night Mode:

FTC

Video compression:

Н.265+ / Н.265 / H.264
Overview

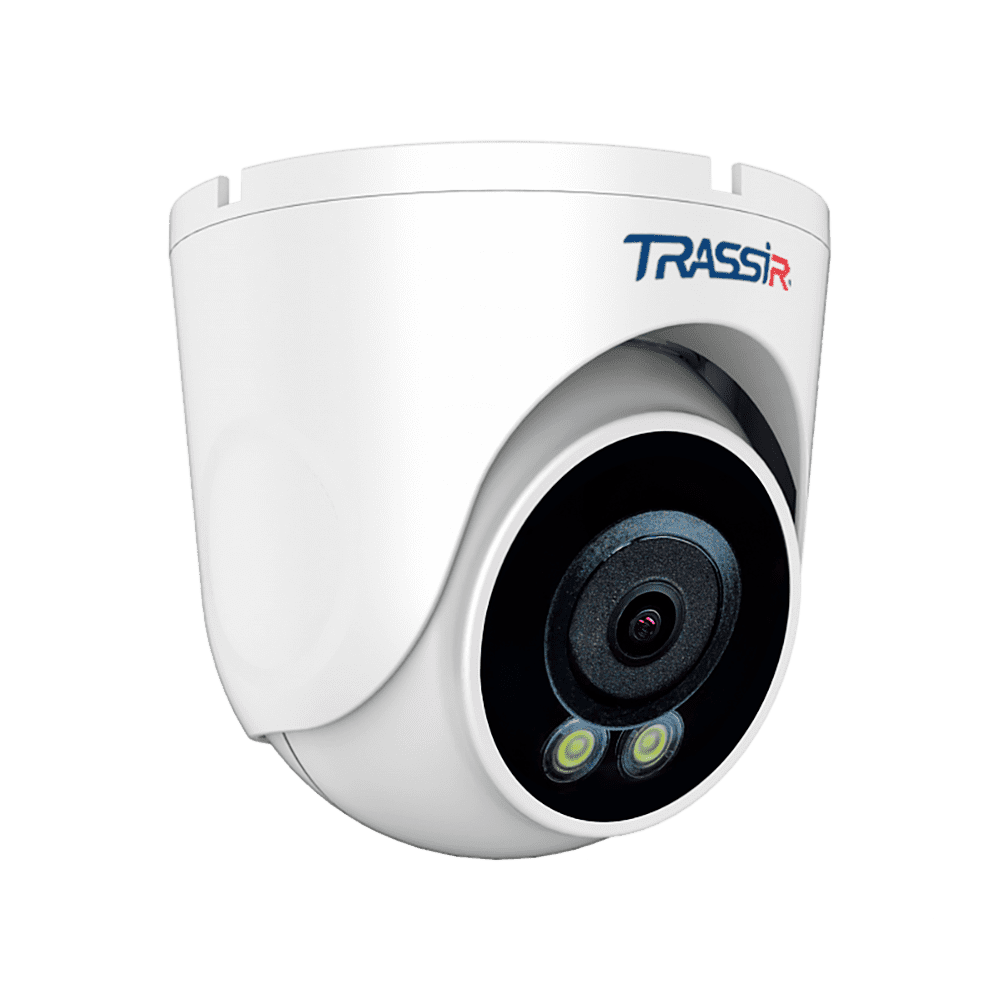

5 MP (2880 × 1632) TRASSIR TR-D8251WDCL3 4.0 IP camera is adapted for outdoor use at any time of the year and day - in places of direct access under the influence of precipitation: protection of the case from moisture and dust - IP66, from mechanical influences - IK10, working temperatures - -40 °C ... +60 °C, lightning protection - TVS 4000 V, range of the integrated backlight - 30 m.

Functionality

  • Software motion detection, people, faces, cars.
  • Detection of virtual line crossing, area intrusion, area exit, loitering.
  • People counting.
  • Built-in microphone.
  • WDR 120dB - Minimizes the effect of different contrast lighting on image quality.
  • 3D DNR - spatial noise reduction.
  • Corridor Mode - Supports vertical resolution with a 9:16 aspect ratio.
  • Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
  • ROI - fixing on the selected area and a parallel decrease in resolution in other parts of the frame.
  • BLC - backlight compensation.
  • Frame rate - 25 fps, bit rate - 8 Mbps
  • Compression H.265+, H.265, H.264.


Basics

TR-D8251WDCL3 4.0 is equipped with a 4.0mm fixed focal length lens with a 101° horizontal and 58° vertical field of view. Equipped with RJ-45 network port, audio input, audio output, alarm input, alarm output, microSD slot up to 128 MB, power connector. Power supply - DC 12 V, PoE. The maximum power consumption is 4.5 W. Size - Ø93.0×92.2 mm. Weight - 400 g.
