TR-D2253WDZDL7 v3 2.7–13.5

TR-D2253WDZDL7 v3 2.7–13.5

Book A Demo How To Buy

Technical specifications

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/1 000 s

IR range:

up to 70 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

5MP

Form factor:

Bullet

Maximum video output resolution:

2592x1920

Image sensor:

1/1.8" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

2.7 - 13.5 (motorzoom)

Net Weight (kg):

0.635 / 0.830

Sensitivity(Lux):

0 Lux (F1.0)

Local storage:

MicroSD up to 256GB

Ingress protection:

IP67, IK08

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 4000V

Power PoE:

13W

Dimensions (mm):

234.3 x 77.5 x 73.4

Power consumption, Watt:

DC: 8.1W PoE: 13W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

FTC

Network interfaces:

RJ-45

Field of view:

H101.8°- 49.1°±5°, V54.1°- 28.8°±5°

Video compression:

Н.265+ / Н.265 / H.264 / MJPEG

Overview

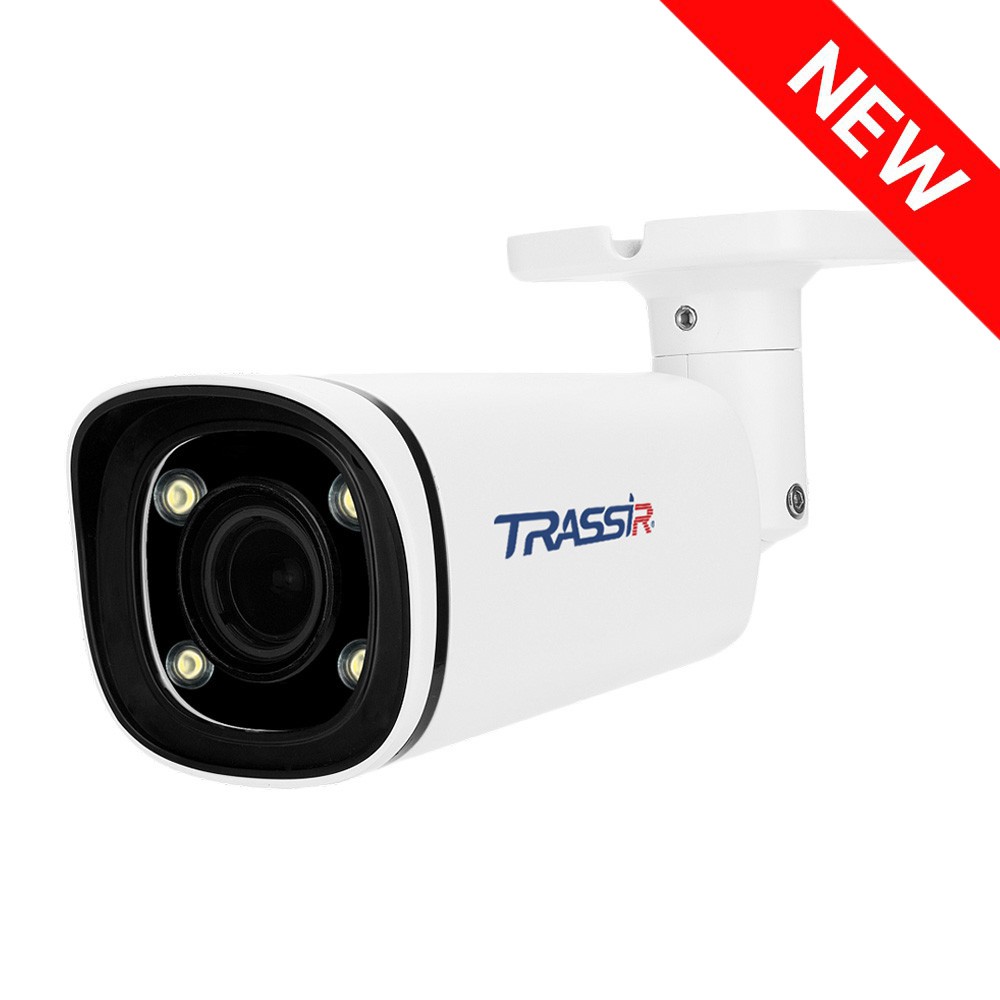

TRASSIR TR-D2253WDZDL7 v3 (2.7–13.5 mm)

The shockproof (IK08) 5 MP (2592 × 1920) IP camera TRASSIR TR-D2253WDZDL7 v3 2.7–13.5 is designed for reliable outdoor use in all weather conditions. Its metal housing is protected against dust and moisture in compliance with the IP67 standard. The camera supports an operating temperature range of –40 °C to +60 °C and includes TVS 4000 V lightning protection.

Parameters:

Detection of faces, people, vehicles; line crossing; zone entry/exit; loitering; people counting
Combined IR and LED illumination with a range of 70 m and strobe function
WDR 120 dB – reduces the effect of high-contrast lighting
3D DNR – spatial noise reduction
24/7 color video recording
Corridor mode – vertically oriented video for narrow areas
Video compression formats: H.265+, H.265, H.264, MJPEG
Local storage – SD card slot (up to 256 GB)
Built-in microphone
