TR-D2121IR3 v6 2.8

Technical Specifications

WDR:

WDR (120 dB)

Maximum video output resolution:

1920x1080

Image sensor:

1/2.7" CMOS

Bitrate (Mb/sec):

8

Power supply:

DC 12 V, PoE

Lens (mm):

2.8

Weight Net (kg):

0.46

Sensitivity:

0,005

Ingress protection:

IP67

Dimensions (mm):

183.3x67.3x63.9

Power consumption, Watt:

3.9

Working temperature, C°:

-40…+60

Day/Night Mode:

Mechanic IR-filter

Network interfaces:

RJ-45
Overview

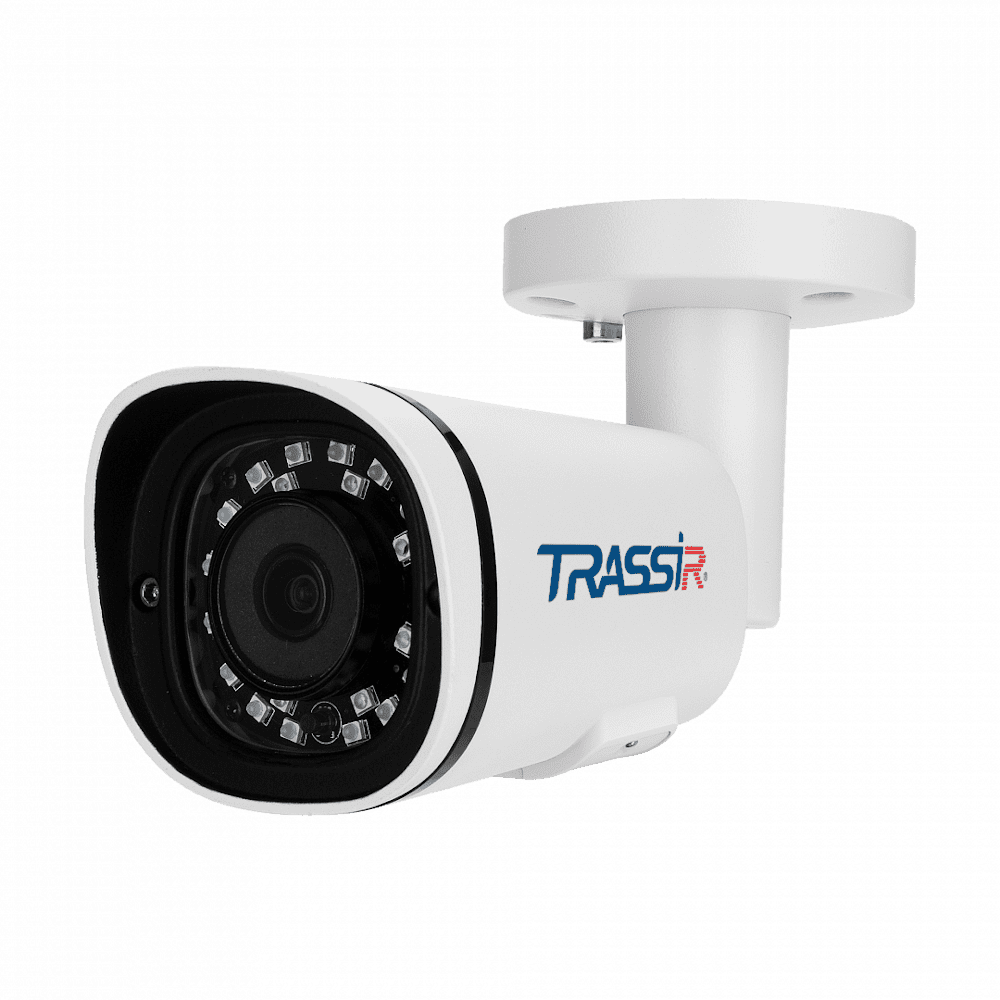

TRASSIR TR-D2121IR3 v6 (2.8 mm)

2 megapixel (1920 × 1080) IP-camera is designed taking into account the conditions of round-the-clock year-round outdoor operation: the metal case is protected from moisture and dust according to the IP67 standard, operating temperatures - –40 ° C ... +60 ° C, lightning protection - TVS 4000 V, range integrated lighting action - 35 m.


Functionality:

  • - Built-in microphone.
  • - Detection of people.
  • - Motion detection.
  • - Area control (detection of intrusion / exit from the zone).
  • - Detection of crossing the virtual line.
  • - WDR 120 dB - neutralization of the influence of changes in the level of illumination on the picture quality.
  • - 3D DNR - spatial noise reduction.
  • - Corridor mode - vertical resolution shooting with an aspect ratio of 9:16.
  • - Defog - increase the contrast to minimize the effect of fog and smoke.
  • - BLC - Backlight Compensation.
  • - Day / night mode with ICR, with sufficient illumination to block the rays of the infrared range to normalize color reproduction; in the dark, the filter is shifted to the side to expand the matrix's sensitivity to the infrared range and work the backlight.
  • - Compression with H.265 +, H.264 +, H.265, H.264 codecs.
  • - Broadcast speed - 25 fps.

Basics:

The TR-D2121IR3 v6 (2.8 mm) is equipped with a 2.8 mm fixed focal length lens, 82 ° horizontal field of view, 44 ° vertical field, F / 1.8 aperture. Equipped with an RJ-45 network port, a microSD slot with a capacity of up to 128 GB, a power connector. Power Supply - 12V DC or PoE. The maximum power consumption is 3.9 W. Dimensions - 183.3 × 67.3 × 63.9 mm. Weight - 460 g.
