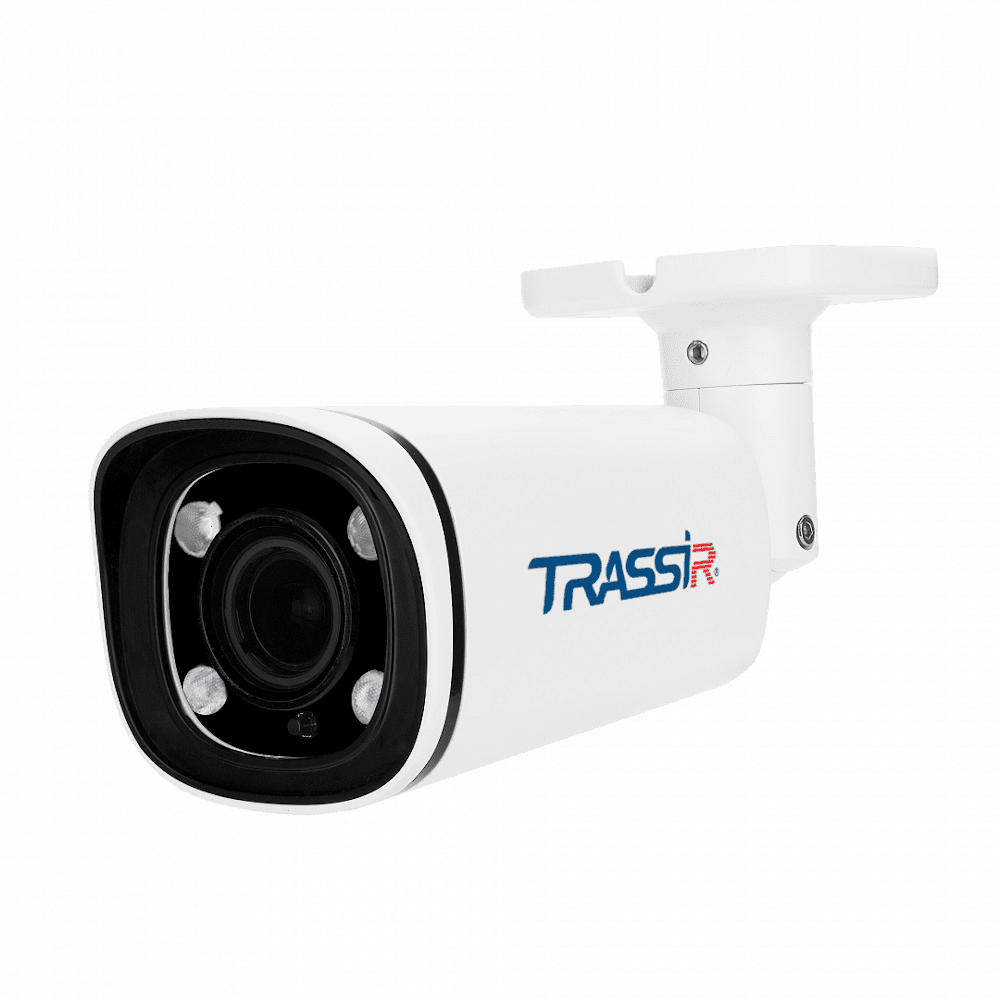

TR-D2253WDZIR7 v2 2.7-13.5

Technical specifications

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

RWDR 120 dB

Frame rate:

25

Electronic shutter speed:

1/2 ~ 1/1 000 s

IR range:

70m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

5MP

Form factor:

Bullet

Wi-Fi:

-

Maximum video output resolution:

2592x1920

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

8

Power supply:

12V DC

Lens (mm):

2.7 - 13.5 (motorzoom)

Net Weight (kg):

0.635

Sensitivity(Lux):

0,002

Local storage:

microSD up to 128 GB

Ingress protection:

IP67

IR:

Yes

Case material:

Metal

Lightning protection:

TVS 4000V

Dimensions (mm):

234.33x77.5x73.4

Power consumption, Watt:

8.3

Working temperature, C°:

-40°C ... +60°C

Day/Night Mode:

Mechanic IR-filter

Video compression:

Н.265+ / Н.265 / H.264+ / H.264
Overview
Shock-resistant (IK08) 5 MP (2592×1920) TRASSIR TR-D2253WDZIR7 v2 2.7–13.5 IP camera is designed for year-round outdoor use: protection against moisture and dust - IP67, operating temperatures from -40 °C ... +60 ° C, lightning protection - TVS 4000 V.

Functionality

Motion detection, faces (optional), cars.
People counting.
Detection of virtual line crossing, area intrusion, area exit, loitering.
WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
3D DNR - spatial noise reduction.
Corridor mode - hardware support for vertical resolution.
Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
BLC - backlight compensation.
IR illumination with a range of 70 m.
Compression H.265+, H.265, H.264+, H.264.

Basics

TR-D2253WDZIR7 v2 2.7–13.5 is equipped with a motorized lens with a focal length of 2.7 ~ 13.5 mm, horizontal field of view 93° ~ 29°, vertical field of view 69° ~ 22°, aperture F/1.3. Equipped with RJ-45 network port, audio input, audio output and integrated microphone, alarm input and alarm output, microSD slot up to 128 MB. Power Supply – 12V DC or PoE. The maximum power consumption is 9.6 W. Size - 234.33 × 77.50 × 73.40 mm. Weight - 635 g.
