TR-D2253WDZIR7 v3 2.7-13.5
Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/12,500 sIR range:
up to 70 mDigital noise Reduction:
3D DNRCorridor mode:
YesResolution:
5MPForm factor:
BulletMaximum video output resolution:
2592x1920Image sensor:
1/2.8" CMOSBitrate (Mb/sec):
up to 8MbpsPower supply:
PoE (802.3af) / 12V DCLens (mm):
2.7 - 13.5 (motorzoom)Net Weight (kg):
0.635 / 0.830Sensitivity(Lux):
0.002Lux (F1.3)Local storage:
MicroSD up to 512GBIngress protection:
IP67, IK08IR:
YesCase material:
MetalVideo input:
NoLightning protection:
TVS 4000VPower PoE:
12.2WDimensions (mm):
234.3 x 77.5 x 75.3Power consumption, Watt:
DC: 9.2W PoE: 12.2WWorking temperature, C°:
-40°C … +60°CDay/Night Mode:
Mechanical ICRNetwork interfaces:
RJ-45Field of view:
H94°- 28°±5°, V70°- 22°±5°Class PoE :
802.3af/atVideo compression:
Н.265+ / Н.265 / H.264

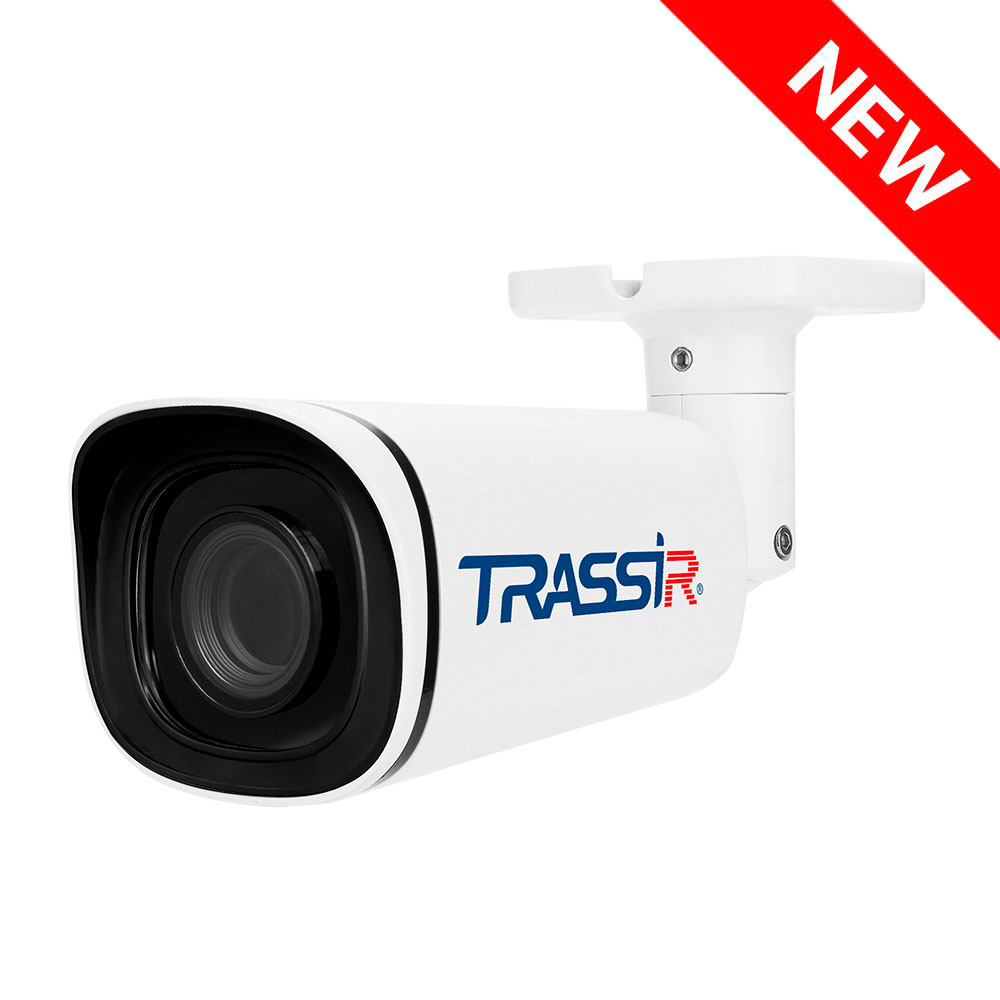

The TRASSIR TR-D2253WDZIR7 v3 2.7–13.5 IP camera is designed for outdoor video surveillance and security systems, delivering detailed 5 MP images at a resolution of 2592 × 1920. This bullet-style camera features a 2.7–13.5 mm varifocal lens with motorized zoom and IR illumination with a range of up to 70 meters, simplifying scene setup and enabling reliable low-light monitoring.
A mechanical IR cut filter, Real WDR with a dynamic range of 120 dB, 3D DNR noise reduction, and corridor mode ensure stable performance in challenging lighting and environmental conditions. The camera supports H.265+ / H.265 / H.264 video compression with bitrates of up to 8 Mbps, as well as streaming at up to 25/30 fps depending on the selected mode.
Built-in video analytics include people detection, line crossing detection, area intrusion monitoring, visitor counting, and vehicle and face detection. Network connectivity and power are provided via PoE (802.3af) or 12 V DC, and local storage is supported via a microSD card with a capacity of up to 512 GB.
The metal housing is rated IP67 for dust and water protection and IK08 for impact resistance. The camera is designed to operate in temperatures from −40 °C to +60 °C and is backed by a 5-year warranty.
TR-D2253WDZIR7 v3 2.7-13.5.pdf
