TR-D8251WDDL3 v3 2.8

TR-D8251WDDL3 v3 2.8

Book A Demo How To Buy

Technical specifications

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/1 000 s

IR range:

up to 30 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

5MP

Form factor:

Sphere

Maximum video output resolution:

2592x1920

Image sensor:

1/1.8" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

2.8

Net Weight (kg):

0.40 / 0.49

Sensitivity(Lux):

0 Lux (F1.0)

Local storage:

MicroSD up to 256GB

Ingress protection:

IP66, IK10

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 4000V

Power PoE:

Dimensions (mm):

Ø93 x 92.2

Power consumption, Watt:

DC: 5.1W PoE: 9W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

FTC

Network interfaces:

RJ-45

Field of view:

H108.1°±5°, V53°± 5°

Video compression:

Н.265+ / Н.265 / H.264 / MJPEG

Overview

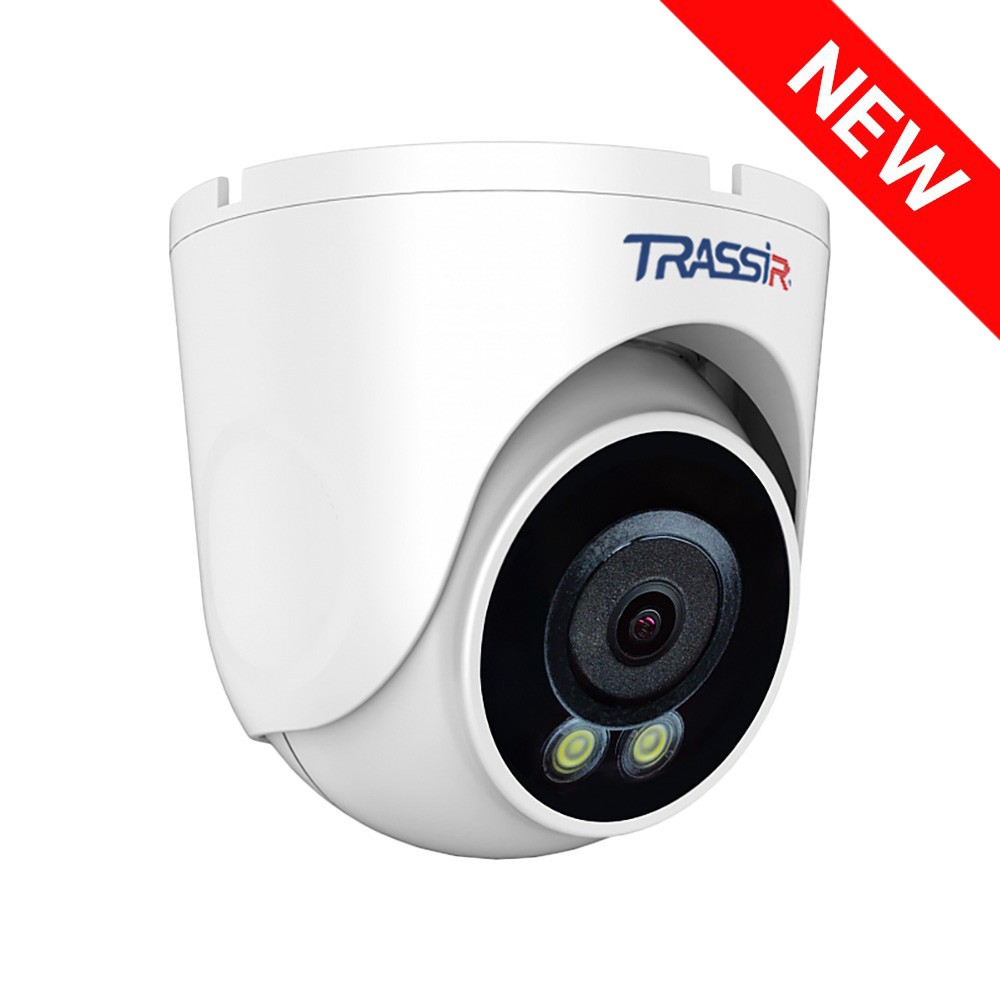

TRASSIR TR-D8251WDDL3 v3 (2.8 mm)

The 5 MP (2592 × 1920) IP camera TRASSIR TR-D8251WDDL3 v3 2.8 is designed for reliable outdoor operation throughout the year, including in areas with direct public access. The metal housing offers IP66 protection against dust and moisture, IK10 resistance against mechanical impact, and TVS 4000 V lightning protection. The operating temperature range is –40 °C to +60 °C.

Parameters:

Detection of faces, people, vehicles; line crossing; zone entry/exit; loitering; people counting
Combined IR and LED illumination with strobe function; range: 30 m
WDR 120 dB – reduces distortion from high-contrast lighting
3D DNR – spatial noise reduction
24/7 color video recording
Corridor mode – vertically oriented video stream
Video compression formats: H.265+, H.265, H.264, MJPEG
Built-in microphone
Local storage – SD card slot (up to 256 GB)
