TR-D2B5 v3 2.8

Technical specifications

WDR:

RWDR 105 dB

IR range:

Up to 30

Resolution:

2MP

Form factor:

Bullet

Wi-Fi:

-

Maximum video output resolution:

1920x1080

Image sensor:

1/2.9" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

2.8

Net Weight (kg):

0.39 / 0.49

Sensitivity(Lux):

0.005Lux (F1.8)

Ingress protection:

IP67

Dimensions (mm):

152.1 x 68.3 x 62.9

Power consumption, Watt:

DC: 3.5W PoE: 4.5W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR

Video compression:

H.264/H.264+/H.265/H.265+
Overview

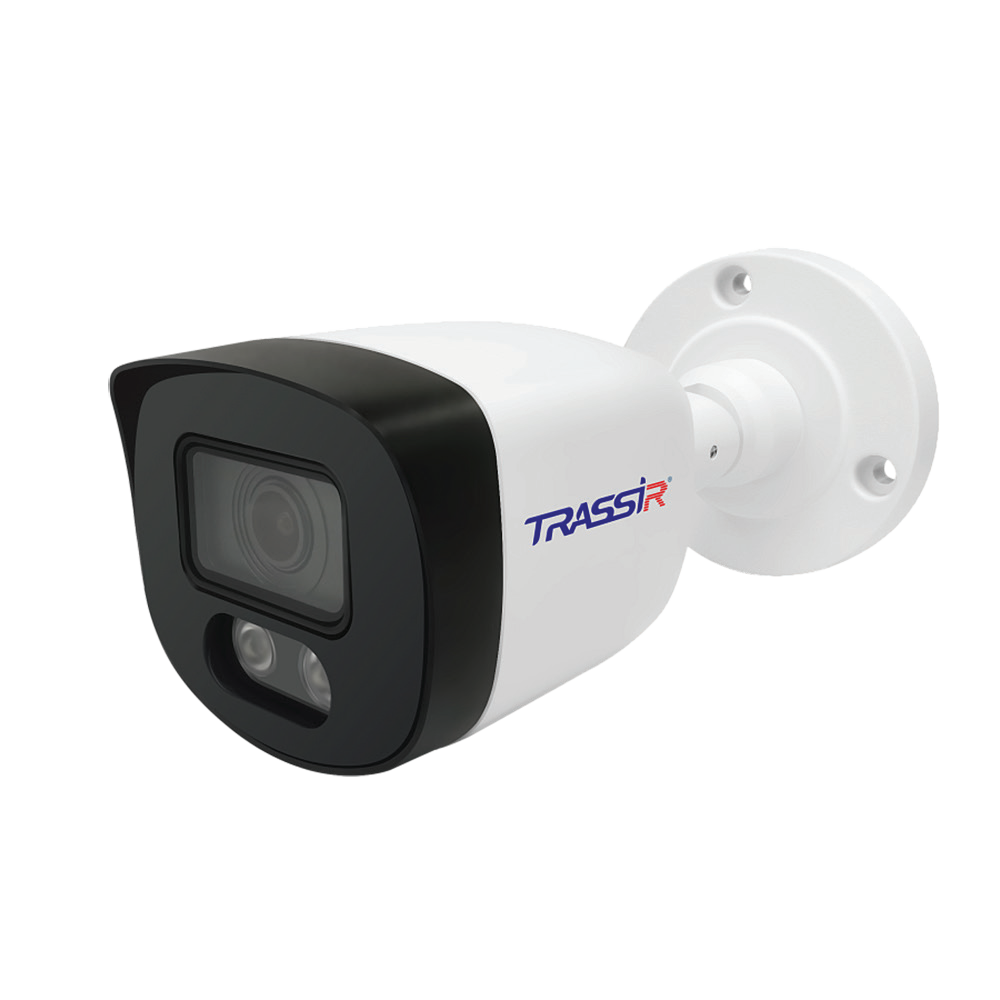

2 MP (1920×1080) IP Camera TRASSIR TR-D2B5 v3 2.8 is housed in a casing protected against moisture and dust to the IP67 standard. This, combined with an operating temperature range of –40 °C to +60 °C and TVS 4000 V lightning protection, ensures reliable outdoor performance throughout the year. The camera supports H.265+, H.265, and H.264 codecs for compression and features IR illumination with a range of 30 meters for night surveillance.


Functionality:

· Detection: motion detection, people detection, line crossing detection, and area entry/exit detection.

· DWDR: digital wide dynamic range for image processing in poor lighting conditions.

· BLC: backlight compensation.

· ROI: region of interest.

· Day/Night Mode: with a mechanical IR filter that shifts to infrared sensitivity in low light conditions.

· Sensor: 1/2.9-inch CMOS sensor with a sensitivity of 0.005 lux.

· Lens: Fixed focal length of 2.8 mm, horizontal viewing angle of 98°, vertical viewing angle of 53°, aperture of F/1.8.

· Ports: Equipped with an RJ-45 network port and a power connector.

· Power Supply: DC 12 V, PoE.

· Power Consumption: Maximum 3.4 W.

· Dimensions: 152.59×67.55×62.93 mm.

· Weight: 390 g.


The TR-D2B5 v3 2.8 camera is designed to deliver high-quality performance and durability in various environmental conditions, making it suitable for comprehensive outdoor surveillance needs.
