TR-D3151IR3 v7 3.6
Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/50,000 sIR range:
up to 35 mDigital noise Reduction:
3D DNRCorridor mode:
YesResolution:
5MPForm factor:
DomeMaximum video output resolution:
2560x1920Image sensor:
1/2.8" CMOSBitrate (Mb/sec):
up to 8MbpsPower supply:
PoE (802.3af) / 12V DCLens (mm):
3.6Net Weight (kg):
0.45 / 0.58Sensitivity(Lux):
0.003Lux (F1.6)Local storage:
MicroSD up to 256GBIngress protection:
IP66, IK10IR:
YesCase material:
MetalVideo input:
NoLightning protection:
TVS 4000VPower PoE:
6.8WDimensions (mm):
Ø116.10 x 96.51Power consumption, Watt:
DC: 4.1W PoE: 6.8WWorking temperature, C°:
-40°C … +60°CDay/Night Mode:
Mechanical ICRNetwork interfaces:
RJ-45Field of view:
H84°, V60°Video compression:
Н.265+ / Н.265 / H.264

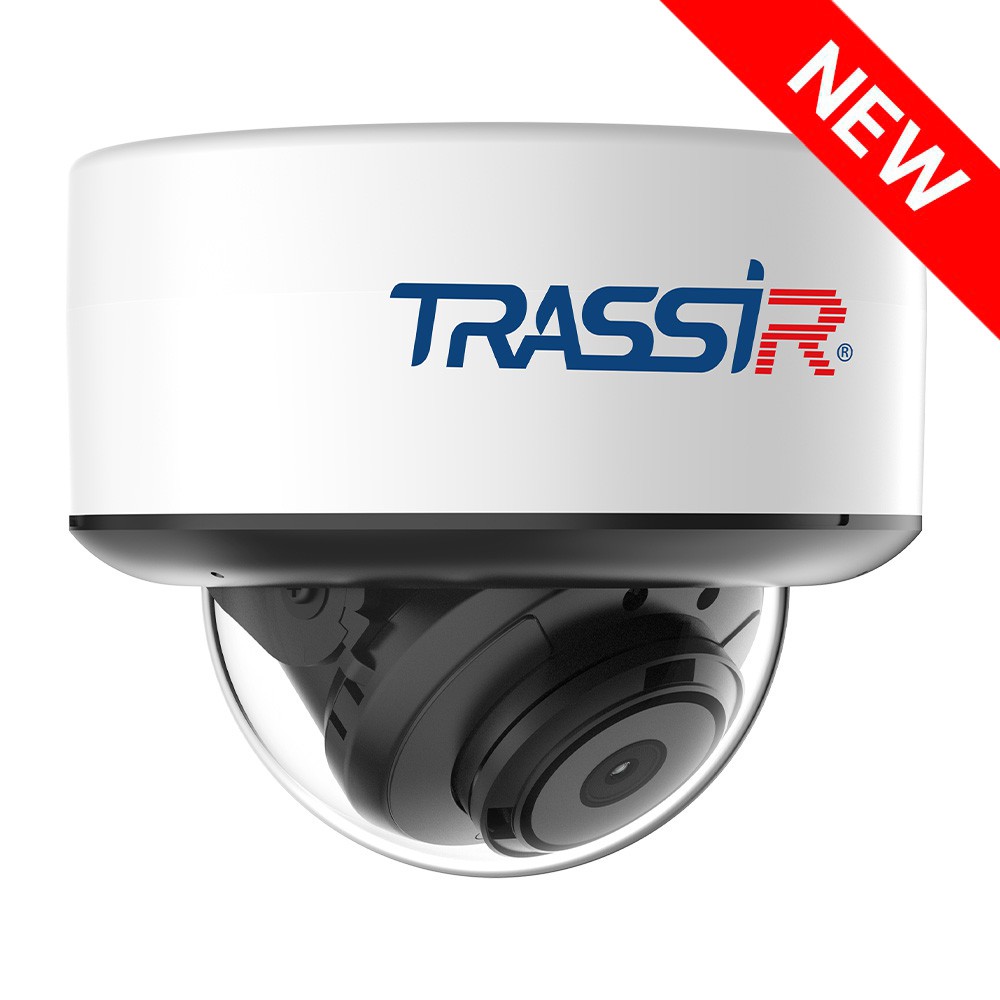

The TRASSIR TR-D3151IR3 v7 3.6 is a 5 MP (2560×1920) IP camera designed for outdoor use in locations with direct public access. It operates reliably year-round and around the clock, housed in a metal casing that is IK10-rated for protection against mechanical impacts and IP66-rated for resistance to dust and moisture. It supports operating temperatures from –40 °C to +60 °C, features 4000 V TVS lightning protection, and includes integrated IR illumination with a range of up to 35 meters.
Parameters:
- Blackface IR illumination technology
- Detection of people, vehicles, line crossing, area entry, and exit
- WDR 120 dB for enhanced image clarity in high-contrast lighting conditions
- 3D DNR for spatial noise reduction
- Corridor mode for vertically oriented image capture
- 1/2.8" CMOS sensor with 0.003 lx sensitivity
- Fixed 3.6 mm lens with an 84° horizontal and 60° vertical viewing angle, F/1.6 aperture
- Mechanical IR-cut filter to block infrared light in sufficient ambient lighting
- Video compression formats: H.265+, H.265, H.264
- Built-in microphone
- Local storage via SD card slot supporting up to 256 GB (hot-swappable)
- Interfaces: network port, audio input, audio output, reset button
- Power supply: DC 12 V or PoE
- Maximum power consumption: 6.8 W
- Dimensions: Ø116.10 × 96.51 mm
- Weight: 450 g
TR-D3151IR3 v7 3.6.pdf
