TR-D3123ZIR3 v7 2.7–13.5
Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/50,000 sIR range:
up to 30 mDigital noise Reduction:
3D DNRCorridor mode:
YesResolution:
2MPForm factor:
DomeMaximum video output resolution:
1920x1080Image sensor:
1/2.8" CMOSBitrate (Mb/sec):
up to 8MbpsPower supply:
PoE (802.3af) / 12V DCLens (mm):
2.7 - 13.5 (motorzoom)Net Weight (kg):
0.46 / 0.59Sensitivity(Lux):
0.005Lux (F1.6)Local storage:
MicroSD up to 256GBIngress protection:
IP66, IK10IR:
YesCase material:
MetalVideo input:
NoLightning protection:
TVS 4000VPower PoE:
7.6WDimensions (mm):
Ø116.10 x 96.51Power consumption, Watt:
DC: 6.5W PoE: 7.6WWorking temperature, C°:
-40°C … +60°CDay/Night Mode:
Mechanical ICRNetwork interfaces:
RJ-45Field of view:
H102°- 34°±5°, V54°- 20°±5°Video compression:
Н.265+ / Н.265 / H.264

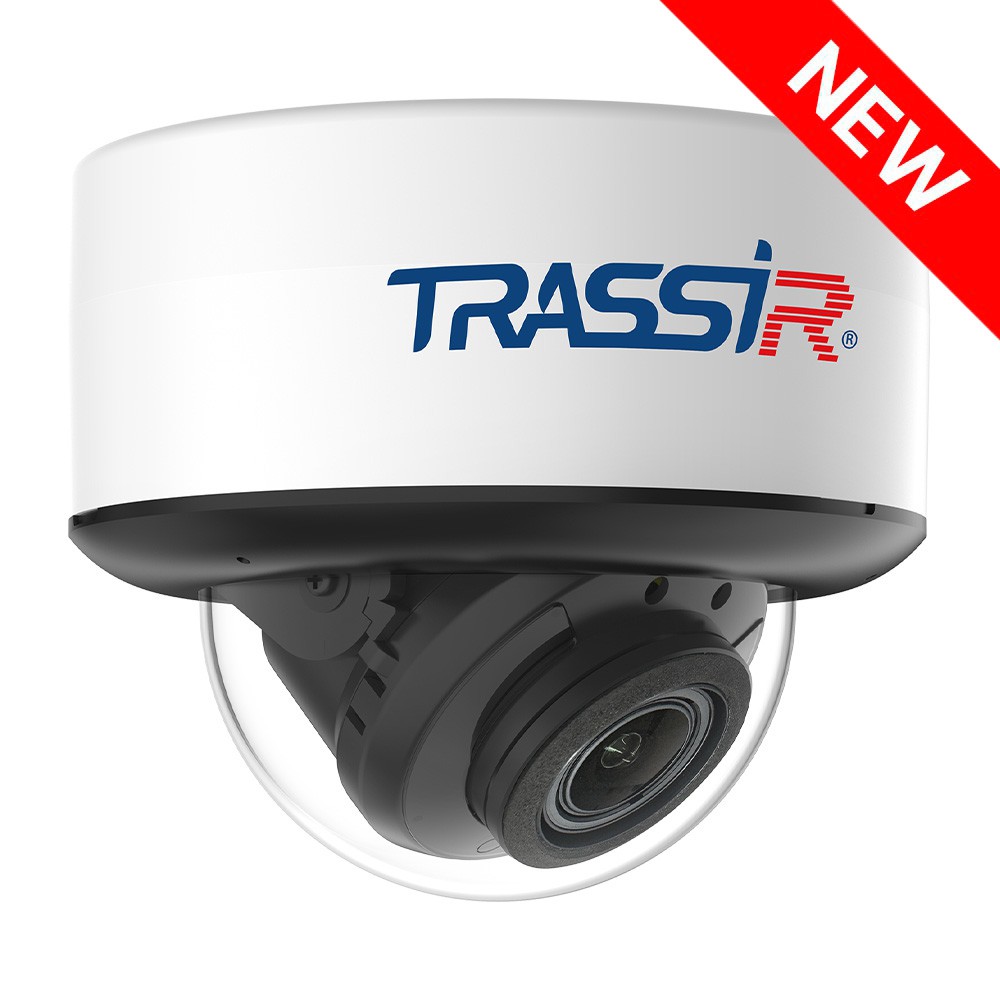

The TRASSIR TR-D3123ZIR3 v7 2.7–13.5 is a 2 MP (1920×1080) IP camera designed for outdoor use in areas with direct public access, providing dependable operation in all weather conditions, day or night. The metal housing is rated IP66 for protection against dust and moisture, and IK10 for resistance to mechanical impact. The camera operates in a wide temperature range from –40 °C to +60 °C, features TVS 4000 V lightning protection, and includes integrated IR illumination with a range of up to 60 meters.
Parameters:
- Detection capabilities: people, vehicles, line crossing, area entry and exit
- Real WDR 120 dB – enhances image quality in high-contrast lighting conditions
- 3D DNR – spatial noise reduction for clearer images in low light
- Corridor mode – optimized for vertically oriented scenes
- 1/2.8" CMOS sensor with 0.005 lx minimum illumination
- Vari-focal lens (2.7–13.5 mm) with horizontal viewing angles of 102° to 34°, vertical angles of 54° to 20°, and F/1.6 aperture
- Mechanical IR cut filter – blocks infrared light when sufficient ambient lighting is available
- Video compression: H.265+, H.265, H.264
- Built-in microphone
- SD card slot supporting up to 256 GB (hot-swappable)
- Interfaces: network port, audio input, audio output, reset button
- Power supply: DC 12 V or PoE
- Maximum power consumption: 6.5 W
- Dimensions: Ø116.10 × 96.51 mm
- Weight: 460 g
TR-D3123ZIR3 v7 2.7–13.5.pdf
