TR-D4S5 v3 3.6

Technical specifications

WDR:

RWDR 105 dB

IR range:

Up to 25

Resolution:

4MP

Form factor:

Sphere

Wi-Fi:

-

Maximum video output resolution:

2560x1440

Image sensor:

1/3" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

3.6

Net Weight (kg):

0.335 / 0.43

Sensitivity(Lux):

0.005Lux (F1.8)

Ingress protection:

IP66

Dimensions (mm):

106 x 96.9 x 73.5

Power consumption, Watt:

DC: 3.6W PoE: 4.0W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR

Video compression:

Н.265+ / Н.265 / H.264
Overview

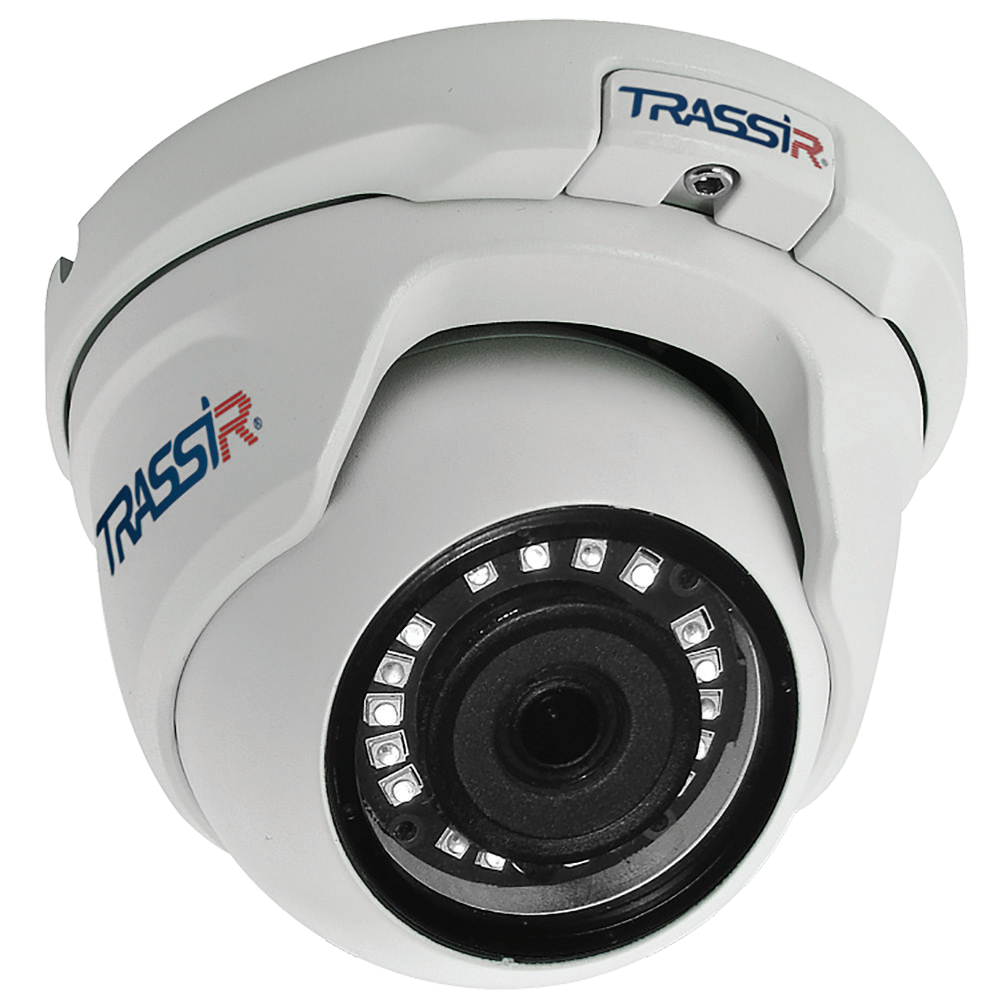

The 4 MP (2560×1440) IP camera TRASSIR TR-D4S5 v3 3.6 is supplied in a metal housing, protected from dust and moisture according to IP66 standards, which, combined with a working temperature range of -40°C to +60°C and TVS 4000 V surge protection, ensures stable operation outdoors throughout the year.


Functionality:

· Detection: People, motion, crossing of virtual lines, intrusion into zones.

· IR illumination with a range of 25 meters.

· WDR 105 dB: Minimization of the influence of changes in illumination level on image quality.

· 3D DNR: Noise reduction.

· Defog: Contrast enhancement to neutralize blurring caused by fog.

· BLC: Backlight compensation.

· Day/Night mode with ICR: In sufficient light, the filter refracts IR rays to optimize color reproduction, while in darkness, it mechanically shifts to increase sensitivity.

· Compression: H.265+, H.265, and H.264.

· Transmission speed: 25 fps. Bitrate: 8 Mbps.

· Protocols: TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, UpnP, SMTP, ONVIF.


Basics:

The TR-D4S5 v3 3.6 is built on a 1/3" CMOS sensor with a sensitivity of 0.005 lux. It is equipped with a fixed-focus lens with a focal length of 3.6 mm, providing horizontal and vertical viewing angles of 77° and 42°, respectively. Power can be supplied from a DC 12 V source or via PoE. Maximum power consumption is 4 W. The camera dimensions are 106.00×96.87×73.50 mm, and it weighs 335 g.
