TR-D3221WDIR3 v2 2.8

Technical specifications

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

RWDR 120 dB

Frame rate:

30

Electronic shutter speed:

1/2 ~ 1/1 000 s

IR range:

30m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

2MP

Form factor:

Dome

Wi-Fi:

-

Maximum video output resolution:

1920x1080

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

8

Power supply:

12V DC

Lens (mm):

2.8

Net Weight (kg):

0.450

Sensitivity(Lux):

0,005

Local storage:

microSD up to 128 GB

Ingress protection:

IP66

Case material:

Metal

Lightning protection:

TVS 4000V

Dimensions (mm):

Ø116.10 x 96.51

Power consumption, Watt:

4.6

Working temperature, C°:

-40°C ... +60°C

Day/Night Mode:

Mechanic IR-filter

Video compression:

Н.265+ / Н.265 / H.264
Overview

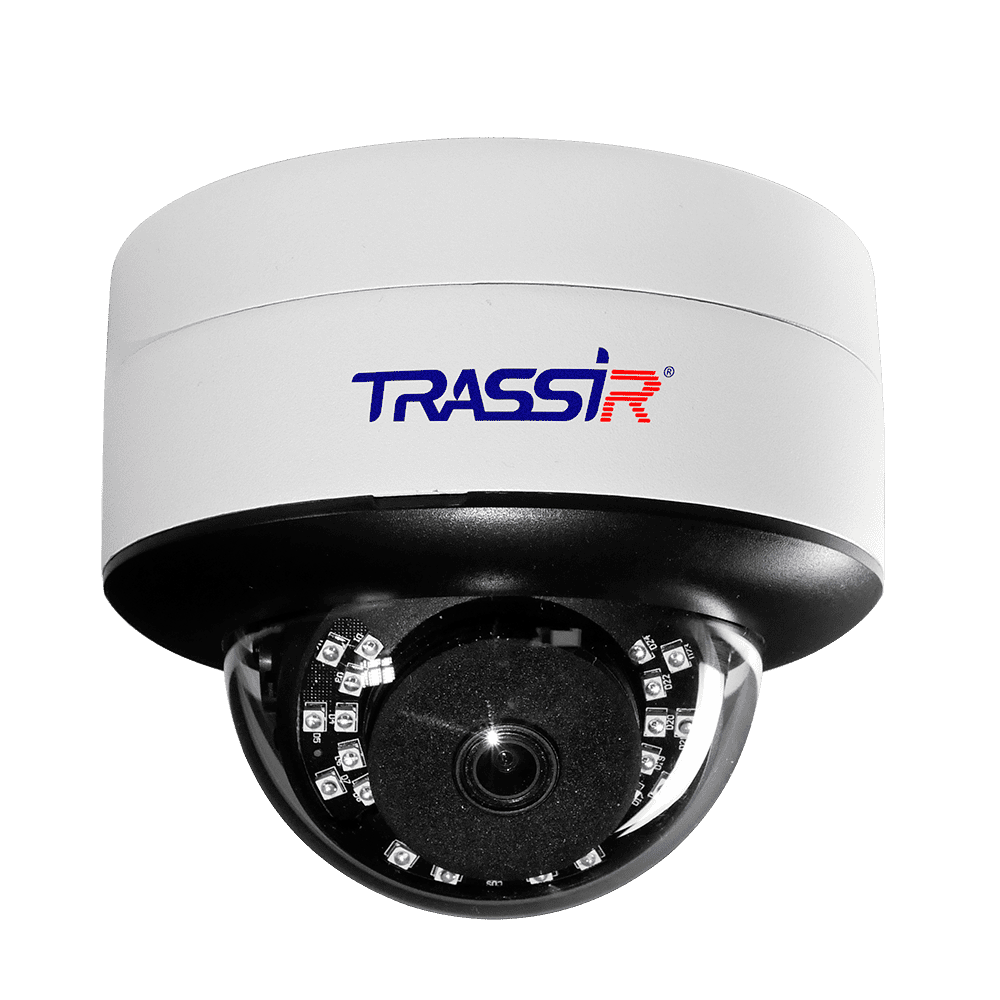

2 MP (1920×1080) IP-camera TRASSIR TR-D3221WDIR3 v2 2.8 is adapted for outdoor use regardless of the season and location: protection against moisture and dust - IP66, against mechanical stress - IK10, operating temperatures from -40 ° C… +60 °C, lightning protection — TVS 4000 V.


Functionality

  • Detect motion, people, line crossing, zone intrusion, loitering, traffic, people counting.
  • WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
  • 3D DNR - spatial noise reduction.
  • Corridor mode - shooting in vertically oriented resolution.
  • Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
  • BLC - backlight compensation.
  • Day/Night mode with ICR: When there is sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark, mechanically shifts away from the sensor to increase its sensitivity.
  • Lens with a fixed focal length of 2.8 mm, a horizontal angle of view of 101°, a vertical angle of 55°, aperture of F/1.8.
  • 1/2.8 inch CMOS sensor, 0.005 lux sensitivity.
  • The broadcast speed and resolution of the main stream is 25 fps 1920×1080, 1280×960, 1280×720, the secondary stream is 25 fps 704×576, 640×480, 640×360, 352×288.

Basics

H.265+, H.265, H.264 codecs are provided for compression, traffic optimization - two-stream broadcasting, audio control - integrated microphone, night video surveillance - IR illumination with a range of 30 m. Bit rate - 8 Mbps. Interfaces: RJ-45 network port, microSD slot up to 128 GB, audio in, audio out, alarm in, alarm out. Power supply - DC 12 V, PoE. The maximum power consumption is 5.5 W. Size - Ø116.10×96.51 mm. Weight - 450 g.
