TR-D2254WDZIR7 v3 5-50
Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/12,500 sIR range:
up to 70 mDigital noise Reduction:
3D DNRCorridor mode:
YesResolution:
5MPForm factor:
BulletMaximum video output resolution:
2592x1920Image sensor:
1/2.8" CMOSBitrate (Mb/sec):
up to 8MbpsPower supply:
PoE (802.3af) / 12V DCLens (mm):
5 - 50 (motorzoom)Net Weight (kg):
0.635 / 0.830Sensitivity(Lux):
0.002Lux (F1.6)Local storage:
MicroSD up to 512GBIngress protection:
IP67, IK08IR:
YesCase material:
MetalVideo input:
NoLightning protection:
TVS 4000VPower PoE:
13.6WDimensions (mm):
234.33 x 77.5 x 73.4Power consumption, Watt:
DC: 9.3W PoE: 13.6WWorking temperature, C°:
-40°C … +60°CDay/Night Mode:
Mechanical ICRNetwork interfaces:
RJ-45Field of view:
H44°-8°±5°, V32°-6°±5°Class PoE :
802.3af/atVideo compression:
Н.265+ / Н.265 / H.264

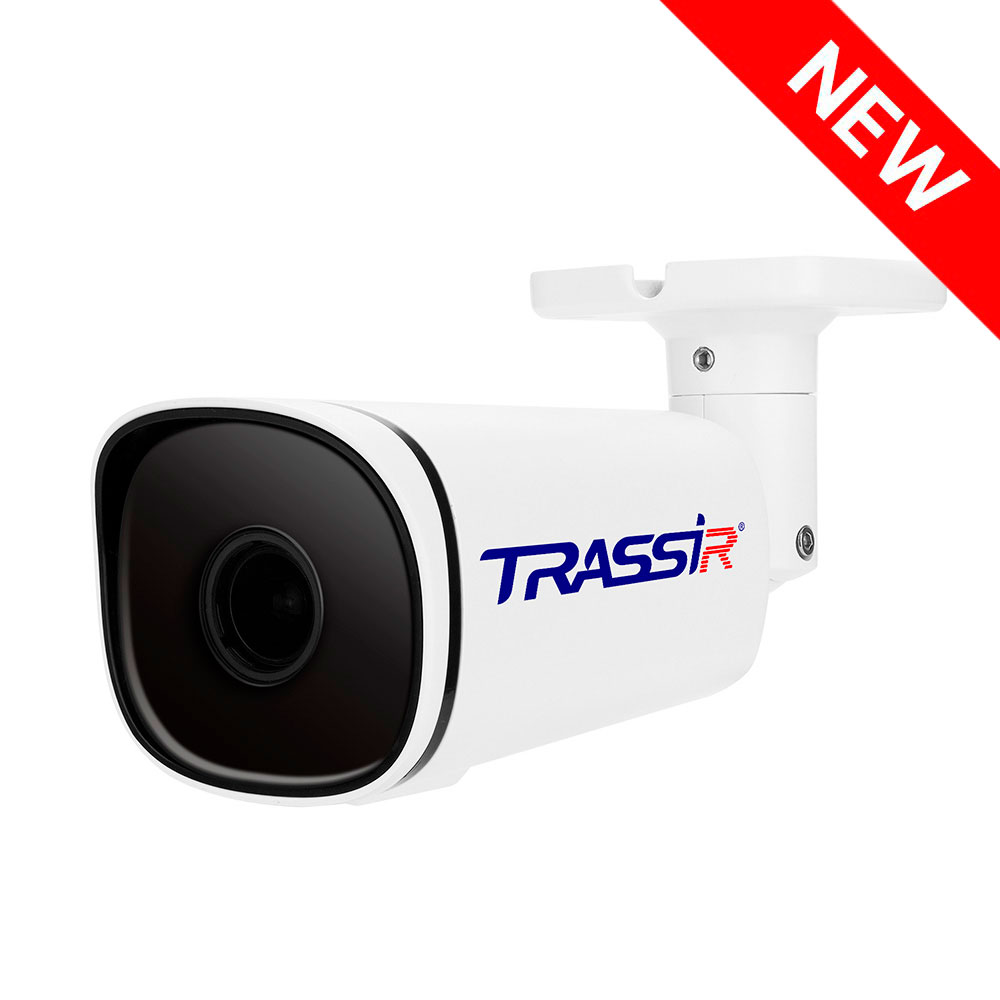

TRASSIR TR-D2254WDZIR7 v3 5–50 is an outdoor bullet IP camera from the PRO series, featuring a 1/2.8" CMOS 5 MP sensor with a resolution of 2592 × 1920. A motorized 5–50 mm varifocal lens enables precise scene adjustment, while IR illumination with a range of up to 70 meters ensures effective monitoring in low-light and nighttime conditions.
The camera supports Day/Night mode with a mechanical IR cut filter and offers a sensitivity of 0.002 lux (F1.6). Real WDR with a dynamic range of 120 dB and 3D DNR noise reduction are provided for scenes with high contrast and low illumination.
It supports H.265+ / H.265 / H.264 video compression and includes built-in video analytics such as people detection, line crossing, area intrusion detection, visitor counting, and vehicle and face detection.
Network connection is via an RJ45 interface, and power can be supplied via PoE (802.3af) or 12 V DC. The camera features 1/1 alarm inputs/outputs and a microSD card slot supporting cards of up to 512 GB for local recording.
The metal housing is rated IP67 for dust and water protection and IK08 for impact resistance. An operating temperature range of −40 °C to +60 °C and a built-in 4000 V TVS surge suppressor ensure reliable outdoor operation. The product is covered by a 5-year warranty.
TR-D2254WDZIR7 v3 5-50.pdf
