TR-D3251WDIR3 v2 2.8

Technical specifications

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

RWDR 120 dB

Resolution:

5MP

Form factor:

Dome

Wi-Fi:

-

Maximum video output resolution:

2592x1920

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

8

Power supply:

12V DC

Lens (mm):

2.8

Net Weight (kg):

0.450

Sensitivity(Lux):

0,005

Local storage:

microSD up to 128 GB

Ingress protection:

IP66

IR:

Yes

Case material:

Metal

Lightning protection:

TVS 4000V

Dimensions (mm):

Ø116.10 x 96.51

Power consumption, Watt:

5.1

Working temperature, C°:

-40°C ... +60°C

Day/Night Mode:

Mechanic IR-filter

Video compression:

Н.265+ / Н.265 / H.264+ / H.264
Overview

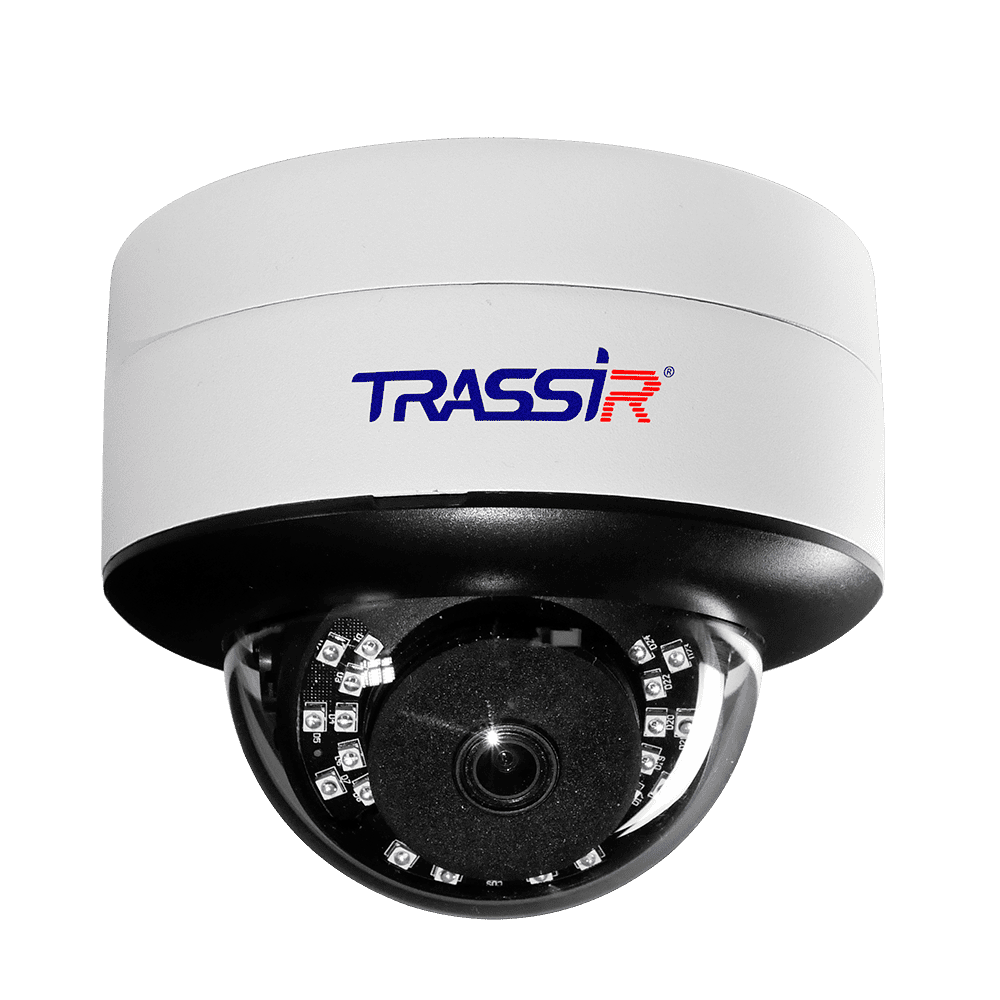

5 MP (2592×1920) IP-camera TRASSIR TR-D3251WDIR3 v2 2.8 is adapted for year-round outdoor use in places of direct access: the case meets the standard of protection against moisture and dust IP66, against mechanical influences - IK10, operating temperatures from -40 °C... +60 °C, lightning protection - TVS 4000 V.

Functionality

Motion detection, faces (optional), cars, people counting.
Detection of virtual line crossing, area intrusion, area exit, loitering.
WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
3D DNR - spatial noise reduction.
Corridor mode - hardware support for vertical resolution.
Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
BLC - backlight compensation.
IR illumination with a range of 30 m.
Compression H.265+, H.265, H.264+, H.264.

Basics

TR-D3251WDIR3 v2 2.8 is equipped with a lens with a fixed focal length of 2.8 mm, a horizontal angle of view of 91°, a vertical angle of 66°, aperture of F/1.8. Equipped with RJ-45 network port, audio input, audio output and integrated microphone, alarm input and alarm output, microSD slot up to 128 MB. Power Supply – 12V DC or PoE. The maximum power consumption is 5.8 W. Size - Ø116.10×96.51 mm. Weight - 450 g.
