TR-D8221WDIR3 v2 1.9

Technical specifications


audio in/out 1/1


real WDR (120 dB)



Form factor:




Maximum video output resolution:


Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):


Power supply:

DC 12 V

Lens (mm):


Net Weight (kg):




Local storage:

microSD up to 128 GB

Ingress protection:


Case material:


Lightning protection:

TVS 4000V

Power supply, V:

DC 12

Dimensions (mm):

Ø93 x 92.2

Power consumption, Watt:


Working temperature, C°:

-40°C ... +60°C

Day/Night Mode:

Mechanic IR-filter

Video compression:

Н.265+ / Н.265 / H.264

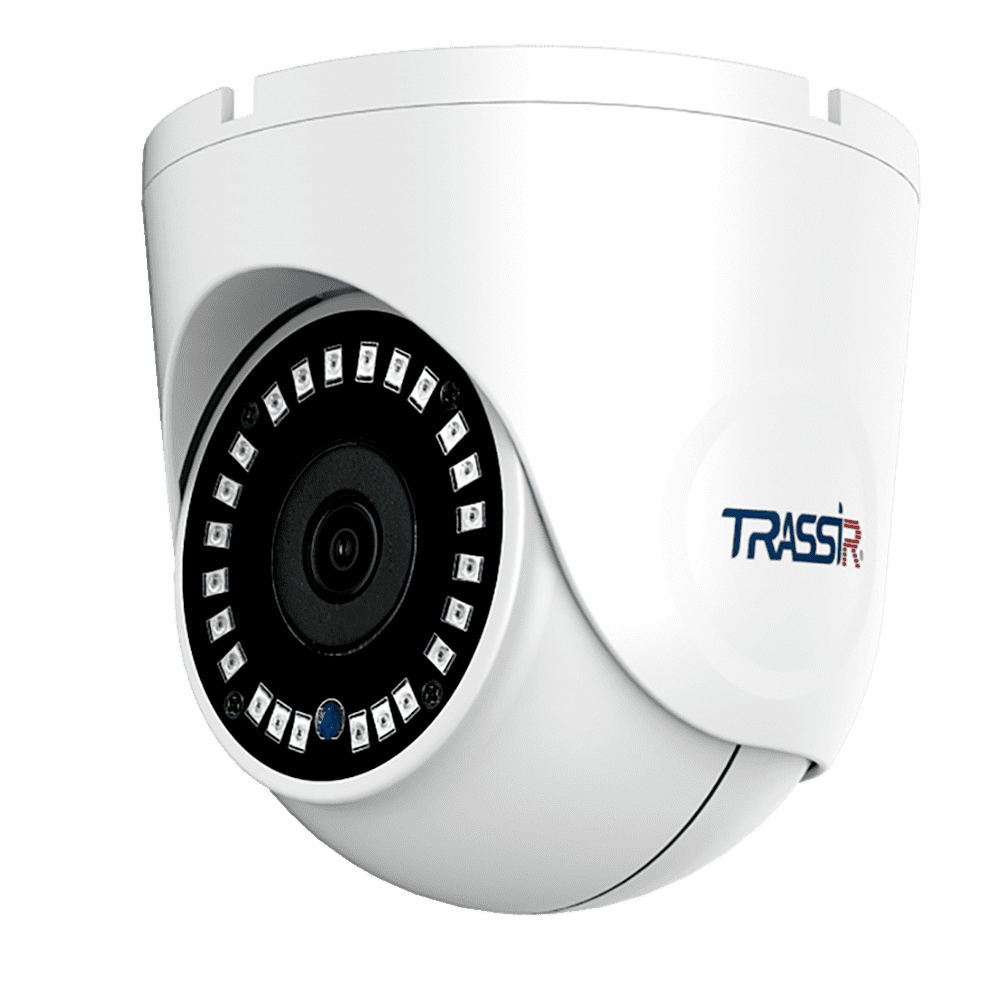

2 MP (1920×1080) TRASSIR TR-D8221WDIR3 v2 1.9 IP camera is adapted for outdoor use regardless of the season: the metal case is protected from moisture and dust according to the IP66 standard, mechanical influences — IK10, operating temperatures from -40 °C… +60 °C, lightning protection - TVS 4000 V.


  • Detect motion, people, line crossing, zone intrusion, loitering, traffic, people counting.
  • WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
  • 3D DNR - spatial noise reduction.
  • Corridor mode - shooting in vertically oriented resolution.
  • Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
  • BLC - backlight compensation.
  • IR illumination with a range of 30 m.
  • Compression H.265+, H.265, H.264.
  • The broadcast speed and resolution of the main stream is 25 fps 1920×1080, 1280×960, 1280×720, the secondary stream is 25 fps 704×576, 640×480, 640×360, 352×288.


TR-D8221WDIR3 v2 1.9 is built on a 1/2.8-inch CMOS sensor with 0.005 lux sensitivity. Supports day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor to increase its sensitivity. Bitrate - 8 Mbps. Equipped with a fixed lens (focal length - 1.9 mm, horizontal viewing angle - 118°, vertical - 62°, aperture - F / 1.8), RJ-45 network port, integrated microphone, slot for microSD up to 128 GB. Power supply - DC 12 V, PoE. The maximum power consumption is 5.6 W. Size - Ø93.0×92.2 mm. Weight - 400 g.
