TR-D4D5 v3 2.8

Technical specifications

WDR:

RWDR 105 dB

IR range:

Up to 15

Resolution:

4MP

Form factor:

Dome

Wi-Fi:

-

Maximum video output resolution:

2560x1440

Image sensor:

1/3" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

2.8

Net Weight (kg):

0.295 / 0.385

Sensitivity(Lux):

0.005Lux (F1.8)

Ingress protection:

IP66

Dimensions (mm):

Ø95 x 63

Power consumption, Watt:

DC: 2.4W PoE: 3.2W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR

Video compression:

Н.265+ / Н.265 / H.264
Overview

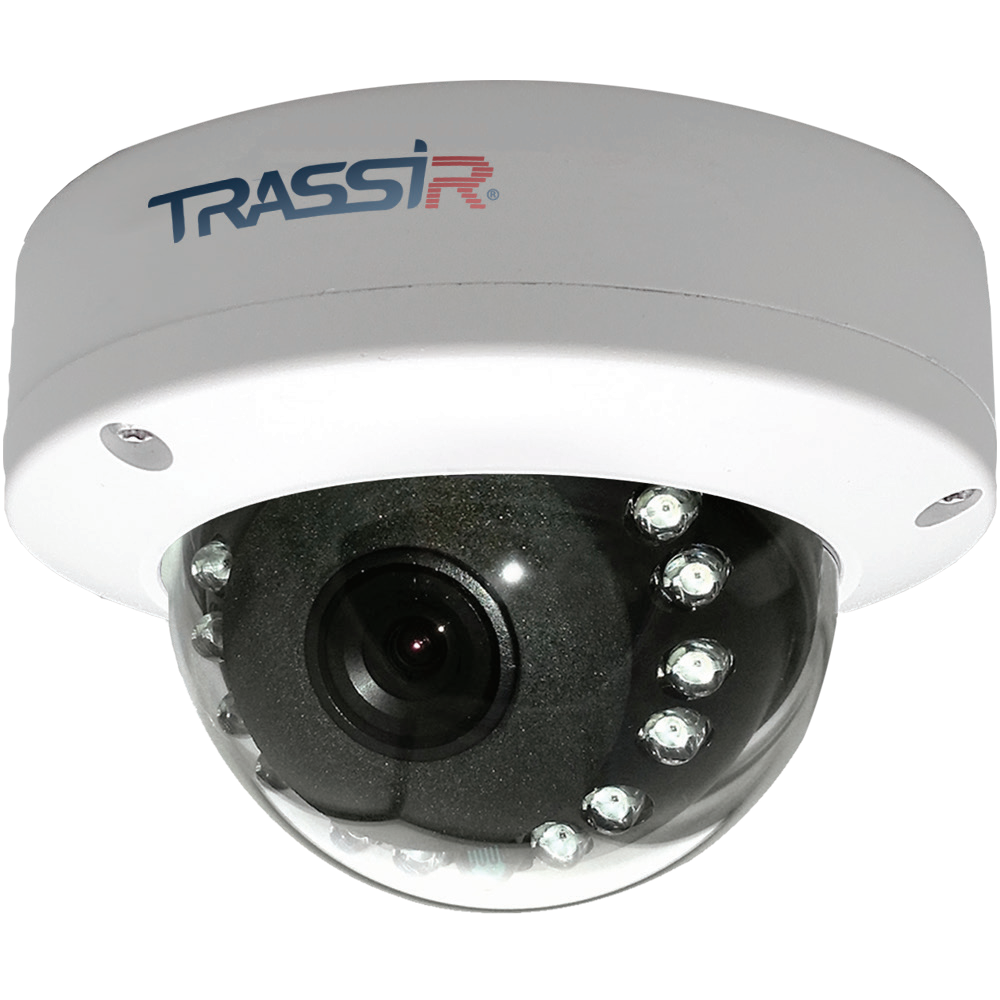

The 4 MP (2560×1440) IP Camera TRASSIR TR-D4D5 v3 2.8 is designed for outdoor use, including areas with direct access, throughout the year. It comes in a housing protected against dust and moisture according to the IP66 standard, resistant to mechanical impact up to IK10, with operational temperatures ranging from –40 °C to +60 °C, and surge protection up to 4000 V. It supports protocols such as TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, UpnP, SMTP, and ONVIF.


Functionality:

· Detection: of people, motion, virtual line crossing, intrusion into the zone, and exiting the zone.

· IR Illumination: with a range of 15 meters.

· WDR 105 dB: mitigates the impact of lighting variations on image quality.

· 3D DNR: noise reduction.

· Defog: enhances contrast to counteract the effects of fog or smoke.

· BLC: compensates for backlighting.

· Day/Night Mode with ICR: the filter blocks IR rays in sufficient light conditions for optimal color reproduction, and shifts away from the sensor in darkness to increase sensitivity.

· Compression: H.265+, H.265, and H.264.

· Transmission speed: 25 fps.

· Bitrate: 8 Mbps.


Basics:

The TR-D4D5 v3 2.8 is based on a 1/3" CMOS sensor with a sensitivity of 0.005 lux. It comes with a fixed focal length lens of 2.8 mm, providing a horizontal viewing angle of 94° and vertical viewing angle of 50°. Power options include DC 12 V or PoE, with a maximum power consumption of 3.2 W. Its dimensions are Ø95×63 mm, and it weighs 295 g. The housing is made of metal.
