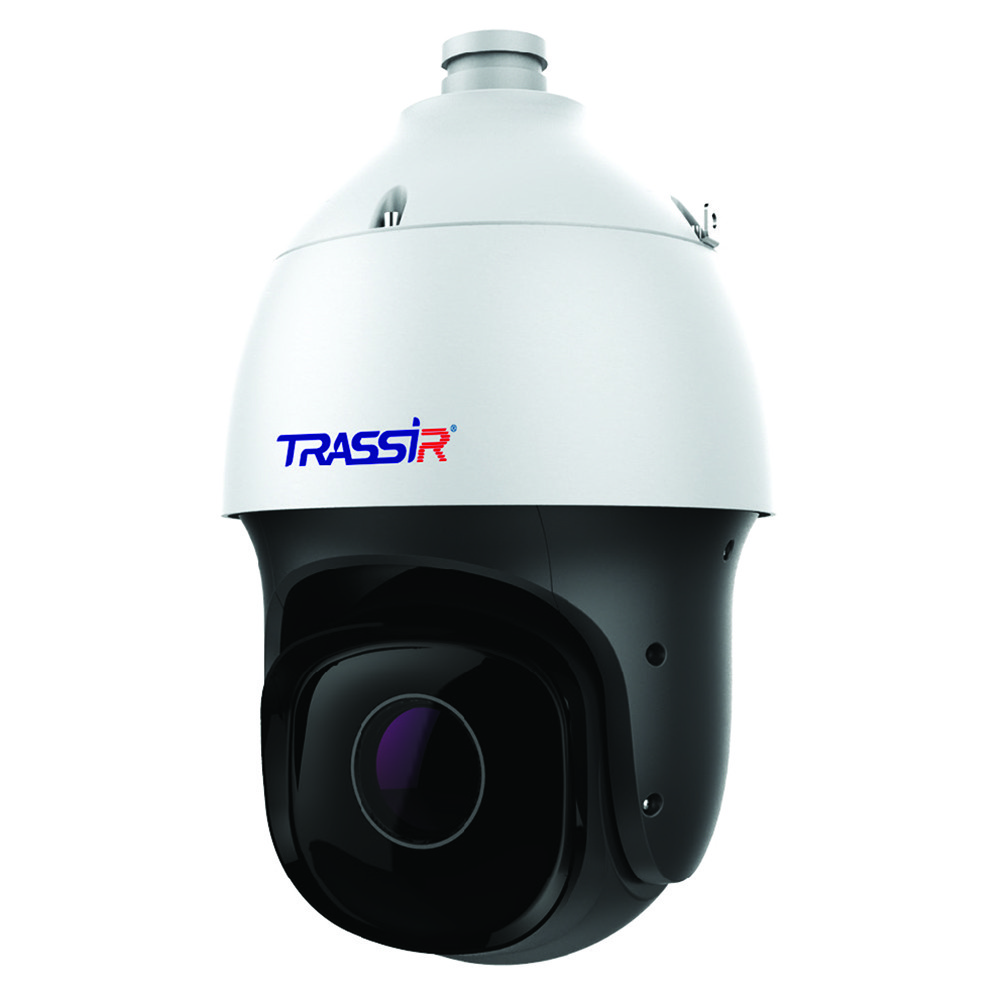

TR-D6225IR20 v3 4.6–152

Technical specifications

PoE:

4

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

WDR (140 dB)

Audio in/out:

1/1, RCA

Resolution:

2MP

Form factor:

PTZ speed dome

Maximum video output resolution:

1920x1080

Image sensor:

1/2.8" CMOS STARVIS 2MP

Bitrate (Mb/sec):

up to 16Mbps

Power supply:

PoE (802.3at) / 12V DC

Lens (mm):

4.6-152 mm, F1.6-F4.3

Net Weight (kg):

5300 / 7800

Sensitivity(Lux):

0.001Lux (F1.6)

Local storage:

MicroSD до 512Gb

Case material:

Aluminum

Dimensions (mm):

222 х 372

Power consumption, Watt:

PoE: 24W (IR on), DC: 24W (IR on)

Working temperature, C°:

-30°C ... +70°C (IR on)

Video compression:

Н.265 / H.264B / MJPEG
Overview

Key features

• Wide dynamic range (Real WDR 140dB)

• IR range up to 200 meters

• Built-in video archive (Edge Storage) – local recording on MicroSD card* up to 512GB*

• IVS: Human detection; Line crossing; Intrusion detection / Abandoned / Missing objects detection; Autotracking; Motor vehicle / Non-motor vehicle detection

• Two-way audio channel (1 in / 1 out)

• Alarm IN/OUT (1/1)

• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, PPPoE, NTP, UPnP, SMTP, QoS, IPV4, MULTICAST, RTMP, ONVIF protocols

• IP66 weather-tight case

• Power supply 12V DC or PoE

___________________________

* MicroSD card is not included into camera package
