TR-D4D5 v3 3.6

Technical specifications

WDR:

RWDR 105 dB

Resolution:

4MP

Form factor:

Dome

Wi-Fi:

-

Maximum video output resolution:

2560x1440

Image sensor:

1/3" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

3.6

Net Weight (kg):

0.295 / 0.385

Sensitivity(Lux):

0.005Lux (F1.8)

Ingress protection:

IP66

Dimensions (mm):

Ø95 x 63

Power consumption, Watt:

DC: 2.4W PoE: 3.2W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR

Video compression:

Н.265+ / Н.265 / H.264
Overview

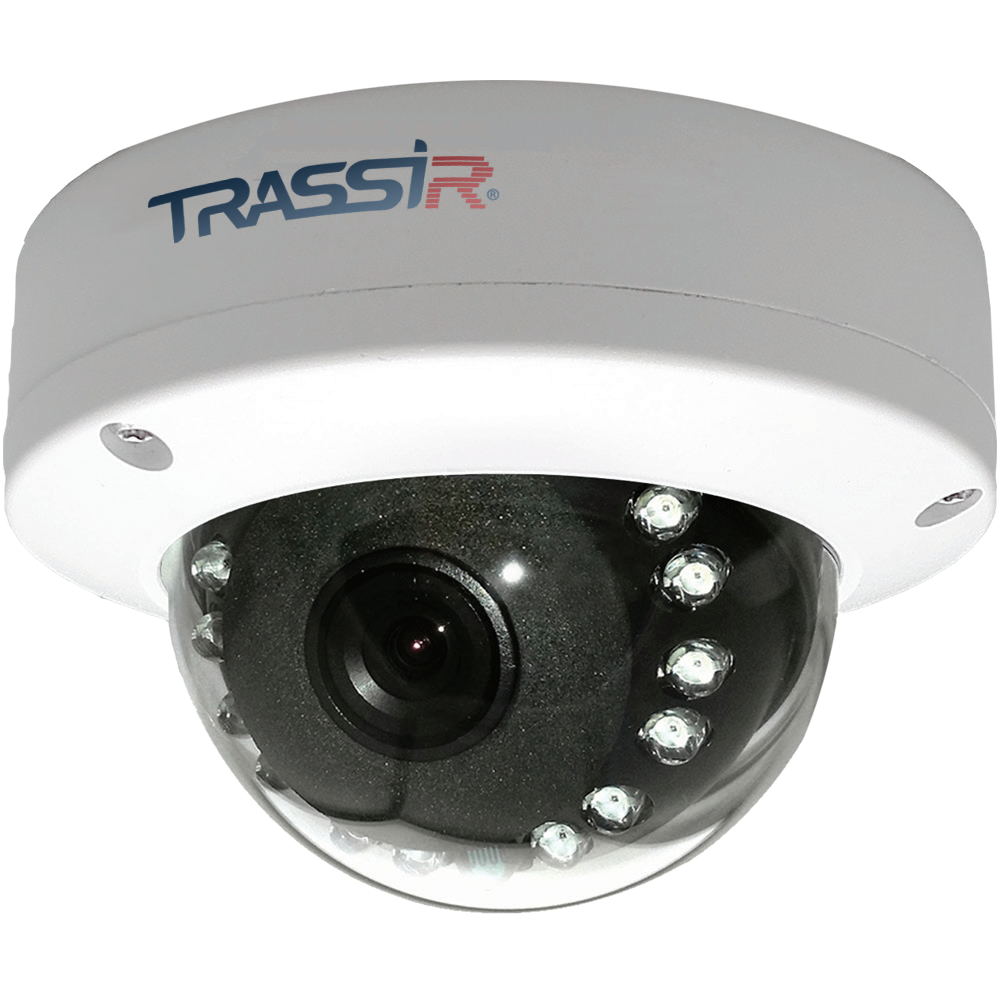

The 4 MP (2560×1440) IP Camera TRASSIR TR-D4D5 v3 3.6 is designed for outdoor use in areas with direct exposure to precipitation, suitable for all seasons and times of the day. Its metal housing is protected against mechanical impact with an IK10 rating, and against dust and moisture with an IP66 rating. It operates within a temperature range of –40 °C to +60 °C and features surge protection up to 4000 V. The built-in IR illumination has a range of 15 meters.


Functionality

· Detection: of people, motion, virtual line crossing, intrusion into the zone, and exiting the zone.

· WDR 105 dB: mitigates the impact of lighting variations on image quality.

· 3D DNR: noise reduction.

· Defog: enhances contrast to neutralize defects caused by fog or smoke.

· BLC: compensates for backlighting.

· Day/Night Mode with ICR: in sufficient light, the filter refracts IR rays to normalize color reproduction, while in darkness, it mechanically shifts away from the sensor to increase sensitivity.

· Compression: H.265+, H.265, and H.264.

· Transmission speed: 25 fps. Bitrate: 8 Mbps.

· Protocols: TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, UpnP, SMTP, ONVIF.


Basics:

The TR-D4D5 v3 3.6 is based on a 1/3" CMOS sensor with a sensitivity of 0.005 lux. It comes with a fixed focal length lens of 3.6 mm, providing a horizontal viewing angle of 77° and vertical viewing angle of 42°. Power options include DC 12 V or PoE, with a maximum power consumption of 3.2 W. Its dimensions are Ø95×63 mm, and it weighs 295 g. The housing is made of metal.
