TR-D7121IR1 v7 3.6
Audio:
Built-in microphoneBuilt-in speaker
WDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/50,000 sIR range:
up to 10 mDigital noise Reduction:
3D DNRCorridor mode:
YesResolution:
2MPForm factor:
CubeMaximum video output resolution:
1920x1080Image sensor:
1/2.8" CMOSBitrate (Mb/sec):
up to 8MbpsPower supply:
PoE (802.3af) / 12V DCLens (mm):
3.6Net Weight (kg):
0.095 / 0.220Sensitivity(Lux):
0.005Lux (F1.6)Local storage:
MicroSD up to 256GBIR:
YesCase material:
PlasticVideo input:
NoLightning protection:
NoPower PoE:
2.9WDimensions (mm):
129 x 99 x 60Power consumption, Watt:
DC: 2.0W PoE: 2.9WWorking temperature, C°:
-10°C … +50°CDay/Night Mode:
Mechanical ICRNetwork interfaces:
RJ-45Field of view:
H88°±5°, V48°±5°Video compression:
Н.265+ / Н.265 / H.264

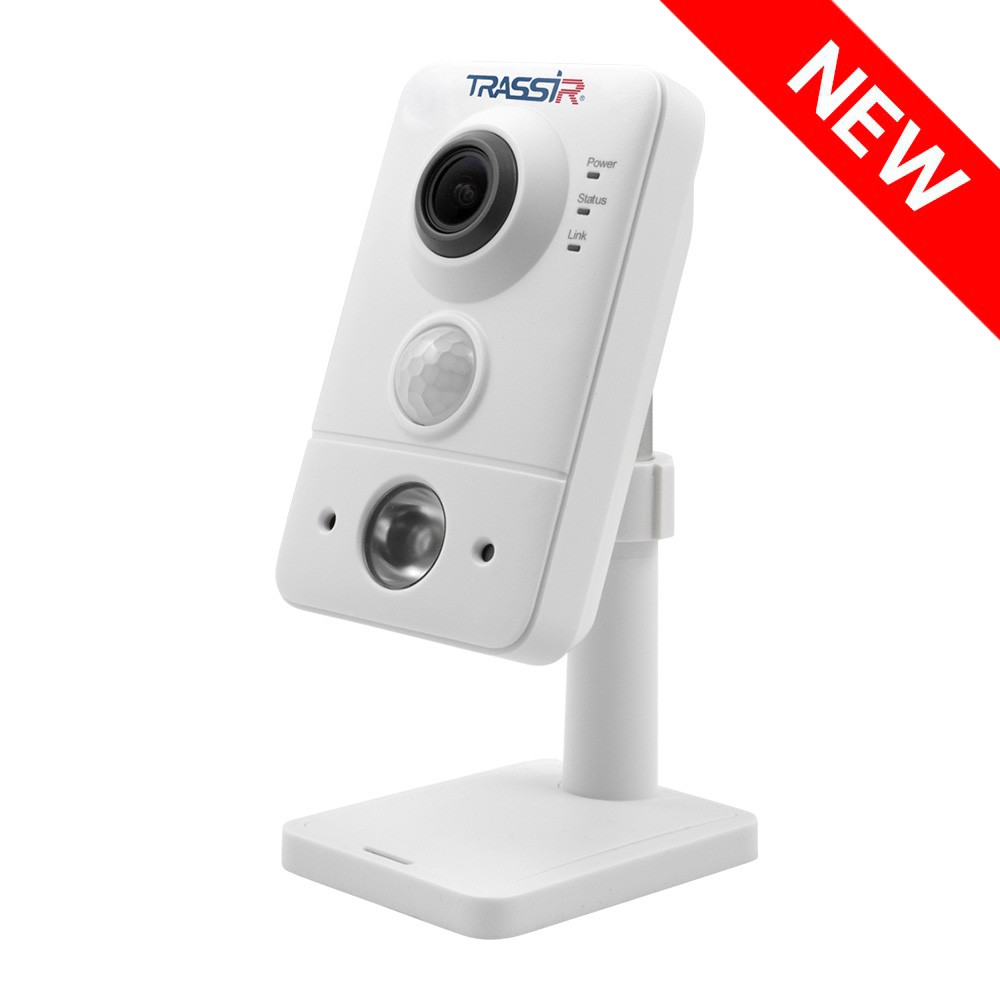

The indoor 2 MP (1920×1080) IP camera TRASSIR TR-D7121IR1 v7 3.6 features IR illumination with a 10 m range for night video surveillance, a built-in microphone and speaker for two-way audio communication, and a PIR sensor for motion detection based on thermal changes. The camera supports advanced analytics including human motion detection, virtual line crossing detection, and intrusion detection.
Parameters:
- Detection of people, vehicles, line crossing, area entry and exit
- Real WDR 120 dB — reduces the impact of multi-contrast lighting on image quality
- 3D DNR — spatial noise reduction for clearer images in low light
- Corridor mode — optimized for vertically oriented video
- 1/2.8" CMOS sensor with 0.005 lx sensitivity
- Mechanical IR filter — blocks infrared rays when there is sufficient light
- Video compression: H.265+, H.265, H.264
- Built-in microphone
- SD card slot supporting up to 256 GB
- Fixed 3.6 mm lens with a 88° horizontal and 48° vertical viewing angle, aperture F/1.6
- RJ-45 network port
- microSD slot supporting up to 256 GB
- Power connector
- Power supply: 12 V DC or PoE
- Maximum power consumption: 2 W
- Dimensions: 129 × 99 × 60 mm
- Weight: 95 g
- Operating temperature range: –10 °C to +50 °C
TR-D7121IR1 v7 3.6.pdf
