TR-D2363WDZDL6 2.7-13.5
Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
WDR (130 dB)Frame rate:
25Electronic shutter speed:
1 ~ 1/100,000 sIR range:
up to 60 mDigital noise Reduction:
3D DNRCorridor mode:
NoResolution:
6MPForm factor:
BulletMaximum video output resolution:
3200x1800Image sensor:
1/1.8" CMOSBitrate (Mb/sec):
up to 16MbpsPower supply:
PoE (802.3af) / 12V DCLens (mm):
2.7 - 13.5 (motorzoom)Net Weight (kg):
1.520 / 2.326Sensitivity(Lux):
0.001Lux (F1.2)Local storage:
MicroSD up to 512GBIngress protection:
IP67, IK10IR:
YesCase material:
MetalVideo input:
NoLightning protection:
TVS 4000VPower PoE:
15WDimensions (mm):
334x112x112Power consumption, Watt:
DC: 13W PoE: 15WWorking temperature, C°:
-40°C … +60°CDay/Night Mode:
Mechanical ICRNetwork interfaces:
RJ-45Field of view:
H112.3˚- 41.2˚±5˚, V58.1˚- 23.1˚±5˚Class PoE :
802.3af/atVideo compression:
Н.265+ / Н.265 / H.264+ / H.264 / MJPEG

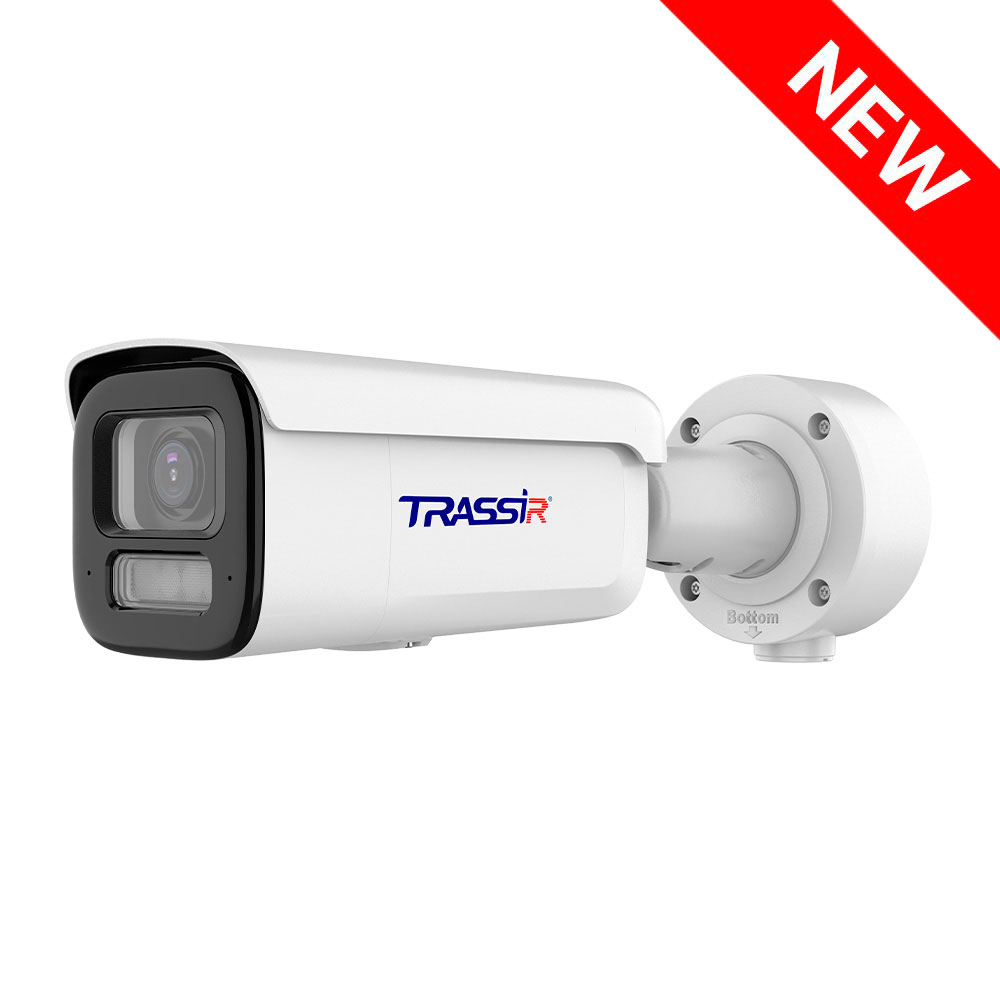

TRASSIR TR-D2363WDZDL6 2.7–13.5 is a bullet-style outdoor IP camera with dual intelligent illumination for 24/7 video surveillance. It features a 1/1.8" CMOS sensor and delivers images at a maximum resolution of 6 MP (3200 × 1800). A motorized 2.7–13.5 mm zoom lens allows precise scene adjustment.
For poor lighting conditions, it provides Real WDR with a 130 dB dynamic range and 3D DNR noise reduction. IR illumination with a range of up to 60 meters and warm-white LED illumination with a range of up to 60 meters ensure reliable nighttime surveillance.
The camera supports H.265+ / H.265 / H.264+ / H.264 / MJPEG compression with bitrates of up to 16 Mbps, simplifying video storage and transmission. It supports Edge Storage for local recording to a microSD card with a capacity of up to 512 GB.
The camera supports two-way audio (built-in microphone, audio input, and audio output), 2/2 alarm inputs/outputs, and built-in hardware analytics including people detection, line crossing detection, area intrusion monitoring, people counting, vehicle detection, and face detection.
Power can be supplied via PoE (802.3af) or 12 V DC. Maximum power consumption is 13 W via DC and 15 W via PoE. The metal housing is rated IP67 for dust and water protection and IK10 for impact resistance and includes built-in 4000 V TVS surge protection. The camera operates in temperatures from −40 °C to +60 °C.
TR-D2363WDZDL6 2.7-13.5.pdf
